Description

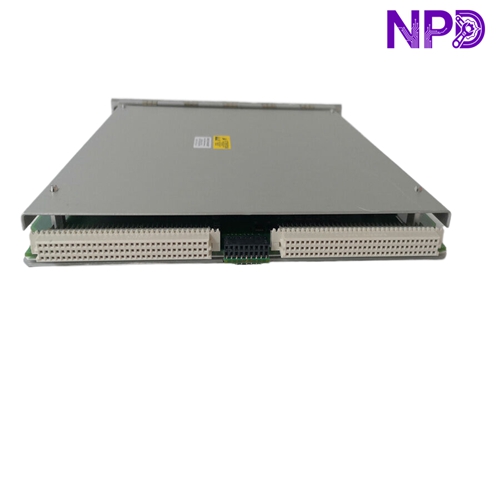

The Bently Nevada 3500/40M (176449-01) is a high-performance Proximitor Monitor designed for the 3500 Machinery Protection System. This module is engineered to provide essential machine protection by continuously comparing monitored parameters against configured alarm setpoints. It plays a critical role in vibration and position monitoring, ensuring the operational integrity of rotating machinery such as turbines, compressors, and pumps. With its advanced signal processing capabilities, the 3500/40M offers high-reliability data acquisition and robust fault detection in demanding industrial environments.
📋 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Bently Nevada 3500/40M Proximitor Monitor |
| Model Number | 176449-01 |
| Core Function | Radial vibration and thrust position monitoring |
| Usage | Turbine and rotating machinery protection |
| Input Channels | 4 channels of Proximitor input |
| Communication | 3500 Rack backplane interface |
| Power Rating | 6.9 W (Typical) |
| Dimensions | 241.3 mm × 24.4 mm × 163.3 mm |
| Weight | 0.91 kg (Approx.) |
| Origin | USA |
🚀 Recommended Series Models
These modules are commonly deployed within the 3500 Series Rack environment to support comprehensive condition monitoring and protection:
- 3500/42M (176449-02) – Proximitor/Seismic Monitor
- 3500/45 – Position Monitor
- 3500/22M – Transient Data Interface (TDI) Module
- 3500/15 – Power Supply Module
- 3500/05 – System Rack (Base unit)
- 3500/32M – 4-Channel Relay Module
- 3500/92 – Communication Gateway Module
- 3500/25 – Keyphasor Module
- 3500/50 – Tachometer Module
- 3500/53 – Electronic Overspeed Detection System
