Description
1. Product Description
⚙️ The Bently Nevada 3500/42M (176449-02) is a four-channel Proximitor/Seismic Monitor in the 3500 Machinery Protection System. It processes signals from compatible proximity probes, velocity transducers, and accelerometers to monitor rotating machinery vibration and position. The module compares measured values with configured alarm setpoints to support machinery condition monitoring and protection.
🔧 Typical applications include steam turbines, gas turbines, compressors, pumps, and other critical rotating equipment. The monitor is configured through compatible 3500 Rack Configuration Software. Verify the rear I/O module, transducer type, channel configuration, and system revision before installation.

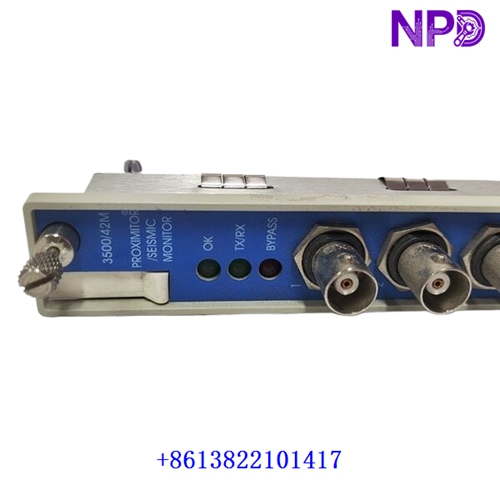

BENTLY 3500-42M 176449-02
2. Product Parameters
📋 Brand: Bently Nevada
Model: 3500/42M
Part Number: 176449-02
Series: 3500 Machinery Protection System
Product Name: Proximitor/Seismic Monitor
Number of Channels: 4
Supported Inputs: Compatible proximity probes, velocity transducers, and accelerometers
Typical Power Consumption: 7.7 W
Transducer Power Supply: -24 V DC for supported sensor configurations
Typical Accuracy: ±0.33% of full scale for specified measurements
Mounting: 3500 rack, front-slot monitor module
Dimensions: Approx. 24.2 × 2.5 × 24.2 cm; verify module revision
Weight: Approx. 0.8–0.9 kg net; verify actual unit
Place of Manufacture: To be confirmed
Country of Origin: Reported as USA; verify nameplate
Product Status: Verify stock condition
Discontinued: Confirm current lifecycle status with the manufacturer
