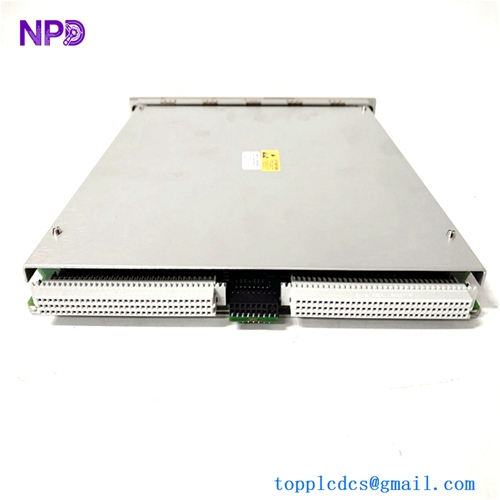

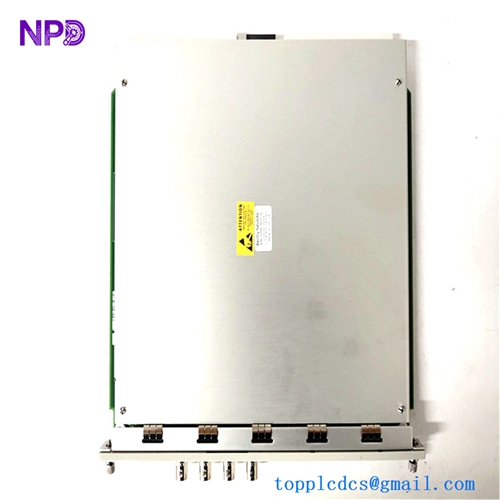

Bently Nevada 3500/45 Position Monitor module

Original price was: ¥9,999.00.Current price is: ¥6,400.00.

⚠️Product NO：3500/45

⚙️Brand： BENTLY NEVADA

🏚️Delivery time:  In stock

🆕Product status:   Brandnew

🥇Product situation: one year warranty, Origin of Manufacture
⚠️This image is not an actual product image and is for reference only!!!

Add to quote
Category: SKU: Bently Nevada 3500/45 Tag:
Felix Sales Manager
[email protected] +86 138 2210 1417 8613822101417
WhatsApp
QR
Chat Now
There are still many products that have not been released yet. If you have any products that you cannot find, you can ask me for a quote! Reminder: The product images published on this website are not actual real products and are for reference only!

Description

BENTLY 3500/45 is a 4-channel Position Monitor module for Bently Nevada 3500 series machinery protection systems.

Product Overview

The 3500/45 accepts inputs from proximity transducers, RPTs, DC/AC LVDTs, and rotary potentiometers to monitor axial position, differential expansion, case expansion, and valve position.
Each channel pair can be independently programmed for different position monitoring functions with user-defined alarm setpoints.

BENTLY 3500/45

BENTLY 3500/45

Key Specifications

Parameter Details
Channels 4 (programmable in pairs)
Input Types Proximitor, RPT, DC LVDT, AC LVDT, Rotary Potentiometer
Power Consumption 10.5 W typical
Operating Temp -30°C to +65°C
Dimensions 241.3 x 24.4 x 241.8 mm
Weight 0.91 kg (monitor), 0.20 kg (I/O module)
Measured Variables Thrust position, differential expansion, case expansion, valve position
Alarm Relays NOT OK, Alert, Danger per channel
Update Rate 100 ms or less

The datasheet details multiple expansion ramp configurations and transducer sensitivity settings.

Origin

Manufactured by Bently Nevada (Baker Hughes) in USA.

Applications

  • Turbine axial/thrust position monitoring.
  • Steam turbine differential expansion protection.
  • Valve position tracking in control systems.
  • Case expansion measurement for machinery protection.

Usage Method

  1. Install in full-height slot of 3500 rack with rear I/O module.
  2. Connect position transducers to I/O module terminals per channel.
  3. Configure channel functions (thrust, expansion, valve) via 3500 Rack Configuration Software.
  4. Set alarm thresholds, ramp rates, and NOT OK voting.
  5. Verify OK LED and test alarm relay operation.

Technical Notes

Supports complementary differential expansion (CIDE) and multiple ramp profiles for complex turbine applications.

Similar Models

Model Description
3500/42M Proximitor/Seismic interface module
3500/15 Power supply module
3500/22M Buffer/barrier module
3500/05 Servo display module
3500/46M Hydro gate position monitor
