Description

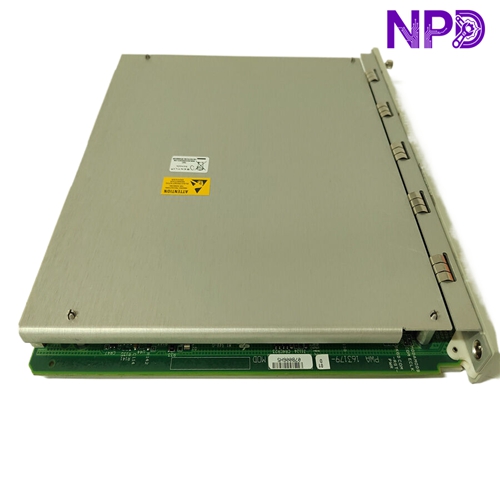

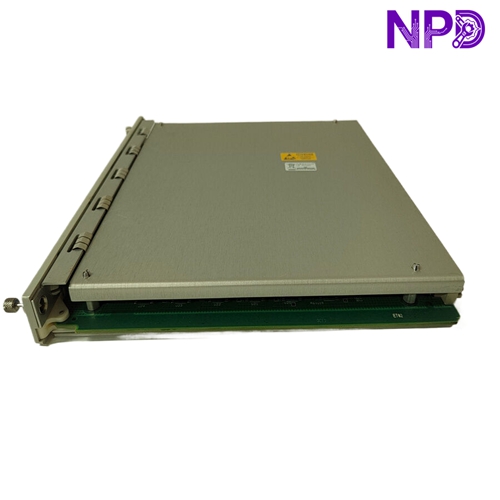

The Bently Nevada 3500/60 (163179-01) is a high-density Temperature Monitor Module designed to provide continuous monitoring of temperature data for rotating machinery. As part of the 3500 Machinery Protection System, this module accepts inputs from resistance temperature detectors (RTDs) and thermocouples, allowing for precise tracking of thermal trends. It is critical for identifying potential overheating in bearings, windings, or fluid systems before they lead to catastrophic equipment failure.
Technical Specifications ⚙️
| Feature | Specification |
|---|---|
| Product Type | Temperature Monitor Module |
| Series | Bently Nevada 3500 System |
| Part Number | 163179-01 |
| Input Channels | 6 Channels |
| Sensor Types | RTDs (Pt100, Ni100, etc.) and Thermocouples |
| Configuration | Software-selectable per channel |
| Isolation | Channel-to-channel and channel-to-earth isolation |
| Alarm Functions | Programmable alert and danger setpoints |
| Indicators | Front panel status LEDs (OK, TX/RX, Bypass) |
| Operating Temp | -30°C to +65°C (-22°F to +149°F) |
Recommended Bently Nevada 3500 Series Modules 📦
To complement the 3500/60 in a comprehensive machine protection rack, consider these related modules:
- 3500/61 (Temperature Monitor Module – alternative input configuration)
- 3500/62 (Process Variable Monitor)
- 3500/22M (Transient Data Interface – required for rack communication)
- 3500/15 (Power Supply Module)
- 3500/32M (4-Channel Relay Module)
- 3500/40M (Proximitor Monitor)
- 3500/42M (Proximitor/Seismic Monitor)
- 3500/50M (Tachometer Module)
- 3500/92 (Communication Gateway)
- 3500/94M (VGA Display Module)
