⚙️ Product Description

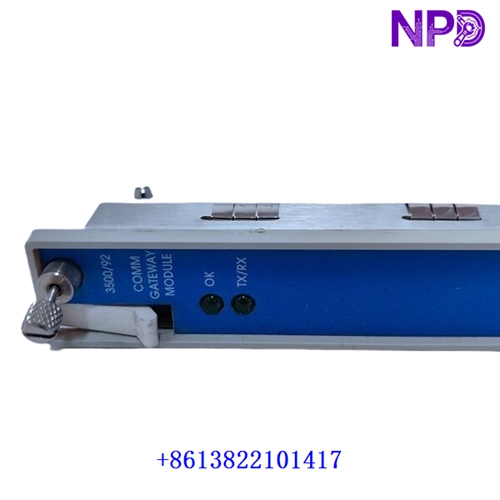

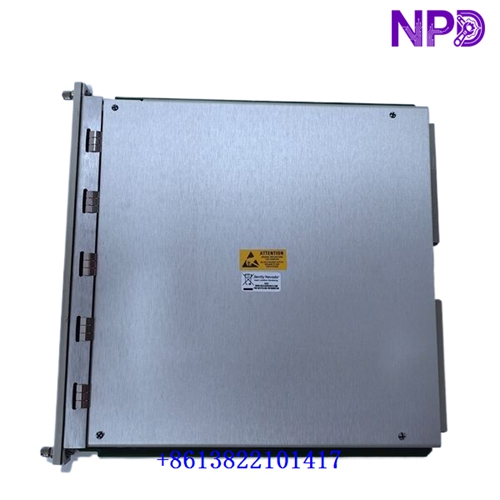

The Bently Nevada 3500/92 136180-01 Communication Gateway Module is designed for the 3500 Series Machinery Protection System. It provides communication between the monitoring rack and external plant control or monitoring systems, allowing rack measurements, module status information, and alarm conditions to be accessed by compatible DCS, PLC, and SCADA platforms. Supported communication options include Ethernet TCP/IP, Modbus/TCP, serial Modbus, and Bently Nevada proprietary communication protocols. The module also supports communication with compatible 3500 configuration and data acquisition software. Confirm the rear communication I/O module, interface type, and configuration before replacing an existing unit.
3500-92 136180-01
📋 Product Parameters
Product Datasheet
🏷️ Brand: Bently Nevada
🔢 Model: 3500/92
🆔 Part Number: 136180-01
📚 Series: 3500 Machinery Protection System
⚡ Product Name: Communication Gateway Module
🌍 Place of Manufacture: United States (verify against the individual unit)
📦 Product Status: New, New Open Box, or Used — confirm actual inventory condition
📐 Dimensions: Approximately 241 × 24.4 × 242 mm for the main module; verify the complete assembly dimensions
⚖️ Weight: Approximately 0.82–1.26 kg, depending on the listed assembly and configuration
🏭 Country of Origin: United States (confirm unit labeling)
🔌 Power Requirements: Rack-powered; typical consumption approximately 5.0 W with RS232/RS422 communication or 5.6 W with RS485 communication
🌐 Communication Interfaces: Ethernet 10BASE-T, with serial interfaces determined by the compatible rear I/O module
🔗 Supported Protocols: Modbus RTU, Modbus/TCP, Ethernet TCP/IP, and Bently Nevada proprietary protocol
🌡️ Operating Temperature: Approximately -30°C to +65°C for the main module
🛠️ Discontinued: Current lifecycle status requires confirmation
🔧 Recommended Bently Nevada Models
The following 15 models are related to machinery monitoring, rack communication, vibration measurement, and protection applications. Confirm compatibility with the installed 3500 rack before ordering.
- 3500/90 — Communication gateway from an earlier generation of the 3500 system.
- 3500/91 — Communication module family; verify the exact configuration.
- 3500/93 — Display interface module for compatible 3500 monitoring systems.
- 3500/94 — Display module family; confirm the specific part number.
- 3500/05 — System rack for mounting compatible 3500 modules.
- 3500/15 — Power supply module for the 3500 rack.
- 3500/20 — Rack interface module for system communication and rack management.
- 3500/22M — Transient Data Interface module for compatible monitoring applications.
- 3500/25 — Enhanced Keyphasor module for rotational reference signals.
- 3500/32 — Four-channel relay module for monitoring and alarm logic.
- 3500/42M — Proximitor Seismic Monitor for machinery vibration and position monitoring.
- 3500/45 — Position Monitor for compatible machinery measurement applications.
- 3500/50 — Tachometer module for rotational speed monitoring.
- 3500/60 — Temperature Monitor for machinery condition monitoring.
- 3500/65 — Temperature Monitor for compatible industrial monitoring systems.
These models support different functions within the Bently Nevada 3500 platform and are not direct substitutes for the 3500/92. Check rack configuration, firmware, communication I/O hardware, and required protocols before installation.
