Description
The Bently Nevada 60M100-00 is a specialized data acquisition and interface component designed for the System 1 Condition Monitoring and Diagnostic platform. It facilitates the bridge between machinery protection hardware and advanced predictive maintenance software.
Product Parameters (Datasheet)
- Model Number: 60M100-00
- Device Type: Software Interface / Data Acquisition Module
- System Compatibility: Bently Nevada System 1 / 3500 Series Rack
- Communication Interface: High-speed Ethernet or serial link (configuration dependent)
- Data Sampling: Support for both static (DC) and dynamic (AC/waveform) data
- Power Supply: Typically powered via the system backplane or external DC source
- Isolation: Optical and galvanic isolation for signal integrity
- Status Indicators: Front-panel LEDs for Power, Communication, and System Health

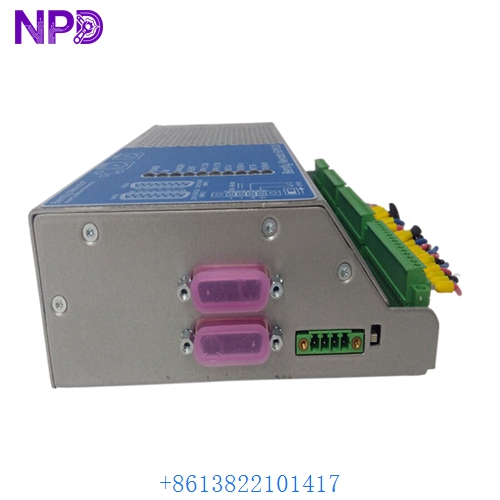

BENTLY 60M100-00

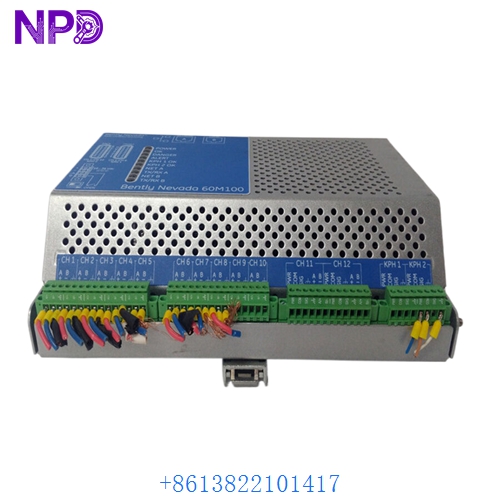

BENTLY 60M100-00

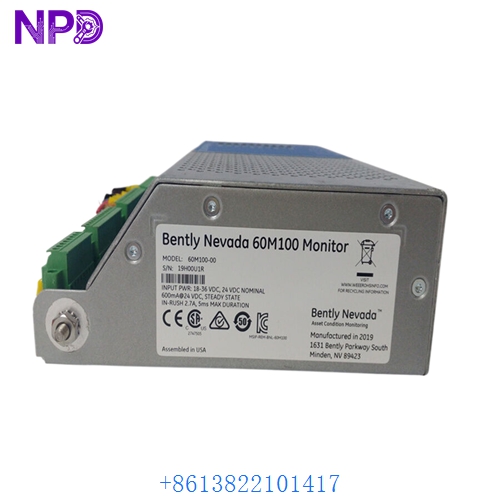

BENTLY 60M100-00
Country of Origin
This instrumentation component is manufactured by Bently Nevada (a Baker Hughes business) in the United States, engineered specifically for the reliability demands of heavy industrial machinery monitoring.
Application Fields
The 60M100-00 is a critical link for digital transformation in heavy industry:
- Predictive Maintenance: Feeding high-resolution vibration and position data into System 1 software for trend analysis.
- Oil & Gas: Monitoring the health of large centrifugal compressors and turbines in remote locations.
- Power Generation: Real-time diagnostics for steam and gas turbine-generator sets.
- Mining & Metals: Oversight of high-criticality assets such as crushers and sag mills.
Product Usage Instructions
- Installation: Mount the module in the designated slot of the interface rack. Ensure all pins are aligned before applying pressure to avoid damaging the backplane.
- Network Configuration: Assign a static IP address to the module through the Bently Nevada configuration software to allow the System 1 server to recognize the device.
- Signal Mapping: Link the physical inputs from the 3500 machinery protection rack to the virtual points within the monitoring software.
- Grounding: Ensure the rack is properly grounded to a common instrumentation earth to prevent electrical noise from corrupting dynamic waveforms.
- Firmware Updates: Regularly check for firmware compatibility when upgrading System 1 software versions to ensure full feature support.
Product Technical Description
The 60M100-00 acts as a high-fidelity translator. Technically, it takes the processed signals from the machinery protection hardware and packages them into digital formats suitable for long-term storage and advanced spectral analysis. Unlike basic protection modules that only trigger alarms, the 60M100-00 is designed to capture the “rich” data—such as orbit plots, time-base waveforms, and FFT spectrums—which engineers use to identify specific fault types like unbalance, misalignment, or bearing wear.
Q&A (Common Questions)
Q: Does the 60M100-00 replace the 3500/22M Transient Data Interface? A: They often work in conjunction. While the 3500/22M handles rack-level data, the 60M series is often part of the broader external interface strategy for software-heavy environments.
Q: Can this module be used for standalone protection? A: No, the 60M100-00 is a monitoring and interface module. It should not be used as the primary safety-critical tripping device.
Q: What does the “-00” suffix indicate? A: In Bently Nevada nomenclature, “-00” typically refers to the base configuration or a standard mounting option without specialized modifications.
Q: Is it compatible with non-Bently Nevada software? A: It is natively designed for System 1. However, some data can be shared with third-party systems via Modbus or OPC protocols depending on the configuration of the associated gateway.
Similar Model Recommendations
- Bently Nevada 3500/22M (Transient Data Interface)
- Bently Nevada 3500/92 (Communication Gateway)
- Bently Nevada 149392-01 (Related Interface Board)
- Bently Nevada 3500/25 (Keyphasor Module)
- Bently Nevada 3500/15 (Power Supply Module)
For professional technical assistance or to procure the Bently Nevada 60M100-00, please contact our automation and instrumentation specialists.
