Description

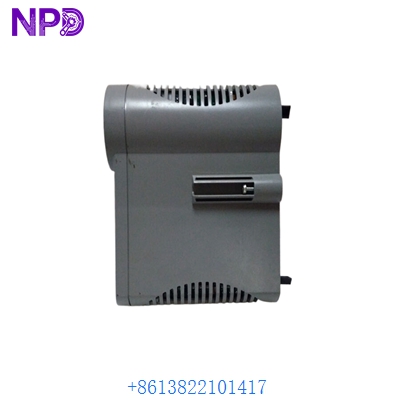

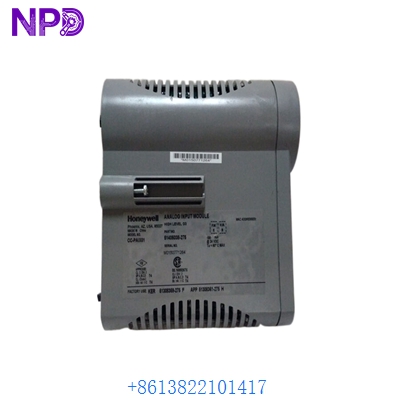

The CC-PAIX01 (Part Number 51405038-275) is a high-performance analog input module designed for integration within industrial control architectures, providing 16 channels of precise data acquisition for field instrumentation and sensor monitoring.
Technical Parameters
- Model Number: CC-PAIX01 / 51405038-275
- Input Channels: 16 Differential Channels
- Input Signal: 4-20 mA DC (Standard)
- Resolution: 16-bit Analog-to-Digital conversion
- Isolation: Galvanic isolation between channels and system logic
- Data Rate: High-speed scanning for real-time monitoring
Dimensions & Weight
- Width: 45 mm
- Height: 120 mm
- Depth: 115 mm
- Net Weight: 0.48 kg (1.05 lbs)
Environmental Certifications
- Compliance: CE Marked, CSA Certified
- Hazardous Area: Class I, Division 2 / ATEX Zone 2
- Operating Temp: -40°C to +70°C
- Coating: Conformal coating (G3) for protection against harsh environments
Application Fields
- Turbine and rotating machinery monitoring
- Industrial process control systems
- Large-scale power generation facilities
- Petrochemical and refinery automation
Product Q&A
- Q: Is the 51405038-275 hardware compatible with redundant IOTA bases?
- A: Yes, it is designed to work in both non-redundant and redundant configurations when paired with the correct termination assembly.
- Q: Does this module support HART protocol pass-through?
- A: Yes, the CC-PAIX01 variant supports digital HART communication for instrument diagnostics.
- Q: What is the primary difference between the -175 and -275 versions?
- A: The -275 version typically denotes a specific revision or manufacturing series designed for extended reliability in specific control backplanes.
