Description

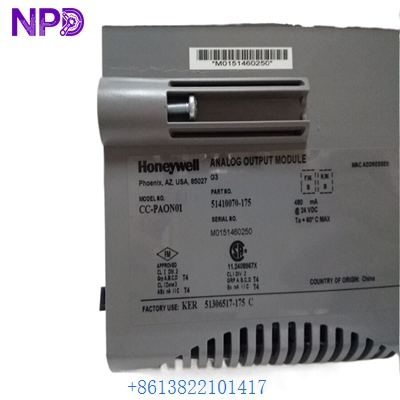

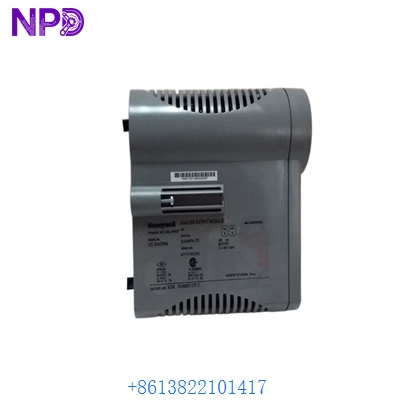

The CC-PAON01 (Part Number 51410070-175) is a high-density analog output module designed for industrial control systems, providing 16 channels of 4-20 mA signals to drive final control elements such as valves, actuators, and positioners.
Technical Parameters
- Model Number: CC-PAON01 / 51410070-175
- Output Channels: 16 Single-ended channels
- Output Signal: 4-20 mA DC
- Digital to Analog Resolution: 12-bit
- HART Protocol: Supports HART digital communication pass-through
- Response Time: < 100 ms to 99% of full scale
Dimensions & Weight
- Width: 45 mm
- Height: 120 mm
- Depth: 115 mm
- Net Weight: 0.46 kg (1.01 lbs)
Environmental Certifications
- Compliance: CE Marked, CSA Certified
- Hazardous Area: Class I, Division 2 / ATEX Zone 2
- Operating Temp: -40°C to +70°C (-40°F to +158°F)
- Coating: G3 Conformal coating for protection against corrosive gases
Application Fields
- Control valve and damper positioning
- Variable speed drive (VSD) speed referencing
- Industrial boiler and furnace control
- Water and wastewater chemical dosing
Product Q&A
- Q: Can this module be used in redundant pairs?
- A: Yes, it is designed for both non-redundant and redundant configurations via the appropriate IOTA.
- Q: What is the maximum load resistance for each channel?
- A: Typically, it supports up to 600 Ohms at 24V DC loop power.
- Q: Does the 51410070-175 version include the I/O Termination Assembly (IOTA)?
- A: No, the 51410070-175 refers to the electronic module itself; the IOTA must be ordered separately based on mounting needs.
