Description

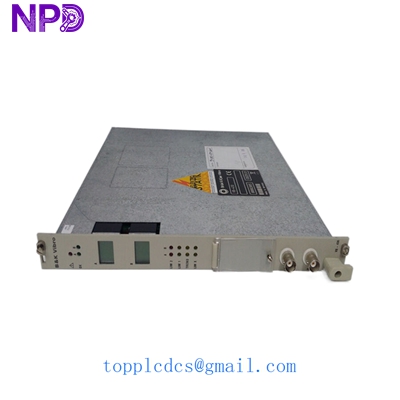

- Model: B&K C002292.01 (9100131600) VB-430
- Brand: Brüel & Kjær (B&K) – Denmark
- Series: Vibro-Martrix / Machinery Monitoring Series
- Core Function: High-speed vibration analysis and signal processing BOARD
- Condition: New Surplus (Original Unit, Never Commissioned)
- Product Type: Vibration Signal Processing Module
- Key Specs: Multi-channel input | High-frequency sampling | Integrated DSP
- Input Channels: 4 Independent Vibration Channels
- Sampling Rate: Up to 100 kHz per channel
- Signal Support: Accelerometers, Proximity Probes, and Velometers
- Communication Interface: Proprietary Backplane Bus
- Operating Temperature: 0 to +60 °C (32 to 140 °F)
- Storage Temperature: -40 to +85 °C (-40 to 185 °F)
- Relative Humidity: 5% to 95% non-condensing
- Compliance: CE, RoHS

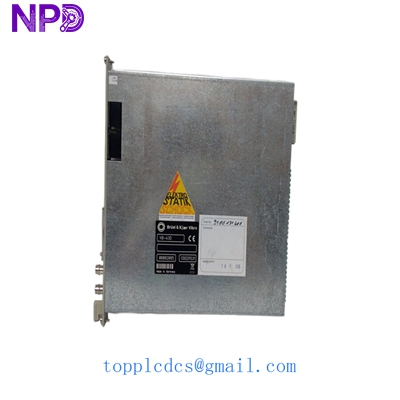

B&K C002292.01 9100131600 VB-430
Installation & Configuration Guide
Phase 1: Preparation (Pre-Installation)
Safety First:
- Ensure the machinery protection system is bypassed to prevent accidental trips during the swap.
- Confirm the rack power is isolated.
- Wear a grounded ESD (Electrostatic Discharge) wrist strap; vibration boards are highly sensitive to static.
Tools & Backup:
- Small flat-head screwdriver (for terminal blocks).
- Fluke 87V Multimeter (for loop checking).
- Crucial: Record the existing DIP switch positions on the side of the old C002292.01 board. I recommend taking a high-resolution photo.
Phase 2: Removal & Installation
Steps:
- Unseat the Module: Loosen the top and bottom captive screws. Gently pull the module out of the rack using the ejector tabs. Do not force it; it should slide out smoothly.
- Transfer Settings: Match the DIP switches and jumpers on the new VB-430 to the original settings. If these are incorrect, the rack controller will not recognize the node.
- Insertion: Align the board with the rack guides and push firmly until the backplane connectors seat completely. Tighten the captive screws to ensure a solid ground path.
- Wiring: Reconnect sensor leads. Double-check the shield grounding to prevent signal noise.
Phase 3: Commissioning
- Power-Up: Switch on the rack power.
- LED Check:
- OK (Green): Module is healthy.
- FAULT (Red): Check the backplane connection or configuration mismatch.
- Verification: Use the monitoring software to verify signal levels from the connected sensors. Ensure the “Gap Voltage” or “Bias” is within the expected range for your specific probes.
B&K C002292.01 9100131600 VB-430
Customer Cases & Industry Applications
Case 1: Sudden Component Failure in a Steam Turbine
Situation: A major power plant in Southeast Asia experienced a sudden “Card Fault” on their B&K vibration rack. The VB-430 module responsible for monitoring the turbine’s high-pressure bearing failed. Task: Without real-time vibration data, the plant had to run “blind,” risking a catastrophic failure if an imbalance occurred. The lead time from the OEM was quoted at 14 weeks due to the part’s obsolete status. Action: We supplied a New Surplus C002292.01 from our warehouse. To ensure the customer felt confident, we provided a 24-hour soak-test report and photos of the original factory seals. Result: The part arrived via DHL in 3 days. The system was back online within hours of delivery. They avoided an estimated $120,000 per day in potential downtime losses.
Case 2: Strategic Stocking for Aging Infrastructure
Situation: A paper mill in Canada uses older B&K systems to monitor their critical rollers. Task: The maintenance manager knew the 9100131600 was becoming harder to find. They didn’t want to spend $200k on a full system upgrade yet. Action: In my experience, it’s smarter to buy the spare before the alarm sounds. We negotiated a package deal for two VB-430 boards. Result: Six months later, one of their original boards failed during a power surge. Because the spare was sitting in their climate-controlled crib, they swapped it in 20 minutes. No production was lost.
B&K C002292.01 9100131600 VB-430
Frequently Asked Questions (FAQ)
Q: Is the C002292.01 the same as the 9100131600? A: Yes. C002292.01 is typically the hardware revision or board number found on the PCB, while 9100131600 is the B&K ordering or assembly part number. They are interchangeable for the VB-430 module function.
Q: Can I replace this module while the system is running? A: I wouldn’t recommend it. While some racks claim “hot-swap” capability, a slight misalignment during insertion can cause a bus glitch that might trip the entire rack. It’s much safer to power down for 5 minutes.
Q: Why should I buy “New Surplus” instead of a cheaper used unit? A: Honestly, vibration monitoring is about safety. A used board has been subjected to years of heat and vibration. Electrolytic capacitors on these boards eventually dry out. Our New Surplus units have zero hours of operational wear, giving you a full lifecycle.
Q: Do you offer a test report? A: Absolutely. We use a specialized test rig to simulate sensor inputs and verify communication. We can send you a PDF of the Test Report or even a short video of the module powering up before we ship it.
Q: What if the module doesn’t work when I install it? A: We offer a 15-day “dead-on-arrival” (DOA) replacement window. If the module is faulty, we swap it out immediately. After that, you are covered by our standard 12-month warranty.
