Description

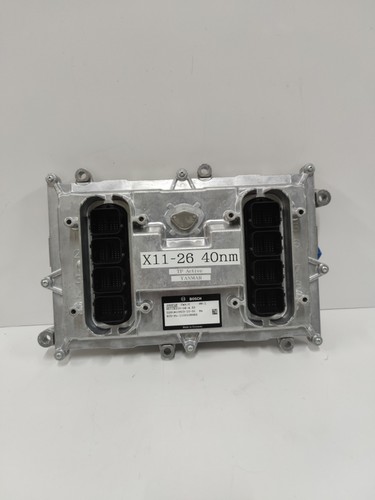

The BOSCH MD1CE200-LE-4.50 is a high-performance, industrial-grade Electronic Engine Control Unit (ECU) designed for large engines used in demanding off-highway, marine, and power generation applications. It acts as the central intelligence for engine management, orchestrating fuel supply, air intake, and injection timing to ensure optimal combustion efficiency and emissions compliance.
Technical Specifications
- Model Number: MD1CE200-LE-4.50
- Brand: Bosch
- Product Type: Electronic Engine Control Unit (ECU)
- Operating Voltage: Optimized for 24V DC systems, with support for booster voltage ranges (48V to 90V) for advanced injection hardware.
- Engine Compatibility: Manages diesel, gas, and dual-fuel configurations; supports high cylinder counts when units are networked.
- Environmental Range: Engineered for operation in extreme conditions, typically -40°C to +85°C.
- Core Architecture: Multi-core microcontroller optimized for high-speed powertrain management and real-time processing.
Core Functionality
- Precision Injection Management: Utilizes advanced “Smart” injector technology, providing micro-second resolution for fuel dosing, which minimizes emissions while maximizing fuel economy.
- Integrated Control: Serves as the primary driver for fuel systems, including gas admission valves in dual-fuel setups, ensuring seamless synchronization between fuel and air intake.
- System Versatility: Equipped with integrated pressure compensation and modular plug-in architecture for reliability and ease of installation in varied industrial environments.
Maintenance & Integration
- Calibration Requirements: As a highly specialized component, this ECU often requires specific software calibration or flashing to match the target engine’s configuration.
- System Compatibility: Designed for use with Bosch common-rail injectors, high-pressure fuel pumps, and precision sensors designed for closed-loop combustion control.
Important Note: This component manages critical engine performance and safety parameters. Always consult the original manufacturer’s technical service documentation for specific wiring pin-outs, installation guidelines, and software programming procedures to ensure the unit is correctly integrated with your engine management system.
