1. Product Description

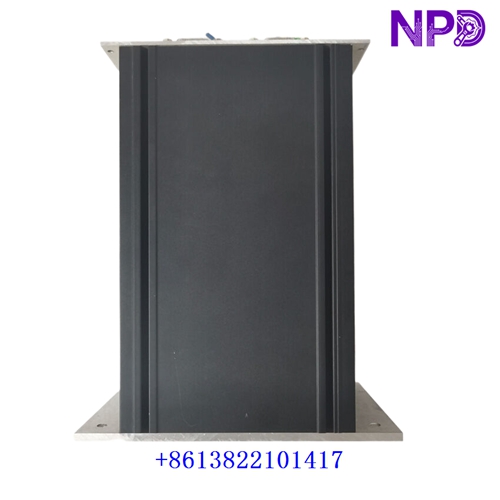

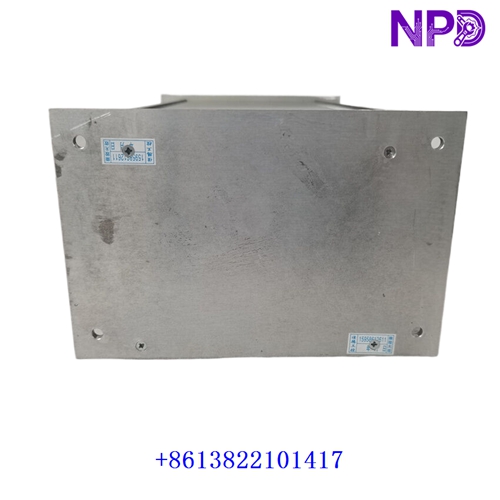

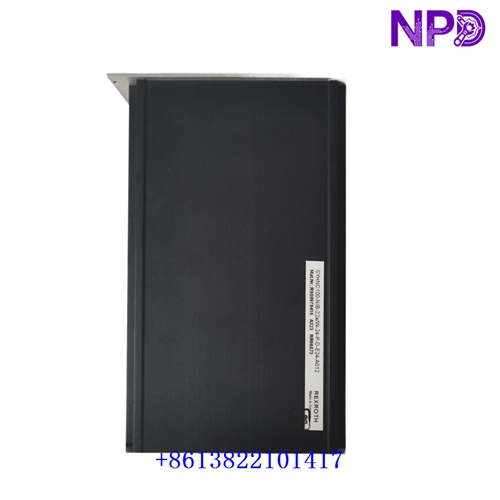

The Bosch Rexroth SYHNC100-NIB-22aW-24-P-D-E24-A012 is a digital closed-loop axis control unit in the SYHNC100-NIB family, associated with the Rexroth VT-HNC control technology. It is designed for hydraulic axis control applications requiring accurate position and motion regulation, including punching, nibbling, forming, and industrial press equipment.
The controller supports position-feedback processing and communication with higher-level control systems. Depending on the configuration, the SYHNC100-NIB family supports analog position sensors such as LVDTs, incremental position measurement, digital I/O, and PROFIBUS-DP fieldbus communication. The unit requires a compatible control system and correctly configured sensors and actuators. Verify the full type code and hardware revision before ordering or commissioning.
SYHNC100-NIB-22aW-24-P-D-E24-A012
2. Product Parameters — Datasheet
Brand: Bosch Rexroth
Model: SYHNC100-NIB-22aW-24-P-D-E24-A012
Product Number: R900978416 (reported in supplier catalogs; verify against the nameplate)
Product Name: Digital Axis Controller / Closed-Loop Control Electronics
Product Series: SYHNC100-NIB / VT-HNC
Product Type: Hydraulic Axis Control Unit
Main Function: Closed-loop position and motion control
Application: Punching, nibbling, forming, shearing, and industrial hydraulic machinery
Control Axes: One- or two-axis configurations within the SYHNC100-NIB family; confirm the exact configuration
Power Supply: 24 VDC is reported for this configuration; confirm the nameplate and applicable manual
Position Feedback: Analog position measurement, including LVDT, or incremental measurement, depending on configuration
Communication: PROFIBUS-DP and digital process interfaces are supported within the product family; confirm installed options
Programming and Diagnostics: WIN-PED configuration and diagnostic software for supported versions
Dimensions: Not confirmed for the exact configuration
Weight: Not confirmed for the exact configuration
Place of Manufacture: Not confirmed for the individual unit
Country of Origin: Verify from the product label
Product Status: Depends on supplier stock and whether the unit is new, surplus, or refurbished
Discontinued: Current lifecycle status of this exact configuration is not confirmed
Compatibility: Confirm the axis application, sensor type, I/O configuration, fieldbus interface, and firmware requirements before replacement
3. Recommended Bosch Rexroth Models
The following models are related Rexroth control products and hydraulic automation components for comparison and spare-parts sourcing. They are not guaranteed direct replacements for SYHNC100-NIB-22aW-24-P-D-E24-A012.
- Bosch Rexroth VT-HNC100-1-23/W-08-P-0 — Digital axis controller for hydraulic position-control applications.
- Bosch Rexroth VT-HNC100-1-22/W-08-C-0 — Related VT-HNC100 digital control variant; verify configuration.
- Bosch Rexroth VT-HNC100-2-30/P-I-00/G02 — Related HNC100 control electronics designation.
- Bosch Rexroth SYHNC100-NIB-23W-24-P-D-E23-A012 — Related SYHNC100-NIB controller variant with a different type-code configuration.
- Bosch Rexroth SYHNC100-NIB-22A/W-24-P-D-E23-A012 — Related controller variant; check the interface and revision details.
- Bosch Rexroth SYHNC100-NIB-2X/W-24-P-D-E23-A012 — Related NIB-series configuration; verify the exact suffix.
- Bosch Rexroth VT-HNC100 — Digital hydraulic axis controller family for closed-loop motion applications.
- Bosch Rexroth VT-HNC100-1 — Single-axis controller family designation; verify the complete order code.
- Bosch Rexroth VT-HNC100-2 — Related controller family designation; verify the axis configuration.
- Bosch Rexroth VT-HNC100-NIB — NIB control electronics family for specialized hydraulic-axis applications.
- Bosch Rexroth VT-HNC100-1-23/M-08-P-0 — Related digital axis controller configuration.
- Bosch Rexroth VT-HNC100-1-23/W-08-0-0 — Related VT-HNC controller configuration for comparison.
- Bosch Rexroth VT-HNC100-1-22/W-08-P-0 — Related controller variant; confirm the full catalog number.
- Bosch Rexroth VT-HNC100-1-23/W-08-C-0 — Related HNC100 configuration; verify interfaces and application requirements.
- Bosch Rexroth VT-HNC100-1-23/W-08-P-0, R900955334 — Digital axis controller listed under this order code; confirm the part number against the equipment documentation.
For a replacement, match the complete SYHNC100-NIB type code, order number, connector arrangement, sensor interface, fieldbus configuration, and hardware revision. Similar model names alone do not establish interchangeability.
