Description
📋 Product Description

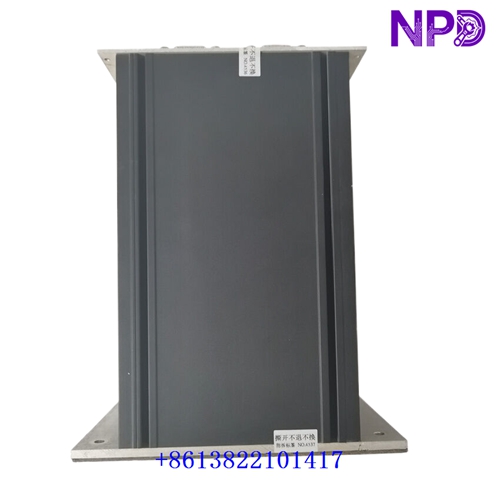

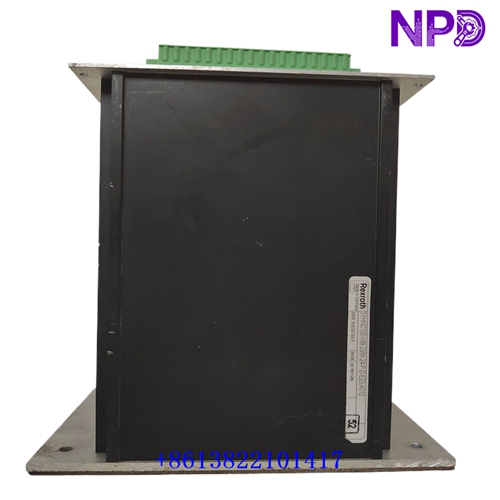

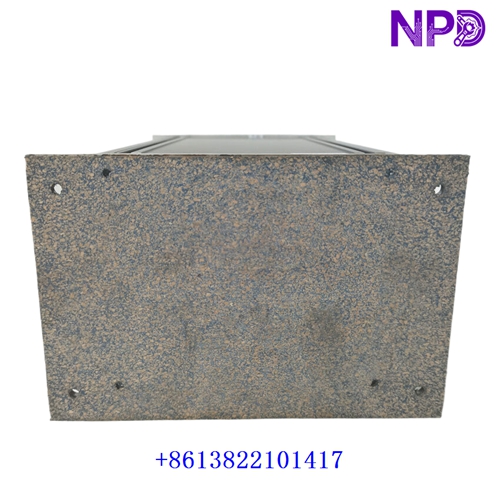

The Bosch Rexroth SYHNC100-NIB-23/W-24-P-D-E23-A012 is a digital closed-loop axis controller in the SYHNC100-NIB family, designed for precision hydraulic motion control in industrial machinery. It supports position and process control for hydraulic axes used in applications such as punching, nibbling, forming, and other demanding machine operations. The controller interfaces with position feedback devices and higher-level automation systems, allowing coordinated control of hydraulic actuators and related equipment. The model designation includes a 24 V DC supply option and an E23 communication configuration. The complete order number is R900978416. Verify the installed firmware, feedback sensor, I/O configuration, and fieldbus requirements before selecting a replacement.
SYHNC100-NIB-23W-24-P-D-E23-A012
⚙️ Product Parameters & Datasheet
- Brand: Bosch Rexroth
- Model: SYHNC100-NIB-23/W-24-P-D-E23-A012
- Order Number: R900978416
- Series: SYHNC100-NIB / Digital Hydraulic Axis Controller
- Product Name: Digital Closed-Loop Hydraulic Axis Controller
- Place of Manufacture: Verify from the individual unit’s nameplate
- Product Status: New Surplus / New – Open Box / Refurbished / Pre-Owned; confirm actual condition
- Dimensions: Approximately 220 × 190 × 120 mm; verify the exact mounting and enclosure dimensions
- Weight: Approximately 2.0 kg
- Country of Origin: Confirm from the product label
- Power Requirements: 24 V DC nominal; verify the permitted input range in the applicable manual
- Control Function: Digital closed-loop hydraulic axis control
- Feedback Interfaces: Analog position sensor and incremental position feedback, depending on configuration
- Communication Interface: E23 interface; confirm the exact supported protocol and configuration
- Digital I/O: Configuration-dependent; verify the terminal assignment and available channels
- Engineering Software: WIN-PED for supported configuration and diagnostics
- Protection Rating: Verify the applicable hardware documentation
- Discontinued: Current lifecycle status requires confirmation with Bosch Rexroth
🔧 Recommended Bosch Rexroth Models
- SYHNC100-NIB-22A/W-24-P-D-E23-A012 — Related SYHNC100-NIB controller variant; verify the full designation.
- SYHNC100-NIB-24-P-D-E23-A012 — Related controller configuration; confirm compatibility.
- SYHNC100-NIB-2X/W-24-P-D-E23-A012 — Related SYHNC100-NIB variant; verify the axis configuration.
- SYHNC100-NIB-23/W-08-P-D-E23-A012 — Related controller variant with a different supply option.
- SYHNC100-NIB-23/W-24-P-D-E24-A012 — Similar controller designation; confirm the communication option.
- VT-HNC100-1-23W-08-P-0 — VT-HNC100 digital hydraulic controller.
- VT-HNC100-1-23M-08-P-0 — Related VT-HNC100 controller variant.
- VT-HNC100-1-22W-08-C-0 — Digital hydraulic controller; verify its control configuration.
- VT-HNC100-2-30/P-I-00/G02 — Related digital hydraulic axis controller.
- VT-HNC100-2-30/P-0 — VT-HNC100 controller family candidate; verify the exact ordering code.
- VT-HNC100-2-30/P-0/G02 — Related controller variant; confirm hardware compatibility.
- VT-HNC100-1-23W-08-C-0 — Related controller designation; verify supply and interface requirements.
- VT-HNC100-1-23M-08-C-0 — VT-HNC100 variant for comparison.
- VT-HNC100-2-30/P-I-00 — Related controller family option; confirm the complete part number.
- SYHNC100-NIB — Bosch Rexroth digital closed-loop control electronics family.
These are related Bosch Rexroth hydraulic-control products and configuration candidates, not guaranteed direct replacements. Match the complete order number, supply voltage, axis configuration, feedback interface, communication option, and firmware before ordering.
