Description
-
Technical Parameters
- Part Number: 7DO135.70
- Manufacturer: B&R Industrial Automation
- Series: System 2005
- Output Channels: 16 Digital Outputs
- Output Type: Transistor (Source)
- Rated Voltage: 24 VDC
- Output Current: 0.5 A per channel
- Total Current: Max. 8 A per module
- Isolation: Optocoupler isolation (Field to Backplane)
Product Description
The B&R 7DO135.70 is a high-density digital output module designed for the B&R System 2005 PLC family. It provides 16 transistor outputs for switching 24 VDC loads such as solenoids, contactors, and signal lamps.
The module is engineered for high-speed switching and reliability, featuring integrated short-circuit and overload protection. Each channel is equipped with optical isolation to protect the internal system bus from field-level electrical noise and surges. The 7DO135.70 is widely used in legacy B&R control architectures for precise and robust machine control.

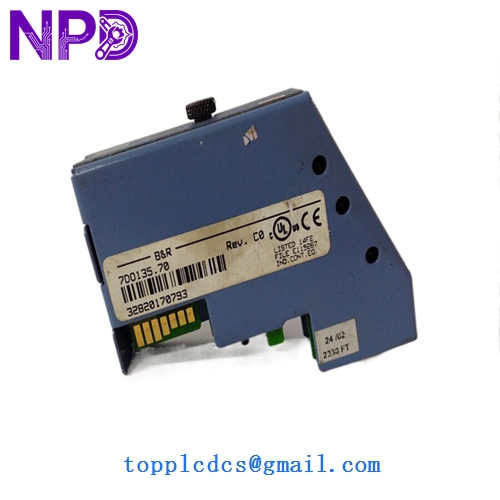

B&R 7DO135.70

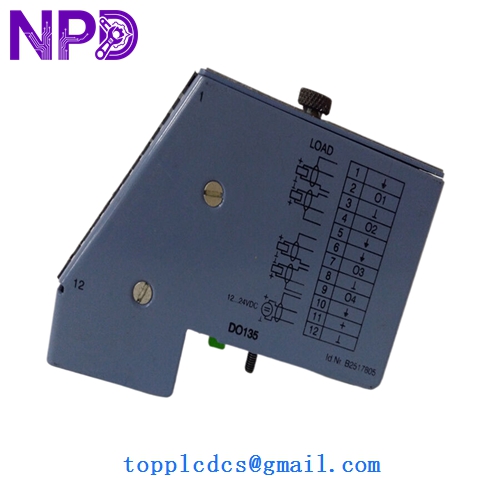

B&R 7DO135.70
B&R 7DO135.70
Application Areas
- Machine Tooling: Controlling pneumatic valves and hydraulic solenoids in CNC environments.
- Packaging Machinery: High-speed triggering of actuators and sorting gates.
- Assembly Lines: Managing indicator lights and interlock relays across distributed conveyor systems.
- Material Handling: Interfacing with motor starters and braking systems in automated warehouses.
Product Specifications
- Weight: 0.22 kg
- Dimensions: 115 mm x 103 mm x 22 mm
- Status Indicators: LED display for each output channel
- Power Consumption: Max. 1.5 W (Internal)
- Country of Origin: Austria
Operating Precautions
- Load Limits: Ensure the total simultaneous current across all 16 channels does not exceed the 8A limit to prevent thermal damage to the internal bus connectors.
- Short Circuit Protection: While the module features electronic protection, a fast-acting external fuse is recommended for the main 24 VDC supply to provide secondary safety for the wiring harness.
- Inductive Loads: When switching highly inductive loads (large coils), ensure external suppression diodes or RC snubbers are used if the internal protection is insufficient for the specific flyback voltage.
- Mounting: Ensure the module is securely latched into the System 2005 backplane. Loose connections can lead to intermittent “I/O Bus” errors and unexpected machine behavior.
