📋 Product Description

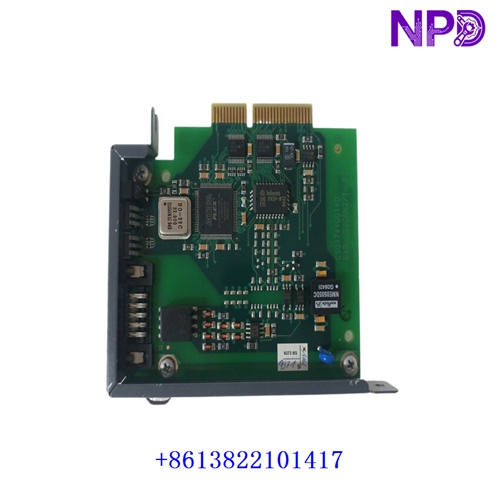

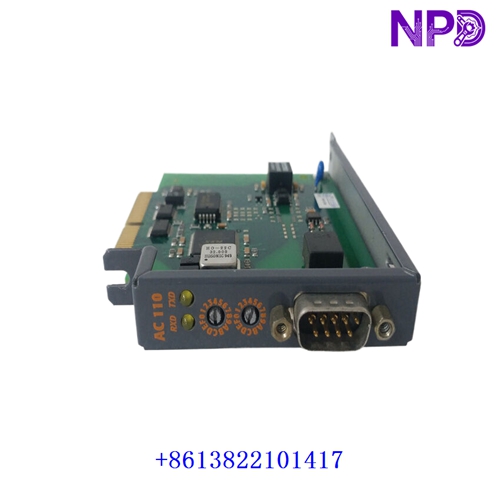

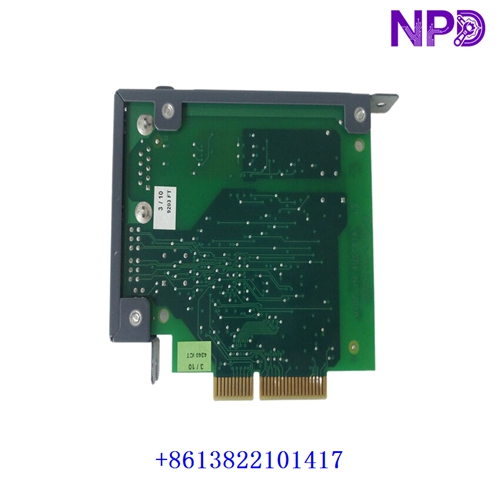

The B&R 8AC110 is an ACOPOS plug-in communication module designed to provide a CAN interface for compatible B&R ACOPOS servo drives. It enables communication and parameter configuration between the servo drive and a connected automation controller in standard motion-control applications. The module installs in Slot 1 and provides an electrically isolated CAN interface with a 9-pin male D-sub connector and RXD/TXD status indicators. The exact suffix, such as 8AC110.60-1, 8AC110.60-2, or 8AC110.60-3, should be confirmed before ordering because hardware identification and revision details can differ.
Typical applications include industrial machinery, packaging equipment, CNC systems, and automated production lines. Before replacing the module, verify the servo-drive model, connector configuration, CAN network settings, node address, and bus termination. The 8AC110 family is a legacy product line, so availability and lifecycle status should be confirmed for the exact variant.
8AC110
⚙️ Product Parameters
Product Datasheet
🏷️ Brand: B&R Automation
🔢 Model: 8AC110
📦 Series: ACOPOS Plug-in Modules
🖥️ Product Name: CAN Interface Communication Module
🌍 Place of Manufacture: Not verified; check the product label
📌 Product Status: Legacy product; confirm whether New, New Open Box, or Used
📐 Dimensions: Exact dimensions depend on the specific variant; consult the mechanical drawing
⚖️ Weight: Approximately 0.08 kg, depending on the variant
🏭 Country of Origin: To be confirmed from the product label
🔌 Power Requirements: Supplied by the compatible ACOPOS drive; maximum module power consumption 0.7 W
🛠️ Discontinued: Some variants are listed as discontinued; confirm the lifecycle status of the exact part number
🔗 Interface: 1 × electrically isolated CAN interface
🔌 Connector: 9-pin male D-sub (DSUB)
📡 Communication Speed: 500 kbit/s
📏 Maximum CAN Bus Distance: 60 m
💡 Status Indicators: RXD and TXD LEDs
🌡️ Operating Temperature: Nominal 5 to 40°C; maximum 55°C, subject to the drive’s specifications
🔧 Recommended B&R Models
The following 15 models are related B&R ACOPOS communication, encoder, and drive interface modules. They serve different functions and should not be treated as automatic replacements for the 8AC110.
- 8AC110.60-1 — ACOPOS CAN interface module, earlier variant.
- 8AC110.60-2 — ACOPOS CAN interface module with a 9-pin D-sub connector.
- 8AC110.60-3 — ACOPOS CAN interface module, later variant.
- 8AC112.60-1 — ACOPOS POWERLINK Ethernet interface module.
- 8AC114.60-2 — ACOPOS POWERLINK V2 interface module.
- 8AC120.60-1 — ACOPOS EnDat 2.1 encoder interface module.
- 8AC121.60-1 — ACOPOS HIPERFACE encoder interface module.
- 8AC122.60-3 — ACOPOS resolver interface module.
- 8AC125.60-1 — ACOPOS BiSS-C encoder interface module.
- 8AC130.60-1 — Related ACOPOS interface option; verify the exact function before ordering.
- 8AC140.60-1 — Related ACOPOS plug-in module; confirm the exact product designation.
- 8V1010.00-2 — ACOPOS servo drive for compatible motion-control systems.
- 8V1022.00-2 — ACOPOS servo drive for supported automation applications.
- 8V1045.00-2 — ACOPOS servo drive for compatible industrial machinery.
- 8BVI — B&R ACOPOSmulti drive family for modular motion-control applications.
For procurement, confirm the complete part number and verify compatibility with the installed ACOPOS drive and CAN network configuration before selecting an alternative.
