Description
Product Specifications
- Origin: United States / Mexico
- Weight: 6.35 lbs (2.88 kg)
- Dimensions: 6.12 x 6.12 x 5.09 inches (155.4 x 155.4 x 129.3 mm)
- Port Configuration: 16 x 10/100/1000 Mbps RJ45 ports + 4 x 1G Combo (SFP/RJ45) uplink ports.
- Operating System: Cisco IOS Software with LAN Base (E) feature set.
- Forwarding Bandwidth: 20 Gbps (Full duplex)
- Installation: DIN-rail mountable with ruggedized IP30 rated aluminum chassis.
The Cisco IE-4000-16GT4G-E is a high-density, Layer 2 industrial managed switch designed specifically for harsh environments in manufacturing, energy, and transportation sectors. This model provides superior bandwidth with all-Gigabit ports, supporting high-definition video and data-intensive industrial applications. It features advanced Cisco Resilient Ethernet Protocol (REP) for rapid ring recovery and hardware-based IEEE 1588v2 PTP for precise timing synchronization. The “E” version signifies the LAN Base license, offering robust security, easy deployment via Cisco SmartPort templates, and comprehensive management through Cisco DNA Center or specialized industrial management tools.

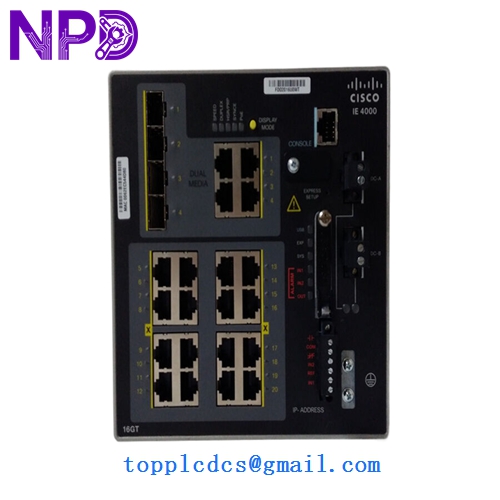

Cisco IE-4000-16GT4G-E
Cisco IE-4000-16GT4G-E
Cisco IE-4000-16GT4G-E
Model Comparison: IE-4000-16GT4G-E vs. Similar Models
The IE-4000-16GT4G-E is the high-capacity Gigabit variant within the IE4000 family, distinguishing itself from the IE-4000-8GT4G-E by doubling the fixed copper port count from 8 to 16. Unlike the IE-4000-16T4G-E, which features Fast Ethernet (10/100) ports, the “GT” designation ensures that all 16 downlink ports support full Gigabit speeds. Compared to the “S” (IP Lite) versions, this “E” (LAN Base) model focuses on foundational Layer 2 switching; it lacks the advanced Layer 3 routing features found in the IE-4000-16GT4G-A model, making it a more cost-effective solution for high-speed edge connectivity where complex routing is not required.
Operational Guidelines
- Power Redundancy: Utilize the dual DC power inputs to connect independent power sources, ensuring the switch remains operational if one power supply fails.
- SFP Compatibility: When using the 4G combo ports with SFP modules, ensure you use Cisco-certified industrial temperature (IND) rated SFPs to maintain system stability in extreme heat or cold.
- SD Card Backup: Insert a Cisco industrial-grade SD card into the dedicated slot to automatically back up the IOS image and configuration file, allowing for “zero-touch” replacement if a unit needs to be swapped.
- Thermal Management: Ensure at least 2 inches (50mm) of clearance above and below the unit for convection cooling, as the IE4000 is fanless and relies on its chassis fins to dissipate heat.
