Description

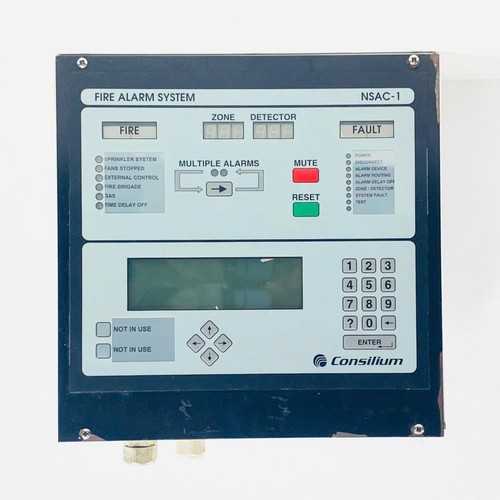

The Consilium NSAC-1 is a sophisticated, addressable fire alarm control system designed for high-stakes safety environments, particularly in the maritime and heavy industrial sectors. Engineered to provide rapid, pinpoint detection of fire incidents, this unit serves as the centralized command center for an entire safety network. It combines high-reliability hardware with advanced signal processing to ensure continuous monitoring, minimizing false alarms while maintaining compliance with stringent international marine and safety standards.
⚙️ Technical Specifications
- System Architecture: Fully addressable loop configuration for individual device management.
- Operating Voltage: 24V DC nominal input, optimized for battery-backed emergency power.
- Communication Protocol: High-speed digital polling loop for real-time detector status updates.
- Capacity: Scalable loop architecture supporting up to 127 addressable devices per loop.
- Display Interface: High-contrast integrated LCD display for zone status and alarm event categorization.
- Operating Temperature: Engineered for stable operation in environments ranging from -10°C to +55°C.
- Ingress Protection: Robust, metal-encased housing designed for vibration resistance and electromagnetic compatibility.
- Output Control: Configurable relay outputs for triggering auxiliary fire suppression or ventilation systems.
- Event Logging: Integrated non-volatile memory for maintaining detailed event and fault history.
- Communication Interface: Serial RS-232/RS-485 ports for external data transmission and remote monitoring.
📋 Recommended Series Models
To support the installation and maintenance of the NSAC-1 system, the following components and related models are recommended:
- NSAC-1 Expansion Loop Card: Additional hardware for scaling the addressable point capacity.
- SALW-E1 Smoke Detector: High-sensitivity optical smoke sensor for the NSAC loop.
- SATH-E1 Heat Detector: Fixed/Rate-of-rise thermal sensor for localized fire detection.
- MCP-E1 Manual Call Point: Weatherproof emergency trigger for manual activation.
- C-Loop Repeater Panel: Secondary display for monitoring the main system from remote locations.
- I/O Module (Input/Output): Interface for connecting non-addressable conventional devices.
- Consilium Power Supply Unit (PSU-24): Redundant power management for emergency operations.
- Fault Isolator Module: Essential hardware to maintain loop integrity in case of short circuits.
- Battery Back-up Unit (BBU): Integrated storage for uninterrupted operation during main power failure.
- System Programming Keypad: Dedicated input device for local configuration and diagnostic testing.
