Description
Product Specifications
- Brand: CONVERTEAM (GE Energy / Alstom)
- Model: MVC3003-4003A
- Part Number: MVC3003-4003
- Type: Switched Mode Power Supply (SMPS) Cassette
- Input Voltage: Derived from DC Link (typically 500V – 1100V DC)
- Output Voltages: Multi-rail DC outputs for control electronics and gate drives
- Compatibility: ALSPA MV3000 / MV3000e DELTA Inverter Modules
- Cooling: Convection cooled via internal drive airflow
- Mounting: Plug-in cassette design for MVC series controllers

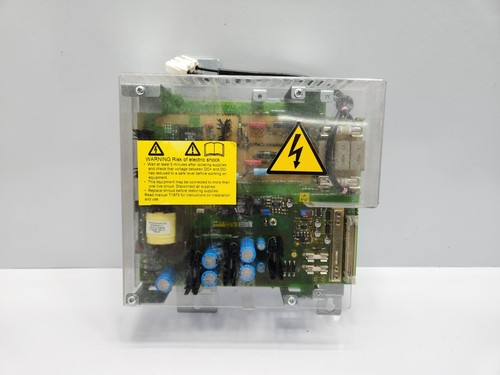

The CONVERTEAM MVC3003-4003A is a critical Switched Mode Power Supply (SMPS) module designed to provide stabilized internal DC power for the ALSPA MV3000 drive control suite. It functions by tapping into the high-voltage DC bus of the inverter and stepping it down to the precise low-voltage levels required by the MVC3001 controller and associated I/O boards. This “A” revision is engineered with high-frequency switching technology to maintain efficiency and thermal stability, ensuring that the drive’s “brain” remains powered even during significant line voltage fluctuations or heavy load transients.
Key Differences from Similar Models
The MVC3003-4003A is distinguished from the standard MVC3003-4001 by its enhanced current rating on the secondary logic rails, which is necessary for drives equipped with multiple expansion fieldbus cards. While the MVC3003-4002 is often found in smaller, liquid-cooled frames, the 4003A is the high-capacity variant typically paired with larger air-cooled DELTA modules. Additionally, the “A” suffix denotes an updated component lifecycle version with improved electrolytic capacitor specifications, offering a longer MTBF (Mean Time Between Failure) compared to the early-generation non-A legacy cassettes used in the original ALSPA series.
Operational Tips
- DC Link Discharge: WARNING: Before removing or installing the SMPS cassette, ensure the drive’s main DC link capacitors have fully discharged (typically 15-20 minutes after power-off). Verify with a calibrated voltmeter at the test points to avoid lethal electrical shock.
- Seating Verification: When sliding the MVC3003-4003A into the rack, ensure the multi-pin backplane connector is fully engaged before tightening the retaining screws; a loose connection can cause “Control Supply Under-voltage” faults.
- Capacitor Aging: In high-temperature environments, the internal capacitors may dry out over 5-7 years. If the drive fails to boot or the “Ready” LED flickers during startup, the SMPS is the primary suspect for ripple-induced logic errors.
- Fuse Inspection: If the unit provides no output, check the high-speed semiconductor fuses on the input side. If a fuse is blown, do not replace it until the DC bus bridge has been checked for shorts, as an upstream fault often causes SMPS failure.
