Description
🔍 Product Overview

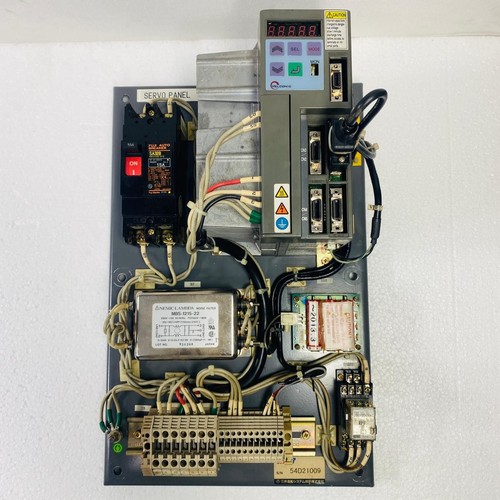

The Toei Electric CVLPST-025P2L-AX is a high-precision, digital industrial servo drive from the premium Velconic series. Developed by Toei Electric Co., Ltd., this drive is engineered for sophisticated velocity, torque, and position control loops in highly automated manufacturing setups. It combines advanced power electronics with high-speed digital signal processing (DSP) to deliver seamless dynamic response, minimizing positioning errors in high-duty cyclic machinery applications.
⚙️ Technical Parameters & Specifications
- Model Number: CVLPST-025P2L-AX
- Product Series: Velconic Servo Drive Series
- Output Power Rating: 2.5 kW nominal output capacity
- Power Supply Input: Multi-phase AC input (optimized for low-voltage industrial grids)
- Dimensions: 265 mm x 85 mm x 190 mm
- Weight: 3.40 kg
- Country of Origin: Japan
🚀 Application Areas
- CNC Machine Tools: Supplying smooth, high-torque feed axis control for precise cutting paths.
- Robotic Pick-and-Place Systems: Delivering fast acceleration/deceleration profiles for high-throughput packaging lines.
- Textile Processing Machinery: Managing synchronous multi-axis web tensioning controls.
- Semiconductor Manufacturing: Directing ultra-precise position indexing loops within cleanroom automation environments.
📖 Product Usage Instructions
The CVLPST-025P2L-AX servo drive must be installed inside an IP54 or higher rated control cabinet that is free from conductive dust, moisture, and corrosive gases. Mount the unit vertically onto a metallic backplane to optimize the efficiency of its integrated cooling heatsink. Ensure that proper line filters and ferrite cores are clamped onto the input power cables to suppress electromagnetic radiation. Always wait at least 5 minutes after disconnecting the main power supply before touching any internal terminals to let the high-voltage bus capacitors discharge completely.
🌐 Communication Configuration Steps
- IP Address / Fieldbus Setup: Depending on the selected communication interface card installed in the “AX” variant (e.g., EtherCAT, Mechatrolink, or Modbus), network addresses are configured through the Velconic setup software or by adjusting the hexadecimal rotary switches on the drive’s front face.
- Station Number: Set the unique node station number (Slave Address) via the physical hardware dials or parameter register maps to establish error-free polling with the master motion controller.
- Baud Rate: Automatically synchronizes to the network clock frequency or can be manually locked to standardized bus communication speeds (ranging up to 100 Mbps for industrial Ethernet variants) during setup.
⚡ Power-Up & Commissioning Flow
- Wiring and Shielding Audit: Ensure the motor power cable (U, V, W), encoder feedback harness, and logic power lines are isolated from one another and properly shielded.
- Control Power Activation: Energize the low-voltage control circuitry first (typically 24V DC or single-phase AC) to verify that the front panel diagnostic display initializes normally.
- Main Bus Energization: Apply the primary three-phase power line. The drive should enter a “Servo Ready” or “Base Block” state without throwing initialization fault codes.
- Jog Operation Test: Connect the PC tuning tool and execute a low-speed manual “Jog” command to verify that the motor shaft direction matches software metrics and encoder counts track properly.
✅ Initial Operation Checklist
- Is the chassis ground terminal securely bonded to the main cabinet ground bus?
- Are the regenerative braking resistor connections verified and mapped to the correct thermal protection settings?
- Has the specific motor model code been selected inside the drive configuration parameter settings?
- Does the encoder pulse feedback increment smoothly without generating signal loss or noise faults?
❓ Common Questions (Q&A)
Q: What does an “Overcurrent” or “OC” error code indicate immediately upon enabling the servo?
A: This usually points to a physical short circuit across the motor phases (U, V, W), an insulation breakdown inside the servo motor windings, or damaged internal IGBT output transistors inside the drive.
Q: Can this drive run a third-party servo motor from a different manufacturer?
A: While optimized for Toei Electric Velconic motor series, it can theoretically drive other permanent magnet synchronous motors (PMSM), provided you can input the exact motor winding resistance, inductance, pole count, and matching encoder specifications into the parameter configuration software.
Q: Why does the motor emit a high-pitched humming sound when it is stationary?
A: High-pitched humming or oscillation at standstill generally indicates that the position loop gain or velocity loop integration gain parameters are set too high for the connected mechanical inertia load. Running the drive’s auto-tuning routine will re-calculate and smooth out these gain coefficients.
