Description
The DEIF 100031593.10 LSU-112DG Load Sharing Unit controls diesel and gas generators in standalone or parallel operation with grid/other units, using built-in power and frequency transducers for precise load balancing. It supports mechanical governors with electronic potentiometers for optimal synchronization and power distribution.
Product Parameters
This unit accepts voltage inputs of 57.7-690 VAC (±20%) at 50/60 Hz, current inputs from 0.3-5 A (adjustable 75-100% of In), and auxiliary supply of 24-220 VDC or 57.7-690 VAC. Outputs include two speed control relays (8 A at 250 VAC/24 VDC), analog PS/FS lines (-5 to +5 V), and reference voltage (5 V ±1%), with galvanic isolation up to 3250 V.
Datasheet Overview
The datasheet covers constant power/isochronous modes, proportional/integral control (TN 25-500 ms, XP ±50% Pn), overload protection (4x In continuous, 80x In for 1 s), temperature drift ≤0.2%/10°C, and LED indicators for status, unload, and speed commands. Dimensions suit 35 mm DIN rail mounting, weight approx. 0.75 kg, rated for 60°C ambient.

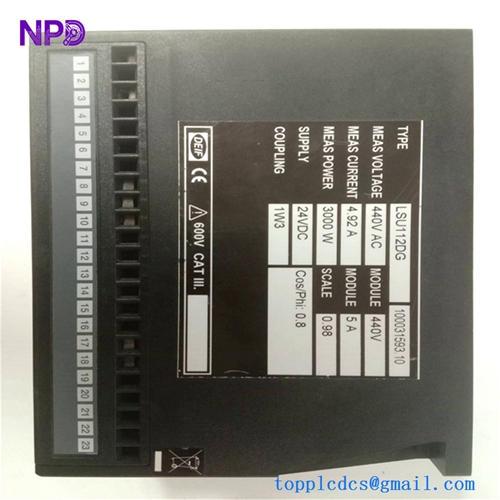

DEIF 100031593.10 LSU-112DG
Country of Origin
Manufactured in Denmark by DEIF for marine and power generation applications.
Usage Instructions
Mount on DIN rail or base with screws, connect voltage/current transformers to inputs, wire aux supply and speed governor relays to outputs. Adjust range potentiometers for power/frequency, set TN/XP via knobs, apply power, and monitor LEDs; seal cover after calibration for paralleling generators or grid tie-in.
Common Q&A
- Q: Input flexibility?
A: Wide-range AC voltage/current with built-in transducers or external 4-20 mA.
- Q: Control modes?
A: Isochronous, constant power, with unload relay input.
- Q: Mounting style?
A: 35 mm DIN rail or 4 mm screw base.
Similar Models
- LSU-122DG (advanced paralleling).
- LSU-142DG (multi-generator sync).
- ASU-110DG (automatic synchronizer).
- PPU-210DG (power management unit).
- GPU-310DG (generator protection).
