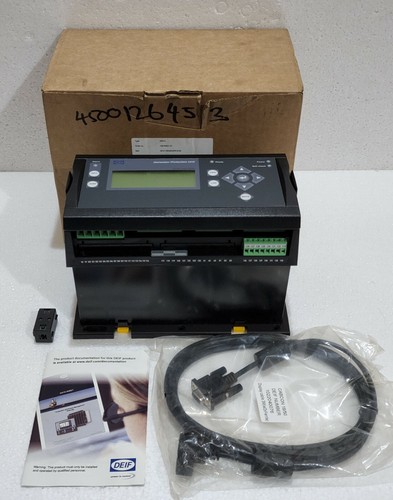

DEIF 2912110030-03 GPU-3 MARINE VARIANT 03 WITH DISPLAY GPU-3-E2-F1-M14.8-J1

🛠️ Product Overview & Technical Datasheet The DEIF GPU-3 (Generator Protection Unit) with display (Part Number: 2912110030-03, Variant: GPU-3-E2-F1-M14.8-J1) is an advanced, microprocessor-based protection and control unit engineered specifically for marine generator sets. It provides comprehensive 3-phase measuring, synchronisation, and extensive generator/busbar protection features tailored for marine power management systems.

• Brand: DEIF

• Model / Part Number: 2912110030-03

• Variant String: GPU-3-E2-F1-M14.8-J1

• Series: Multi-Line GPU-3 (Power Technology Marine)

• Product Name: Generator Protection Unit with Display (DU-2/MKIII Operator Display included)

• Application Environment: Marine (Marine-approved by major classification societies)

• Physical Condition: Brand New / Factory Sealed or Verified Surplus

• Measuring Inputs: Galvanically separated 3-phase voltage and current inputs

• Power Supply: 8 to 36 VDC auxiliary power supply

📋 Specific Hardware Options Breakdown (GPU-3-E2-F1-M14.8-J1)

• Display Package (E2): Includes standard operator display unit (DU-2/MKIII) and connection cable for local visualization of values, alarms, and event logs.

• Function Package (F1): Enhanced software functionality package for advanced generator protection and control integration.

• Outputs / Hardware Option (M14.8): Specific analog/PWM/transducer output configurations for precise governor (GOV) and automatic voltage regulator (AVR) control.

• Engine Communication (J1 / J1939): Integrated CAN bus communication interface supporting engine ECU protocols (such as J1939 for Caterpillar, Cummins, MTU, Volvo Penta, Scania, etc.).

📋 First Run Inspection Checklist

• 🔍 Verify physical condition, including the main processor housing, display screen glass, and rear terminal blocks, to ensure zero shipping or moisture damage.

• 🔌 Check all external wiring harnesses, analog/digital I/O lines, and 3-phase voltage/current transformer (PT/CT) connections against system diagrams before power-up.

• ⚡ Confirm stable 8 to 36 VDC auxiliary power supply voltage and correct polarity prior to energizing the unit.

  Catalogs Nauticexpo

• 🛡️ Ensure proper enclosure grounding and shield continuity to protect against marine electromagnetic interference (EMI) and harsh electrical environments.

• 🌐 Check CAN bus communication lines (J1939) and display data cables to ensure secure linkage between the base unit and the remote/local display panel.

🔧 Routine Maintenance & Servicing

• 🧰 Periodically inspect plug-in terminal blocks, screw connections, and wiring for tightness, vibration wear, or salt-air oxidation.

• 🧽 Clean the operator display screen and front membrane gently using a soft, lint-free cloth with mild cleaner; avoid harsh chemical solvents.

• 💾 Back up custom configuration files, M-Logic (Micro PLC) programs, and parameter setups regularly using DEIF’s USW PC utility software via USB.

• 🌡️ Monitor switchgear or engine control console internal temperatures to ensure operating limits stay within specifications.

🔍 Troubleshooting & Common Issues

• ⚠️ Unit Fails to Power On: Verify 8–36 VDC auxiliary supply voltage levels, fuse status, and power connector terminal seating.

• ⚠️ Engine ECU Communication Error (J1939): Check CAN bus high/low line termination resistors, wiring continuity, and correct engine protocol selection in the software setup.

• ⚠️ Measurement or Synchronization Faults: Verify 3-phase PT/CT scaling factors, phase rotation alignment, and voltage transformer inputs.

⚠️ Safety Precautions

• 🛑 Installation, parameterization, and electrical servicing must be executed strictly by qualified marine electronics technicians or authorized engineers.

• 🔌 Always isolate and disconnect main vessel power, battery supplies, and high-voltage transformer inputs before servicing or removing internal modules.

• ⚡ Adhere to standard electrostatic discharge (ESD) safety protocols when handling internal hardware slots or option boards.

❓ Frequently Asked Questions (Q&A)

• 💡 Q: What is the primary role of the DEIF GPU-3?

  A: It serves as an all-in-one generator protection, control, and synchronisation unit designed for complex marine power management and PLC-controlled switchgear systems.

• 💡 Q: What does the J1 option provide on this specific unit?

  A: The J1 designation incorporates high-speed CAN bus (J1939) engine communication, allowing direct data exchange and monitoring with electronic diesel engines (e.g., MTU, Volvo, Caterpillar).

• 💡 Q: Can the GPU-3 handle custom application logic without an external PLC?

  A: Yes, it features DEIF’s M-Logic (Micro PLC) tool, which lets users customize logic conditions and map digital/analog inputs and outputs directly through the free PC utility software.
