Description

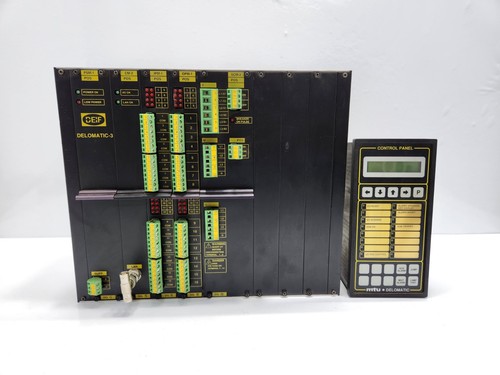

The DEIF Delomatic-3 DGU 5 is a versatile, high-end generator control and power management system. It provides comprehensive control, protection, and synchronization for complex power systems, including islanded generators, grid-parallel setups, and multi-generator power plants. The 1044220050D variant serves as a robust central hub for power management, offering advanced programmable logic for automatic load sharing, frequency control, and emergency shutdown protocols.
📋 Technical Specifications
- Model Number: 1044220050D
- System Type: Delomatic-3 (DGU 5)
- Function: Multi-function Generator Control / Power Management
- Processor: High-speed real-time controller
- Communication: CAN bus, Modbus, and proprietary DEIF protocols
- Dimensions: Standard DIN-panel mount (approx. 250 x 200 x 150 mm)
- Weight: Approx. 3.5 kg (7.7 lbs)
- Country of Origin: Denmark
⚙️ Application Areas
- Marine and Offshore Power Plants
- Emergency Standby Power Systems
- Hospital and Data Center Cogeneration
- Industrial Grid-Parallel Generation
- Multi-Generator Load Sharing Systems
🛠️ Operating Instructions & Guidelines
- Installation: Panel mount the unit in a climate-controlled environment. Ensure the wiring for potential transformers (PT) and current transformers (CT) is segregated from high-voltage power lines to prevent signal distortion.
- Environmental Requirements: Keep the operating temperature within -25°C to +70°C. Ensure the back-of-panel connections are protected from moisture and corrosive salts, particularly in marine applications.
- Maintenance: Perform regular “black-box” data exports to review system history logs. Periodically check all terminal connections for heat-related degradation.
⚡ Power Sequence & Operation
- Power-On Sequence: 1. Energize the auxiliary control power (usually 24VDC). 2. Observe the LCD display during the boot sequence to verify firmware initialization. 3. Monitor for any “Alarm” or “Trip” messages before enabling the generator. 4. Verify system voltage and frequency match the grid or busbar parameters.
- Power-Off Sequence: 1. Set the system mode to “Manual” or “Stop” via the control panel interface. 2. Allow the generator to complete its cooling run. 3. Open the generator circuit breaker. 4. De-energize the main prime mover.
- Step-by-Step Operation: 1. Navigate the interface to select the operational mode (Automatic/Manual/Test). 2. Configure the synchronization parameters (voltage, frequency, and phase angle). 3. Initiate the start command. 4. Monitor the load distribution graph on the screen to ensure balanced operation.
❓ Frequently Asked Questions (Q&A)
- What does the “DGU 5” designation signify? It refers to the specific hardware generation and feature set of the Delomatic-3 platform, optimized for complex generator management where multiple engines must work in synchronization.
- How can I troubleshoot a synchronization failure? Check the PT/CT phasing and verify that the voltage sensing inputs on the unit match the actual phase order of the generator and the busbar. Misphasing is the most common cause of synchronization timeouts.
- Can this controller handle grid-parallel operations? Yes, the Delomatic-3 is specifically designed for grid-parallel applications, including “peak shaving” and “import/export” control of active and reactive power.
- Where can I find diagnostic software for this unit? DEIF provides dedicated PC software (such as USW) that connects to the controller for advanced parameter programming, firmware updates, and real-time visualization of the power system.
