Description

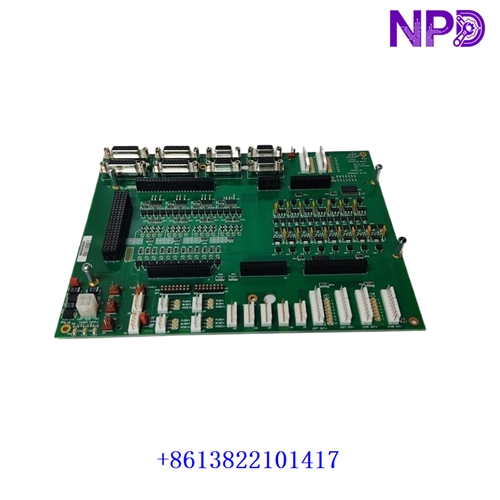

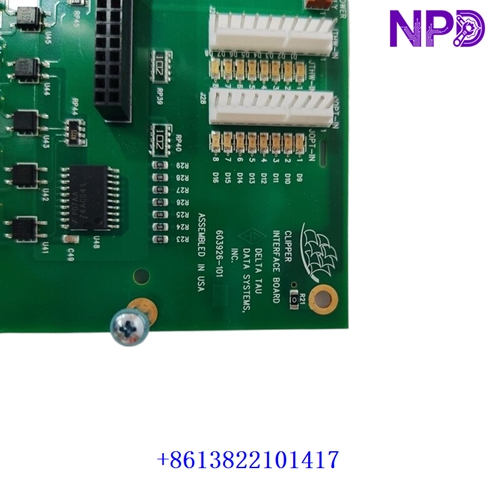

The Delta Tau 603926-101 is a specialized interface and expansion board designed for the Clipper motion controller series. It provides enhanced signal distribution, encoder inputs, amplifier connections, and I/O routing for precision multi-axis motion control applications in industrial automation and CNC machinery.
- Manufacturer: Delta Tau Data Systems (an Omron company)
- Part Number: 603926-101
- Product Series: Clipper Motion Controller Accessories / Expansion Series
- Product Type: Interface / Terminal Extension Board
- Compatible Architecture: Clipper Multi-Axis Motion Controller Systems
- Physical Mounting: Standoff mount or cabinet panel-mount board format paired directly with the controller chassis
- Approximate Weight: ~0.4 kg
Inspection & Installation Guidelines
- Packaging Check: Unpack the interface board carefully on an ESD-safe surface and ensure anti-static shielding is intact.
- Part Verification: Confirm that part number
603926-101matches your motion control system architecture and electrical schematics. - Visual Inspection: Check all screw terminals, encoder headers, ribbon cable connectors, and circuit board traces for dust, debris, or mechanical wear.
- Secure Connection: Align interface cables and mounting standoffs securely before tightening hardware to prevent strain on connectors.
Maintenance Recommendations
- Dust Control: Keep control enclosures clean and free of particulate buildup using dry, oil-free compressed air during scheduled maintenance windows.
- Terminal Audit: Periodically check all screw terminals and plug-in wiring blocks to counteract vibration-induced loosening in high-motion machinery.
- Thermal Monitoring: Ensure that the motion controller cabinet maintains ambient operating temperatures within safe electronic limits.
- Signal Verification: Periodically check encoder feedback and I/O signal integrity through the motion controller software interface.
Troubleshooting & Common Faults
- Encoder Feedback Loss: Check the wiring continuity and shielding on encoder cables connected to the interface board.
- Communication or Signal Error: Verify that internal ribbon cables linking the Clipper controller to the interface board are securely seated.
- I/O Mismatch / Failure: Confirm that terminal block assignments align correctly with your system control program logic and axis mapping.
Safety & Handling Precautions
- Power Isolation: Always disconnect and lock out main electrical power to the drive amplifier and controller chassis before servicing wiring or interface boards.
- Qualified Personnel: Installation, wiring, and motion parameter configuration must be performed exclusively by certified automation and motion control engineers.
- ESD Protection: Always wear a properly grounded anti-static wrist strap when handling the board to prevent electrostatic discharge damage.
Frequently Asked Questions (Q&A)
- Q: What is the primary function of the Delta Tau 603926-101?
- A: It serves as an interface and termination board for Clipper motion controllers, routing encoder signals, amplifier commands, and auxiliary I/O.
- Q: What system is this board designed to work with?
- A: It is custom-engineered to integrate with the Delta Tau Clipper multi-axis motion controller hardware family.
