Description

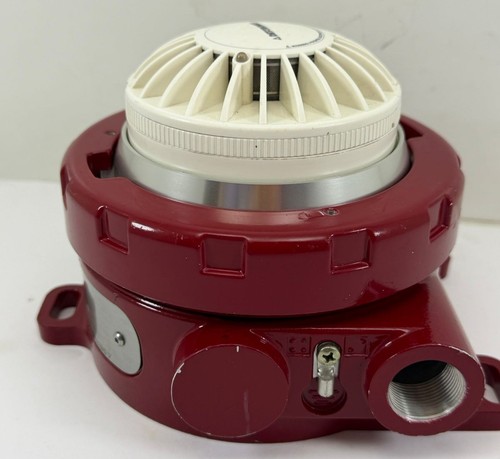

The Det-Tronics U5015 is an explosion-proof, infrared (IR) smoke detector engineered specifically for the detection of smoke in high-risk industrial environments. Unlike standard commercial smoke detectors, the U5015 utilizes advanced optical detection technology to provide reliable performance in hazardous areas, such as offshore platforms, oil and gas processing facilities, and petrochemical plants, where explosive atmospheres or extreme environmental conditions may exist.
Key Technical Specifications
- Detection Principle: Advanced infrared optical technology that maintains sensitivity across a broad range of smoke types, including those generated by smoldering fires.
- Explosion-Proof Rating: Certified for use in hazardous locations (Class I, Div 1, Groups B, C, and D; ATEX/IECEx Zone 1).
- Operating Temperature: Engineered for extreme environments, ensuring consistent detection reliability from -40°C to +75°C.
- Output Options: Features standard industrial communication outputs, including 4–20 mA current loops, alarm/fault relays, and RS-485 Modbus communication.
- Environmental Protection: NEMA 4X / IP66 rated housing to prevent the ingress of water, dust, and corrosive industrial chemicals.
- Self-Diagnostics: Continuous internal monitoring of optical path health and hardware integrity, with automatic compensation for dirty lenses or environmental accumulation.
- Calibration: Designed for low maintenance with automated calibration checks, reducing the need for manual site access in difficult-to-reach locations.
- Compatibility: Integrated with Fire and Gas (F&G) systems or PLC/DCS controllers via standardized fieldbus protocols.
- Mounting: Designed for versatile surface mounting, with optional accessories for duct or wall integration.
- Safety Standards: SIL 2 capable, meeting rigorous functional safety standards for critical infrastructure.
Integration and Application
The U5015 operates by monitoring the obscuration of an infrared beam within a protected internal chamber. Because it is explosion-proof, it can be safely installed in areas where volatile gases may be present. Typical applications include:
- Air Handling Units (AHU): Detecting smoke in supply or return ductwork of hazardous zone buildings.
- Control Rooms: Protecting critical electronic and processing equipment in potentially explosive zones.
- Turbine Enclosures: Early detection of insulation smoldering or electrical fires in enclosures.
- Battery Rooms: Monitoring for early signs of thermal runaway in industrial battery arrays.
Related Det-Tronics and Fire Safety Components
To create a fully redundant fire detection and safety system, the U5015 is often deployed alongside the following components:
- X3301: Multispectrum IR flame detector for high-speed fire detection.
- Eagle Quantum Premier (EQP): A controller that manages F&G system logic and device communication.
- PointWatch PIR9400: Infrared gas detector for combustible gas monitoring.
- FlexVu UD10: Universal display unit for local monitoring of detector status.
- Manual Pull Stations: Explosion-proof manual trigger devices for emergency activation.
- Strobe/Horn Beacons: Hazardous-area rated notification appliances for visual/audible alerts.
- Relay Modules: Dedicated output modules for triggering emergency shutdown (ESD) or fire suppression systems.
- Power Distribution Units: Industrial-grade supplies designed for F&G loop stability.
- Mounting Brackets: Corrosion-resistant stainless steel mounts for harsh atmospheric conditions.
- Test Lamps: Specialized tools for conducting site-specific sensitivity testing without creating an actual fire hazard.
