Description

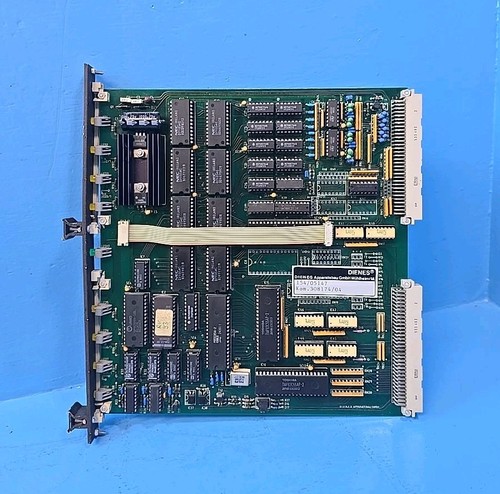

Dienes Apparatus 154/05147 is a specialized control board utilized primarily in high-precision industrial winding, tensioning, and cutting systems. Dienes is globally recognized for its expertise in slitting and tensioning technology, and this control board serves as the “brain” for the apparatus, orchestrating the precise mechanical movements of knife holders and tensioning segments. It processes sensor feedback and operator commands to ensure consistent material processing, high operational speed, and extreme accuracy in slitting applications.
⚙️ Technical Specifications
- Module Type: Dedicated industrial control board for Dienes slitting/tensioning units.
- Processor Architecture: Integrated microcontroller circuit for real-time motion and logic control.
- Operating Voltage: Standard industrial 24V DC control power.
- Control Inputs: Multi-channel interface for proximity sensors and operator adjustment commands.
- Output Interface: High-speed drive outputs for regulating pneumatic or electronic actuators.
- Environmental Protection: Robust PCB construction suited for high-speed industrial environments.
- System Integration: Designed for modular installation within Dienes slitting machine control cabinets.
- Diagnostic Features: Board-level status LEDs for monitoring power supply and communication health.
- Signal Resolution: High-fidelity data processing to maintain precise knife positioning.
- Mounting Standard: OEM-specific form factor for secure fitment in Dienes machine housings.
📋 Recommended Series / Related Components
To maintain your slitting apparatus to peak performance standards, the following components are often serviced or maintained alongside the 154/05147 control board:
- Dienes Knife Holder Assemblies: The physical cutting units controlled by the board.
- Proximity Sensors: Used for blade position and speed feedback.
- Pneumatic Control Valves: Solenoids that actuate the knife pressure based on board signals.
- Interface Cable Harness: High-shielding cables to prevent signal interference.
- Dienes Operator Panel: The HMI used for adjusting slitting widths and pressures.
- 24V DC Power Supply Module: Essential for providing ripple-free power to the logic board.
- Motor Drive Amplifiers: For systems utilizing electric motor-driven knife positioning.
- Replacement Connector Kits: OEM-standard terminal blocks for board-level repairs.
- Cooling Fan Assemblies: To ensure the control cabinet maintains optimal operating temperatures.
- System Diagnostic Test Fixture: Factory-grade tool for bench-testing the 154/05147 board.
