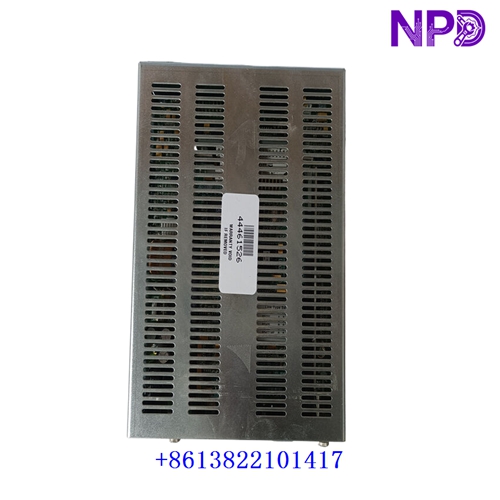

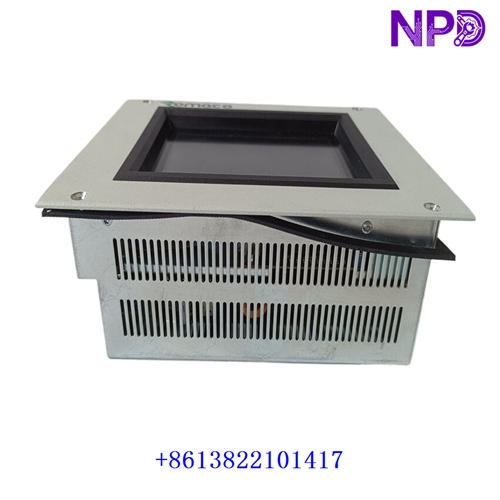

The Eaton Micro Innovation GF0-57CQD-002 is a compact industrial operator interface from the GF0 Micro Panel series. It features a 5.7-inch color STN LCD display with a 320 × 240 pixel resolution and an infrared touch interface. Designed for industrial machine operation and process visualization, it allows operators to monitor system conditions, view process data, and interact with compatible automation equipment. The panel is suitable for legacy machinery, production equipment, and industrial control applications.

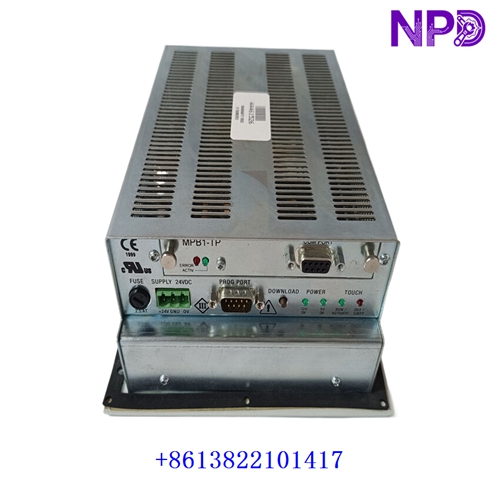

The GF0-57CQD-002 uses a 24 V DC power supply and provides an RS-232 programming port for configuration and project transfer. Communication and programming compatibility depend on the installed firmware, software version, and application configuration. This model is discontinued, so verify the exact part number, front-panel design, programming software, and communication connections before ordering a replacement.
GF0-57CQD-002
⚙️ Product Parameters
Product Datasheet
🏷️ Brand: Eaton / Micro Innovation AG
🔢 Model: GF0-57CQD-002
📦 Series: GF0 Micro Panel
🖥️ Product Name: 5.7-Inch Color HMI Operator Panel
🌍 Place of Manufacture: Not independently verified
📌 Product Status: Discontinued; actual condition may be New Surplus, Open Box, or Used
📐 Dimensions: Approximately 220 × 170 × 90 mm (W × H × D); verify the mounting drawing
⚖️ Weight: Approximately 3.0 kg, depending on packaging and configuration
🏭 Country of Origin: Verify from the product label
🔌 Power Requirements: 24 V DC
🛠️ Discontinued: Yes; confirm current service and replacement options
🖥️ Display Type: Color STN LCD
📏 Display Size: 5.7 inches
🔍 Resolution: 320 × 240 pixels
👆 Touch Interface: Infrared touch technology
🔗 Programming Interface: RS-232, non-isolated
💾 Internal Memory: 4 MB Flash; expansion up to 20 MB according to the product manual
🌡️ Operating Temperature: 0°C to +50°C
💧 Operating Humidity: 10–85% relative humidity, non-condensing
🔧 Recommended Eaton / Micro Innovation Models
The following 15 models are related Micro Innovation operator panels and HMI products within the broader Eaton automation portfolio. They offer alternative display sizes, touch interfaces, or controller functionality; they are not guaranteed direct replacements.
- GF0-57SQD-002 — 5.7-inch monochrome Micro Panel operator interface.
- GF0-10CVD-000 — Larger-format color Micro Panel family variant; verify the complete ordering code.
- GF0-10SVD-000 — Larger-format monochrome Micro Panel family variant; verify compatibility.
- GFO-57CQD-002 — Related color Micro Panel designation; confirm the exact model marking.
- GFO-57SQD-002 — Related monochrome Micro Panel designation.
- GFO-10CVD-102 — Larger-format color operator panel.
- GF1-10TVD-101 — Industrial operator interface from the GF1 family.
- GF1-10TVD-102 — GF1 operator panel variant for compatible automation applications.
- GF2-10TVD-002 — GF2-series operator interface.
- GF2-10TVD-003 — GF2 operator panel variant; verify software compatibility.
- XV-252-57MPN-1-10 — 5.7-inch operator panel from the XV family.
- XV-430-10TVB-1-10 — 10.4-inch industrial HMI.
- XV-440-10TVB-1-50 — XV-series operator panel for industrial visualization.
- MC2-430-57CQB-1-1B — Micro Innovation operator panel with a 5.7-inch display.
- MC2-440-10TVB-1-10 — Larger-format Micro Innovation HMI for compatible control applications.
Before choosing an alternative, verify the panel cutout, power supply, serial communication wiring, project-development software, firmware compatibility, and availability of the original application project.
