1. Product Description
⚙️ The Eaton MP3010 is a microprocessor-based motor protection relay in the MP-3000 series, designed to protect industrial motors against overloads and other abnormal operating conditions. It monitors motor current and provides protective functions to help prevent equipment damage and unplanned shutdowns.
🔧 The MP3010 is a fixed-case model with 5 A current input and RS-232 communication capability. Depending on the configuration, additional communication options such as INCOM, Modbus, or DeviceNet may be available under separate model numbers. Applications include medium-voltage motor starters, pumps, compressors, fans, and other critical motor-driven equipment.

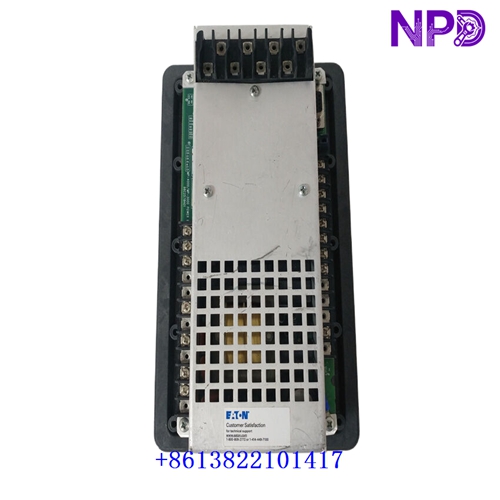

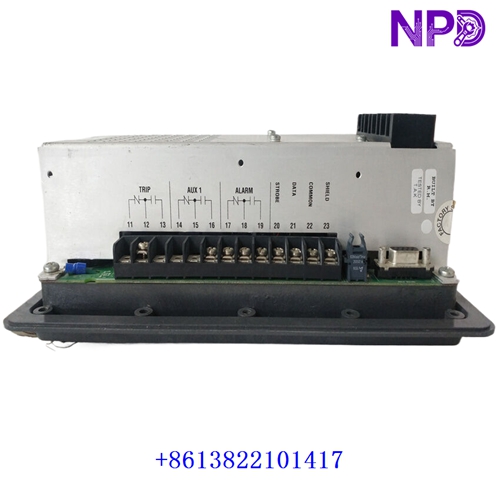

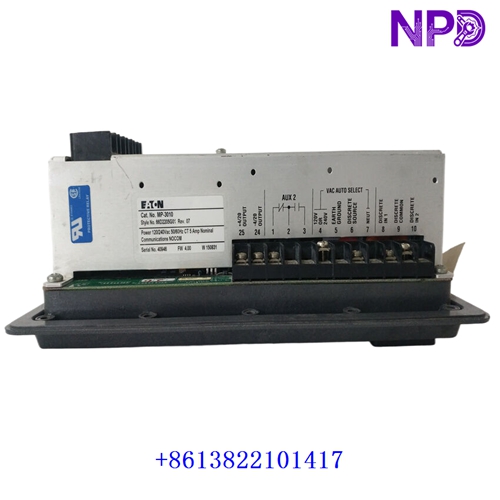

MP3010
2. Product Parameters and Datasheet
📋 Brand: Eaton / Cutler-Hammer
Model: MP3010
Series: MP-3000
Product Name: Motor Protection Relay
Product Type: Microprocessor-Based Protective Relay
Mounting: Fixed Case / Panel Mount
Current Input Rating: 5 A nominal
Communication: RS-232; optional communication variants available
Protection Functions: Motor overload and configurable motor protection
Application: Industrial motor protection and control
Control Power: Verify the unit nameplate and applicable manual
Dimensions: Approximately 260.4 × 170.7 × 94 mm (10.25 × 6.72 × 3.7 in)
Weight: Approximately 2.6 kg; verify the exact variant
Place of Manufacture: To be confirmed
Product Status: Confirm actual inventory condition
Country of Origin: Verify from the product nameplate
Discontinued: Legacy MP-3000 product family; confirm current support status
3. Recommended Related Models
🔩 1. Eaton MP3010-INCOM — Fixed-case motor protection relay with INCOM.
2. Eaton MP3010MODBUS — Fixed-case motor protection relay with Modbus.
3. Eaton MP3010DEVICEN — Fixed-case motor protection relay with DeviceNet.
4. Eaton MP3110 — Fixed-case motor protection relay with 1 A current input.
5. Eaton MP3110-INCOM — 1 A version with INCOM.
6. Eaton MP3110MODBUS — 1 A version with Modbus.
7. Eaton MP3012 — Drawout motor protection relay with INCOM and 5 A input.
8. Eaton MP3013 — Drawout motor protection relay with Modbus and 5 A input.
9. Eaton MP3014 — Drawout motor protection relay with DeviceNet and 5 A input.
10. Eaton MP3112 — Drawout motor protection relay with INCOM and 1 A input.
11. Eaton MP3113 — Drawout motor protection relay with Modbus and 1 A input.
12. Eaton MP3114 — Drawout motor protection relay with DeviceNet and 1 A input.
13. Eaton MP3010VPI — Fixed-case variant with INCOM and URTD option.
14. Eaton MP3010VPM — Fixed-case variant with Modbus and URTD option.
15. Eaton MP3010VPD — Fixed-case variant with DeviceNet and URTD option.
⚠️ These are related MP-3000 family variants, not all direct replacements. Verify current-transformer input rating, mounting style, communications protocol, auxiliary options, and protection settings before ordering.
