1. Product Description

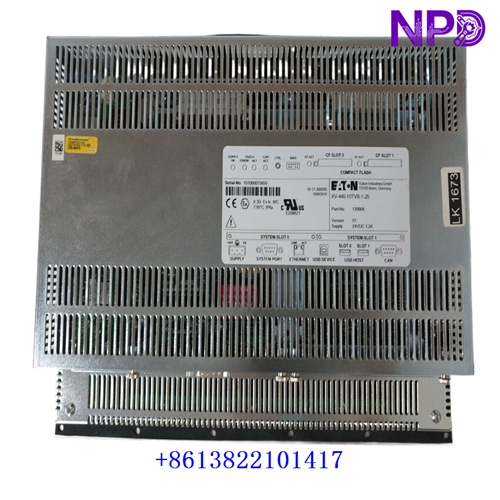

🖥️ The Eaton XV-440-10TVB-1-20 is an industrial human-machine interface (HMI-PLC) from the XV400 series. It features a 10.4-inch TFT color display with infrared touch technology and is designed for machine visualization, operator control, process monitoring, and equipment status display.

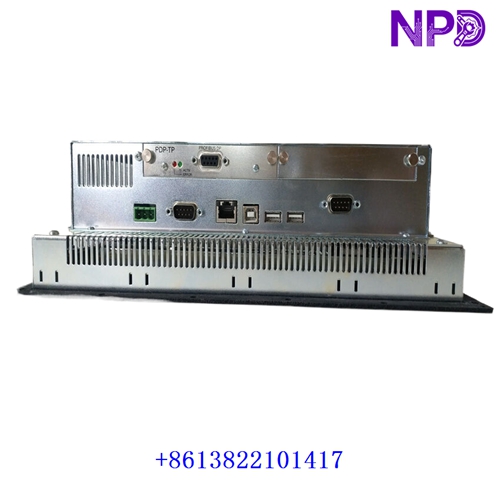

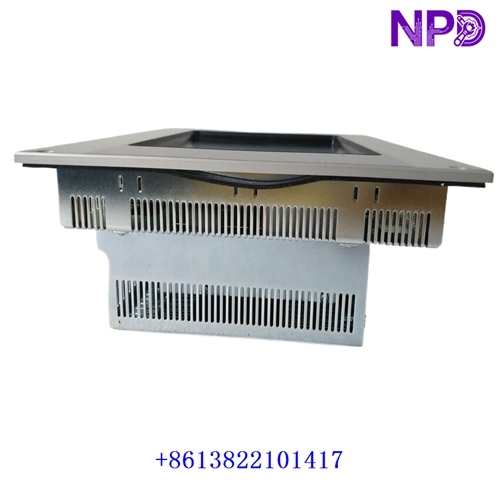

⚙️ The panel supports Ethernet, RS232, CAN/easyNet, USB, and optional communication modules. Its PLC functionality can be added with the appropriate license. The unit is designed for flush mounting and is suitable primarily for maintaining or replacing existing automation installations. Eaton’s datasheet states that it is not intended for new applications.
XV-440-10TVB-1-20
2. Product Parameters
📋 Brand: Eaton
Model: XV-440-10TVB-1-20
Catalog Number: 139906
Series: XV400
Product Name: HMI-PLC Operator Touch Panel
Display Type: 10.4-inch TFT color display
Resolution: VGA, 640 × 480 pixels
Touch Technology: Infrared touch
Rated Supply Voltage: 24 V DC
Permitted Supply Voltage: 20.4–28.8 V DC
Communication Interfaces: Ethernet 10/100Base-TX, RS232, CAN/easyNet, USB host and USB device
Expansion Slots: 2 CompactFlash card slots and 2 communication-module slots
Operating System: Windows CE; license and CompactFlash card requirements apply
Mounting: Flush mounting, four-hole front
Visible Display Area: 211 × 158 mm
Front Protection: IP65
Rear Protection: IP20
Dimensions: Approx. 345 × 260 mm front dimensions; verify overall depth against the installation drawing
Weight: Approximately 4.1–4.3 kg, depending on the source specification
Place of Manufacture: To be confirmed
Country of Origin: Reported as Germany; verify product label
Product Status: Legacy product
Discontinued: Manufacturer datasheet states “Not for new applications”; confirm current availability
3. Recommended Eaton Models
🔩 1. Eaton XV-440-10TVB-1-10 — 10.4-inch XV400 HMI-PLC panel.
2. Eaton XV-440-10TVB-1-50 — XV400 HMI-PLC variant.
3. Eaton XV-440-12TVB-1-10 — 12.1-inch XV400 operator panel variant.
4. Eaton XV-440-15TVB-1-10 — 15-inch XV400 operator panel variant.
5. Eaton XV-430-10TSB-1-10 — XV400 operator panel variant; verify specifications.
6. Eaton XV-102 — XV100 HMI family.
7. Eaton XV-152 — XV100 HMI family.
8. Eaton XV-303 — XV300 HMI family.
9. Eaton XV-312 — XV300 HMI family.
10. Eaton XV-322 — XV300 HMI family.
11. Eaton XC-CPU101 — Compact PLC; verify system requirements.
12. Eaton XC-CPU201 — Compact PLC; verify system requirements.
13. Eaton EASY-E4 — Programmable control relay family.
14. Eaton EASY719 — Programmable control relay family.
15. Eaton MFD-Titan — Multifunction display and control family.
⚠️ These are related Eaton automation products, not guaranteed direct replacements. Confirm the panel cutout, communication interfaces, software project compatibility, and supply voltage before ordering.
