Description
Product Description

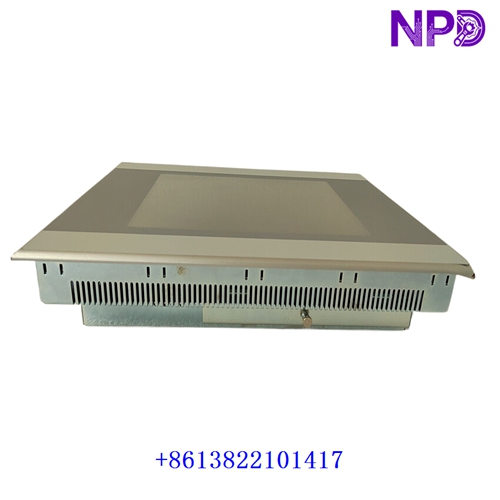

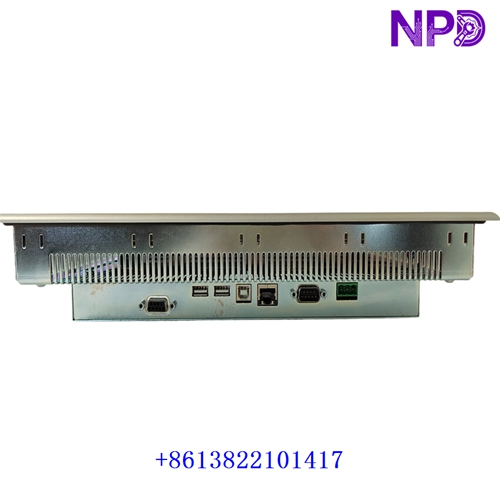

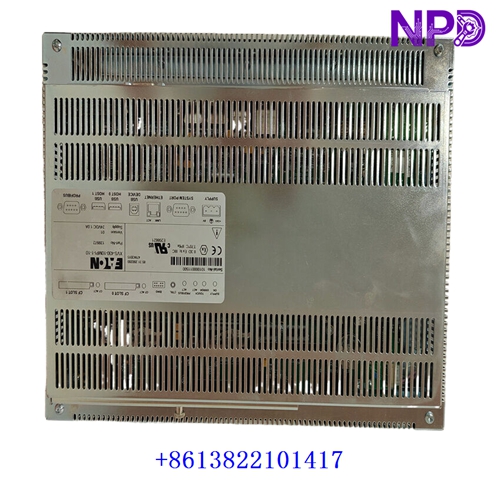

The Eaton XVS-430-10MPI-1-10 is a 10.4-inch industrial human-machine interface (HMI) from the XVS400 series. It features a color TFT display, four-wire resistive touch technology, and Ethernet, RS-232, PROFIBUS/MPI, and USB interfaces for operator interaction and industrial communications. The unit supports Windows CE with the appropriate license and CompactFlash media. Its PLC functionality can be added separately where supported. Typical applications include machine operation, process monitoring, alarm display, and control-system visualization.
XVS-430-10MPI-1-10
Product Parameters and Datasheet
– Brand: Eaton
– Model: XVS-430-10MPI-1-10
– Catalog Number: 139972
– Series: XVS400
– Product Name: 10.4-inch HMI-PLC Touch Panel
– Display: Color TFT
– Screen Size: 10.4 inches
– Resolution: 640 × 480 pixels (VGA)
– Touch Technology: Four-wire resistive touch
– Colors: Selectable 65,536 or 256 colors
– Brightness: Approximately 350 cd/m²
– Contrast Ratio: Approximately 350:1
– Backlight: Dimmable LED; typical service life 50,000 hours
– Ethernet: 1 × 10/100Base-TX
– Serial Interface: 1 × RS-232
– Fieldbus: 1 × PROFIBUS/MPI
– USB: 2 × USB host and 1 × USB device
– Memory: 64 MB DRAM; approximately 1.5 MB available flash and approximately 32 KB retained memory
– External Storage: 2 × CompactFlash Type I/II slots
– Operating System: Windows CE; license required
– Supply Voltage: 24 V DC nominal; effective range 20.4–28.8 V DC
– Heat Dissipation: 24 W
– Mounting: Flush/panel mounting
– Housing: Metal enclosure and front plate
– Dimensions: Confirm cutout and overall dimensions in the installation manual
– Weight: Confirm from the applicable datasheet or nameplate
– Country of Origin: Verify from the product label
– Product Status: Legacy XVS400-series product; verify availability and condition
– Discontinued: Confirm with Eaton or the supplier
Recommended Eaton Models
– XVS-440-10MPI-1-10 — XVS400 10.4-inch HMI variant
– XVS-430-12MPI-1-10 — XVS400 12.1-inch HMI variant
– XVS-440-12MPI-1-10 — XVS400 12.1-inch HMI variant
– XVS-460-15MPI-1-10 — XVS400 15-inch HMI variant
– XVS-430-57MPI-1-10 — XVS400 5.7-inch HMI variant
– XVS-450-57MPI-1-10 — XVS400 5.7-inch HMI variant
– XVS-460-57MPI-1-10 — XVS400 5.7-inch HMI variant
– XVS-460-84MPI-1-10 — XVS400 8.4-inch HMI variant
– LIC-PLC-MXP-MEDIUM — Optional PLC license, subject to compatibility
– XVS400 series — Related HMI panels; check exact model suffix
– XVM-430-65TVB-1-11 — Related Eaton operator panel family
– XVM-410-65TVB-1-11 — Related Eaton operator panel family
– XVM-450-65TVB-1-11 — Related Eaton operator panel family
– XV-102 series — Eaton operator-interface family; verify application compatibility
– XV-300 series — Eaton HMI family; verify software and hardware compatibility
Related models and accessories are not guaranteed direct replacements. Confirm the display size, communication interfaces, configuration software, licenses, and panel cutout before ordering.
