Sale!

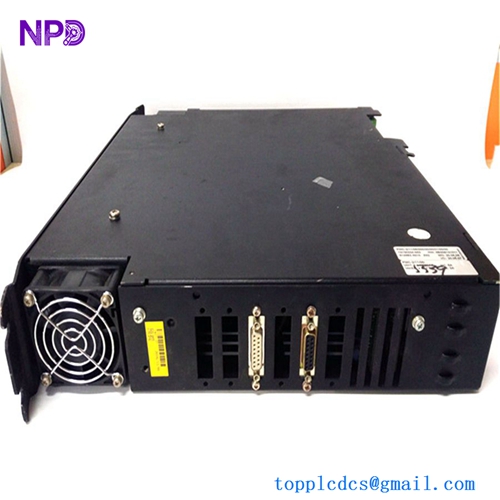

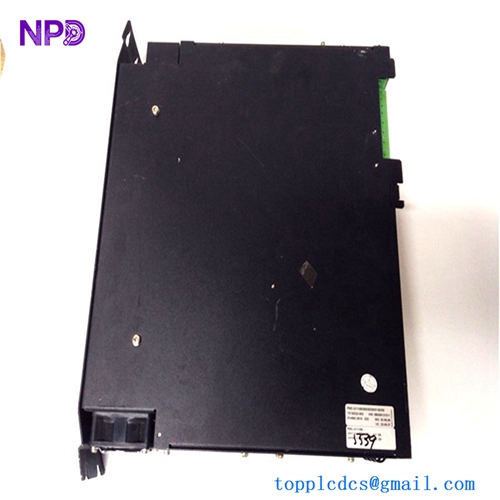

ELAU PMC-2/11/05/000/00/00/01/00/00
ELAU PMC-2/11/05/000/00/00/01/00/00
ELAU PMC-2/11/05/000/00/00/01/00/00

ELAU PMC-2/11/05/000/00/00/01/00/00 | positioning motor controller

Original price was: ¥99,999.00.Current price is: ¥2,200.00.

⚠️Product NO： PMC-2/11/05/000/00/00/01/00/00

⚙️Brand：ELAU

🏚️Delivery time:  In stock

🆕Product status:   Brandnew

🥇Product situation: one year warranty, Origin of Manufacture

Add to quote
Category: SKU: PMC-2/11/05/000/00/00/01/00/00 Tag:
Felix Sales Manager
[email protected] +86 138 2210 1417 8613822101417
WhatsApp
QR
Chat Now
There are still many products that have not been released yet. If you have any products that you cannot find, you can ask me for a quote! Reminder: The product images published on this website are not actual real products and are for reference only!

Description

The ELAU PMC-2/11/05/000/00/00/01/00/00 is a PMC-2 series positioning motor controller for high-dynamic servo applications in packaging, printing, and textile machines. It integrates positioning control and digital motor control for precise motion tasks using brushless AC servo motors.

ELAU PMC-2/11/05/000/00/00/01/00/00

ELAU PMC-2/11/05/000/00/00/01/00/00

Product Parameters

  • Processor: 32-bit multiple processor with VECON chips.
  • Power Supply: 3-phase mains (380-480 VAC), DC-bus 600V technology.
  • Sampling Rate: Position controller 0.33 ms.
  • Interfaces: Resolver/SINCOS (X6), COM1/COM2 serial (RS485), digital I/Os (X4/X5), optional encoder/analog.
  • Programming: ECL-3 language via EPAS-3 on PC.
  • Operating Unit: BE-7 or BE-8 handheld.
  • Dimensions: Modular DIN rail mount.
  • Protection: IP20 standard, IP64 with motors.

Datasheet Summary

Supports absolute/relative positioning, electronic gearing, cam functions, multitasking up to 8 ECL programs. Features T1 safety per VDI 2853, power sharing across units, memory module for PC-free swaps. Compatible with SB-056 to SB-205 servo motors (0.5-90 Nm torque).

Origin

Germany (ELAU AG, Marktheidenfeld), now Schneider Electric.

Technical Details

Combines servo amp with programmable logic for synchro tasks; resolver feedback for high accuracy. Digital concept with parameter groups for tuning speed/position loops, motor data, comms. Wiring includes mains filter, brake control, DC-bus linking; commissioning via BE-7 params or EPAS-3.

Common Q&A

  • What motors pair with it? SB series brushless AC (e.g., SB-105, 2-8 Nm).
  • Programming method? ECL-3 via EPAS-3 software; multitasking.
  • Safety features? T1 operation, E-stop handling, error classes.
  • Communication options? Serial RS485, optional Profibus/Interbus.
  • Error handling? LEDs, diagnosis codes (E001-E999), system vars.

Similar Models

Model Axes/Features
PMC-2/11/08/000/00/00/00 Enhanced I/O version
PMC-2/21/08/000/01/03/00 2-axis, 230VAC power
PMC-4/11/16/000/01/03/00 4-axis, 16 dig inputs
PMC-2/11/08/000/01/05/00 Ethernet Modbus TCP
PMC-2/11/08/000/02/03/00 Analog I/O 4-20mA
PMC-2/11/04/001/00/03/10 Base variant
PMC-2/11/02/000/00/01/10 Compact speed control
PMC-2/11/05/000/00/00/03 Updated firmware 0K
