Description

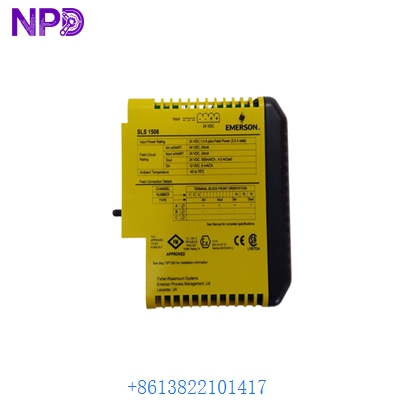

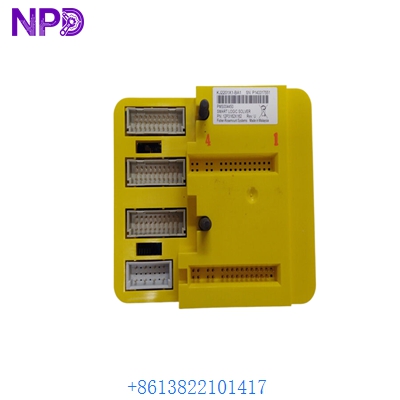

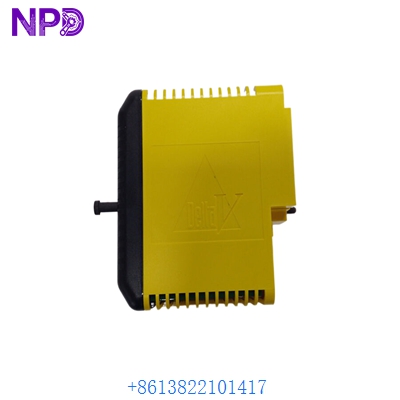

The EMERSON 12P3162X162 is a Safety Logic Solver (SLS 1508) designed for the DeltaV SIS (Safety Instrumented System). It provides high-integrity monitoring and control for critical safety loops, ensuring process industry standards like SIL3 are met through dedicated hardware redundancy and advanced diagnostics.
Technical Parameters
- Model: 12P3162X162 / SLS 1508
- Input Channels: 16 Configurable Channels
- Output Channels: Digital and Analog Safety Outputs
- Scan Rate: 50ms to 100ms (Configurable safety execution)
- Redundancy: Supports 1-out-of-2 (1oo2) voting architecture
Product Specifications
- Housing: Rugged modular design for carrier mounting
- Weight: 1.45 kg
- Indicators: Power, Error, and Individual Channel Status LEDs
- Power Supply: 24V DC Internal Safety Bus
Application Fields
- Emergency Shutdown Systems (ESD)
- Fire and Gas Detection Systems (FGS)
- Burner Management Systems (BMS)
- High-Pressure Protection Systems (HIPPS)
Origin & Operating Requirements
- Origin: USA (Emerson Process Management)
- Temperature: -40°C to 70°C (Extended operating range)
- Certification: IEC 61508 Certified for SIL3 applications
- Mounting: Specifically designed for DeltaV SIS Horizontal Carriers
Q&A
- Q: Can this module be used without a DeltaV Controller?
- A: No, it is part of the integrated DeltaV SIS architecture and requires a carrier and system connection.
- Q: What is the benefit of the “1508” designation?
- A: It refers to compliance with the IEC 61508 safety standard for functional safety.
- Q: Is there a distinction between the hardware and software licensing?
- A: Yes, while the hardware is physical, the SIS logic requires specific DeltaV software licenses to operate.
