EMERSON 12P4375X042-233C | KJ2005X1-BA1 | CE3007|DeltaV Controller

Description

• Model: 12P4375X042-233C (KJ2005X1-BA1) CE3007
• Brand: Emerson (DeltaV)
• Series: DeltaV M-Series (MD Plus)
• Core Function: High-performance system controller for real-time process logic
• Product Type: Controller CPU Module
• Key Specs: Supports Redundancy | 10/100 Mbps Ethernet Port | CE3007 Series

• CPU Type: MD Plus (Medium Duty Plus)
• Power Requirements: 24 V DC (via Controller Carrier)
• Current Draw: 0.35 A typical
• Redundancy: Supported (Requires redundant carrier and twin controllers)
• Communication: Dual redundant Ethernet ports (via carrier)
• Protocols: DeltaV LocalBus / Ethernet-IP / Modbus TCP
• Operating Temperature: -40 to 70 °C (-40 to 158 °F)
• Isolation: 30 V DC (continuous)
• Memory: Non-volatile Flash for application storage

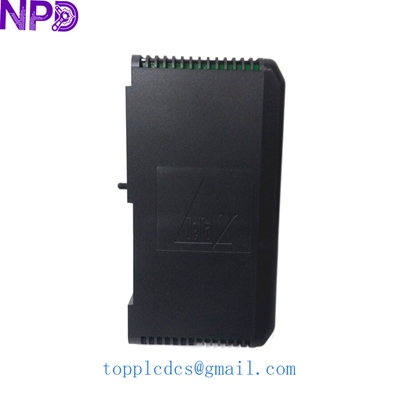

EMERSON CE3007 KJ2005X1-BA1 12P4375X042

Application Scenarios & Pain Points

When you’re running a critical process—say, a refinery’s catalytic cracker or a massive pharmaceutical bioreactor—the CE3007 KJ2005X1-BA1 is the “brain” that keeps everything synchronized. In my experience, the biggest headache with these M-Series controllers isn’t the hardware failing on its own; it’s the environmental toll or the complexity of a redundancy switchover failure. If the CPU hangs, your entire I/O subsystem goes “blind.” Having a MD Plus spare on-site is non-negotiable for plants aiming for five-nines availability, because when these units go end-of-life or lead times stretch to 20 weeks, a single failed capacitor can cost you millions in lost production.

Typical Application Scenarios:

1. Chemical Processing: Managing complex PID loops for temperature and pressure control in reaction vessels.
2. Oil & Gas: Controlling wellhead monitoring and emergency shutdown (ESD) interfaces where MD Plus performance is required.
3. Food & Beverage: Handling batch execution and Clean-in-Place (CIP) sequencing across multiple I/O racks.
4. Legacy Upgrades: Replacing older MD controllers with the MD Plus (12P4375X042) to increase processing speed and memory capacity.

Case Study: The “Brain Freeze” at a Pulp Mill

Background: A pulp and paper mill in Northern Europe was using a single-controller setup for their lime kiln.

Problem: The controller (an older MD unit) began experiencing “Watchdog Timeouts,” causing the kiln to trip repeatedly. The site team tried to reboot, but the frequency of the trips increased.

Solution: We provided an upgraded KJ2005X1-BA1 (MD Plus) from our newplcdcs inventory. Since the MD Plus is backward compatible with the MD’s footprint, it was a physical drop-in.

Result: We helped the customer verify their DeltaV software version (v11.3) to ensure the MD Plus driver was active. After the swap and a fresh download, the kiln was back to full capacity. The increased memory of the MD Plus also eliminated the processing bottlenecks they didn’t even realize they had.

Troubleshooting Quick Reference

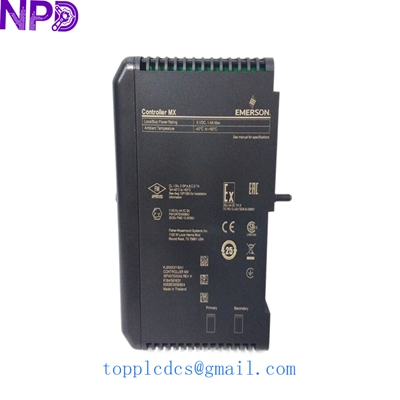

EMERSON CE3007 KJ2005X1-BA1 12P4375X042

Technical “Pro-Tips” (Avoiding Common Pitfalls)

Replacing a KJ2005X1-BA1 is straightforward, but there are two “gotchas” that trap even experienced engineers.

1. The Version Trap: Just because it fits the slot doesn’t mean it will run. DeltaV controllers require specific firmware based on your system’s software version. Before you pull the old one, check your DeltaV Explorer to see the “Major/Minor” revision. If our spare has a different version, you’ll need to use the “Flash Controller” utility before it will go to “Active” or “Standby.”
2. Redundancy Etiquette: If you’re swapping one unit of a redundant pair, never pull the “Active” controller first. Use the software to command a “Switchover,” verify the “Standby” has taken over control, and then remove the faulty unit.
3. Battery/Non-Volatile Memory: The MD Plus uses flash memory, but configuration changes that haven’t been “Saved to Controller” in the software will be lost on a power cycle. Always perform a “Download” after a replacement to be 100% sure the latest logic is running.

❗ Warning: Ensure the controller is fully seated and the locking levers are clicked into place. A partially seated controller can cause intermittent LocalBus errors that are incredibly hard to track down once the cabinet door is closed.
