Description
- Model: EMERSON 1C31166G02
- Brand: Emerson (Westinghouse Ovation)
- Series: Ovation Distributed Control System (DCS)
- Core Function: High-density RTD (Resistance Temperature Detector) Input Interface
- Product Type: Analog Input Module (Temperature)
- Key Specs: 8-Channel Input | 3-Wire RTD Support | Platinum/Copper/Nickel Compatibility
- Module Type: 8-channel RTD Input
- Input Resolution: 14-bit A/D conversion
- Isolation: 1,500 V AC (Channel-to-Logic)
- Common Mode Rejection: >90 dB at 60 Hz
- RTD Types: Pt100, Cu10, Ni120 (Selectable via software)
- Lead Wire Compensation: Automatic (3-wire configuration)
- Power Consumption: 3.5 W (Typical)
- Scan Rate: 100 ms for all 8 channels
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Accuracy: ±0.1% of Full Scale at 25°C

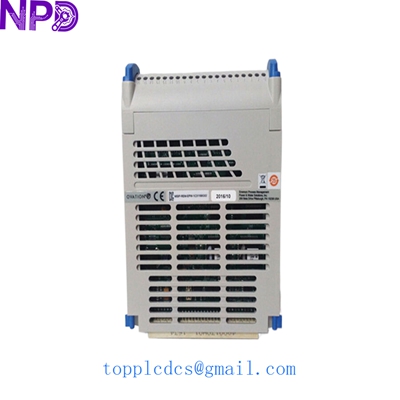

EMERSON 1C31166G02
Application Scenarios & Pain Points
Engineering Pain Points: In power generation or heavy steam applications, temperature drift isn’t just a number—it’s the difference between a stable turbine and an emergency trip. The 1C31166G02 solves the classic “noisy signal” problem in high-EMI (Electromagnetic Interference) environments. When a standard RTD card starts jumping ±5 degrees due to poor isolation, you need a module with the specific filtering hardware found in the Ovation line.
Typical Application Scenarios:
- Power Plant Steam Turbine Monitoring Measuring bearing temperatures and casing heat. High reliability is mandatory here because a false high-temp reading can trigger a costly, unnecessary trip.
- Large Motor Winding Protection Monitoring the internal stator temperatures of 10,000 HP motors to prevent insulation breakdown.
- Heat Recovery Steam Generators (HRSG) Precise thermal profiling across multiple points in the boiler system to optimize efficiency.
- Petrochemical Refineries Managing exothermic reaction temperatures in reactors where a 1-degree deviation affects product quality.
Case Study: The “Phantom Alarm” in a Combined Cycle Plant
Background: A mid-sized power plant in Southeast Asia kept receiving intermittent “High-High Temp” alarms on their feedwater pumps. The system used older, third-party RTD converters that were failing due to heat soak in the local cabinet.
Problem: Every time the alarm hit, the DCS would throttle the pumps, causing the boiler level to fluctuate. The plant was losing stability and couldn’t run at 100% capacity.
Solution: We bypassed the external converters and integrated the 1C31166G02 directly into the Ovation rack. This allowed for direct 3-wire RTD termination with internal compensation.
Result: The signal noise floor dropped by 75%. The “phantom” alarms vanished, and the plant resumed full-load operations within 48 hours of installation. Total ROI? Saved an estimated $45,000 in lost generation capacity in the first week alone.

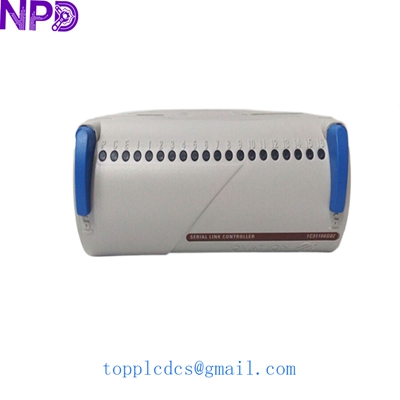

EMERSON 1C31166G02
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Impact on Cost |
| 1C31166G02 | 1C31166G01 | ⚠️ Software Compatible | G01 usually supports fewer RTD types | -10% |
| 1C31166G02 | 5X00070G01 | ✅ Direct Replacement | Later revision, fully backward compatible | +5% |
| 1C31166G02 | 1C31169G01 | ❌ Incompatible | This is a Thermocouple module, not RTD | N/A |
Integrator’s Advice: If you can’t find the G02, the 5X00070G01 is your best bet. It’s the newer “Gold” standard for Ovation RTD inputs. If you are forced to use a G01, check your I/O constants in the configuration tool first to ensure your specific RTD curve (like Pt100) is supported by that firmware version.
EMERSON 1C31166G02
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to Module | Quick Check | Action |
| “Bad Quality” in SCADA | Broken lead wire | ❌ Low | Measure resistance at the terminal block (A to B) | Check field wiring/sensor |
| Constant 0% or 100% reading | Blown Input Channel | ✅ High | Swap the sensor to a known good channel on the same module | Replace module if fault follows the channel |
| Erratic/Jumping Signal | Ground Loop / EMI | ⚠️ Medium | Ensure shield is grounded at the DCS side only | Check shielding & grounding |
| Module “Red Light” (FAIL) | Internal A/D Failure | ✅ High | Power cycle the rack. If the light stays red, it’s dead | Replace 1C31166G02 immediately |
| Slow Response Time | Software Filtering | ❌ Low | Check the “Scan Rate” and “Filter Constant” in Ovation Studio | Adjust software parameters |
Pro Tip from the Field: Before you swap the module, always check the terminal header. These Ovation modules use a “swing-out” terminal block. Sometimes the pins get slightly oxidized over 10 years of vibration. Unplug it, give it a quick spray with electronic contact cleaner, and reseat it. If that doesn’t fix your “Internal Fault” light… well, give us a call, because the A/D converter has likely reached its end of life.
Strategic Quality Assurance (Our SOP)
We don’t just “box and ship.” Every 1C31166G02 undergoes a rigorous validation process:
- Physical Inspection: Verified for zero corrosion or capacitor swelling.
- Live Test: Mounted on an Emerson Ovation test rack. We simulate RTD inputs using a Fluke 724 Temperature Calibrator across 0%, 50%, and 100% scales.
- Communication Check: Verified that the module is recognized by the Controller and reports “Good Health” in the diagnostic buffer.
- ESD Safe Packaging: Vacuum-sealed in anti-static bags with heavy-duty foam cushioning.
