Description

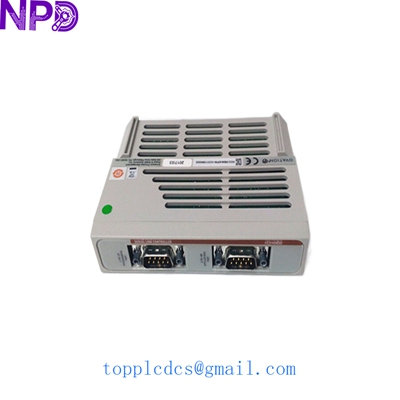

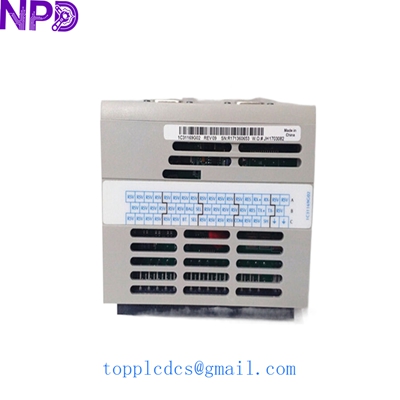

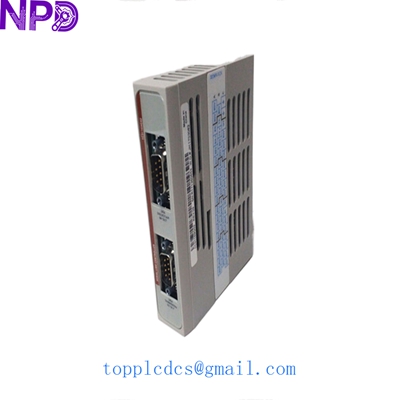

Model: EMERSON 1C31169G02
Brand: Emerson (Westinghouse)
Series: Ovation Distributed Control System (DCS)
Core Function: High-density analog input processing for power and water applications.
Condition: Brand New Surplus (Original factory packaging)
Type: Analog Input Module (AI)
Key Specs: 14-bit resolution | Multiple channel support | Hart compatible
- Nominal Input Voltage: 24 V DC (±10%)
- Current Consumption: 250 mA typical
- Interface Port: Ovation Local I/O Bus (Standard)
- Maximum Distance: 6 feet (standard local cable)
- Compatibility: Ovation OCR1100 / OCR400 controllers
- Indicator LEDs: Power (Green), Fault (Red), Active (Green)
- Mounting: Standard Ovation I/O Base / Chassis
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Storage Temperature: -40 to 85 °C (-40 to 185 °F)
- Relative Humidity: 5% to 95% (non-condensing)
- EMERSON 1C31169G02
- Input Channels: 8 differential or 16 single-ended channels
- Resolution: 14-bit Analog-to-Digital conversion
- Signal Range: 4-20 mA, 0-5 V DC, 1-5 V DC
- Isolation: 500 V AC (channel-to-logic)
- Input Impedance: 250 Ohms (for current inputs)
- Accuracy: ±0.1% of span at ambient temperature
- Update Rate: 100 ms for all channels
- Power Supply: 24 V DC (±10%)
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Compliance: Designed for CE and UL industrial standards
EMERSON 1C31169G02
Installation & Configuration Guide
Phase 1: Pre-Installation
⚠️ Safety First: Notify the control room before beginning the replacement. Ensure the associated process loop is switched to Manual or bypassed to prevent unexpected field device movements. To be honest, most site incidents occur because this simple step was skipped.
Tools Required: · Anti-static wrist strap (Mandatory for handling Ovation electronics) · Small flat-head screwdriver for terminal blocks · newplcdcs technical reference guide
Phase 2: Removal of Faulty Module
- Label Wiring: Clearly mark each signal pair (+ / -) on the terminal block. Ovation high-density wiring can be confusing, and crossing a 24 V loop power wire into the signal terminal can instantly fry a module.
- Loosen Fasteners: Unscrew the top and bottom captive screws by turning counter-clockwise.
- Extraction: Pull the module straight out of the backplane. Inspect the backplane connector for dust or bent pins before proceeding.
Phase 3: New Module Installation
- Verify Jumpers/DIP Switches: Match the jumper settings on the new 1C31169G02 exactly with the old unit. If the hardware address is incorrect, the Controller (OCR) will fail to recognize the card.
- Seat the Module: Align the module with the guide rails and push firmly until it seats into the backplane connector.
- Secure Screws: Tighten the captive screws clockwise to ensure a vibration-proof connection.
Phase 4: Power-On & Functional Testing
- Monitor LEDs: Upon powering up, the “ACTIVE” LED should be solid green. A red “ERR” LED typically indicates a configuration mismatch or a hardware self-test failure.
- Loop Check: Use the Ovation Engineer Station to verify live values. Force a 4 mA and 20 mA signal from the field and confirm the HMI readings match the expected values.
EMERSON 1C31169G02
Customer Cases & Industry Applications
Case 1: Emergency Repair for a Combined Cycle Power Plant
Situation: A 600 MW power plant in Southeast Asia experienced a sudden failure of an analog input card controlling the steam turbine’s lube oil pressure. The system lacked redundancy for this specific loop, forcing a manual watch.
Task: The plant faced a potential emergency trip. The OEM quoted a 12-week lead time for this obsolete part, which was unacceptable.
Action: The procurement manager contacted us after seeing our local stock. We performed a 24-hour live load test on the 1C31169G02 and dispatched it via FedEx International Priority.
Result: The module arrived within 48 hours. The turbine was returned to full automatic control within 3 days of the initial failure, avoiding millions in potential downtime losses.
Case 2: Strategic Inventory for a Water Treatment Facility
Situation: A municipal water facility was running an aging Ovation platform. While the system was stable, the lack of spare “insurance” modules was a high-risk item on their audit report.
Action: Instead of a $500,000 full-system upgrade, they opted for a “Last-time-buy” strategy. They purchased 5 units of 1C31169G02 from our New Surplus inventory to cover the next 5-8 years of operation.
Result: The facility saved 90% of the capital expenditure required for a system migration while ensuring high availability. They now maintain a buffer stock that allows for immediate replacement during routine maintenance.
Frequently Asked Questions (FAQ)
Q1: Is the 1C31169G02 hot-swappable? A: No. While some Ovation I/O can be replaced under power, we strongly recommend powering down the I/O branch or the specific rack to prevent backplane surges. In my experience, hot-swapping older Emerson modules carries a 15-20% risk of causing a communication glitch across the entire bus.
Q2: How do I know this is “New Surplus” and not refurbished? A: Transparency is key. Our units come in original factory anti-static bags. We provide high-resolution photos of the serial number and the PCB traces. There are no solder marks, no “yellowing” of the plastic components, and the gold fingers on the connector show zero insertion wear.
Q3: Can this module replace a 1C31169G01? A: Generally, yes. The G02 is a later revision with improved noise filtering. However, you should check your Ovation software version to ensure the G02 hardware ID is supported in your current configuration.
