Description
Product Parameters
- Model Number: 1C31205G01
- Series: Ovation Distributed Control System (DCS)
- Module Type: Bus Amplifier / Repeater
- Compatibility: Ovation Local I/O Branch
- Input Voltage: 24V DC (via backplane)
- Status Indicators: LED for Power, Activity, and Error status
- Mounting: Standard Ovation I/O Base / DIN Rail
- Operating Temperature: 0°C to +60°C
Product Description
The Emerson 1C31205G01 is a Local I/O Bus Amplifier module specifically designed for the Ovation Distributed Control System (DCS). Its primary function is to extend the communication distance and signal integrity of the local I/O bus between the controller and the various I/O branches. In large-scale installations where I/O modules are distributed across multiple cabinets, signal degradation can occur; the 1C31205G01 amplifies and reshapes these signals to ensure reliable high-speed data transfer. This prevents communication timeouts and data corruption, maintaining the deterministic performance required for critical power generation and water treatment applications.
Application Fields
This module is a staple in power plant automation, particularly in fossil fuel and hydroelectric facilities managed by the Ovation platform. It is also extensively used in large-scale wastewater treatment plants and industrial process control environments. It is deployed whenever the physical distance of the I/O bus exceeds standard limits or when a high density of I/O modules requires additional signal boosting to maintain network stability.
Product Specifications
- Weight: 0.35 kg
- Dimensions: 115 mm x 35 mm x 105 mm
- Origin: USA

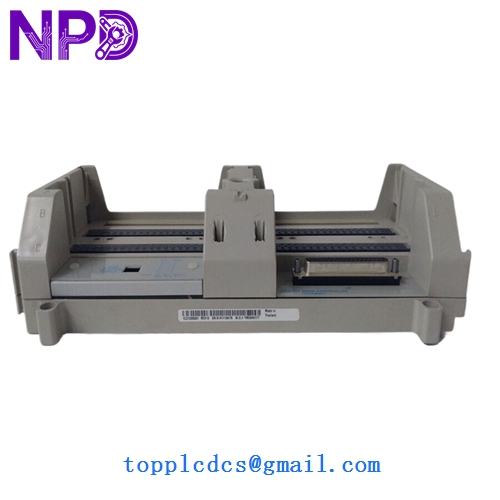

EMERSON 1C31205G01

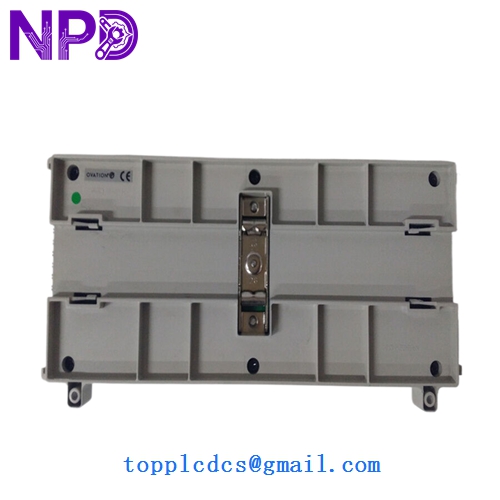

EMERSON 1C31205G01
EMERSON 1C31205G01
Operational Precautions
- Bus Termination: Ensure that the I/O bus is properly terminated at the end of the branch; using an amplifier without correct termination can lead to signal reflections and intermittent hardware errors.
- Hot-Swapping: While Ovation modules are designed for resilience, always check the specific controller’s redundancy status before removing a bus amplifier to avoid dropping an entire branch of I/O.
- Firmware Sync: Verify that the 1C31205G01 hardware revision is compatible with your current Ovation software release (e.g., 3.3.x, 3.5.x) to ensure full diagnostic reporting.
- Cabling: Use only Emerson-certified internal bus cables; third-party cables may not meet the impedance requirements, rendering the amplifier less effective.
Recommended Similar Product Models
| Model Number | Category | Primary Function | Feature |
|---|---|---|---|
| 1C31203G01 | Ovation I/O | Interface Module | Standard Branch Interface |
| 5X00070G01 | Ovation I/O | Power Supply | 24V DC Field Power |
| 1C31116G01 | Ovation I/O | Digital Input | 16-Channel Contact Sense |
| 1C31122G01 | Ovation I/O | Analog Output | 4–20 mA Control |
| 1C31179G01 | Ovation I/O | Relay Output | 8-Channel Form C |
