Description
- Model: EMERSON 1C31224G01
- Brand: Emerson (Westinghouse)
- Series: Ovation Control System
- Core Function: Analog/Digital process interface for Ovation DCS
- Type: Input/Output Interface Module
- Key Specs: High-density I/O | Ovation bus compatible | Field-side isolation
- Compatibility: Westinghouse Ovation DCS Systems
- Input Voltage: Logic side powered via baseplate
- Mounting Type: Modular plug-in to Ovation I/O base
- Signal Isolation: Galvanic isolation between field and logic
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to 85°C
- Humidity: 5% to 95% non-condensing
- Status Indicators: Front-panel LED diagnostics
- Dimensions: Standard Ovation I/O form factor

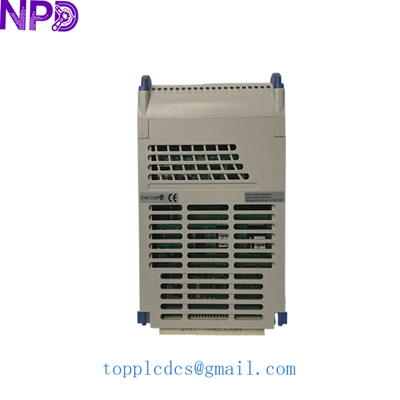

EMERSON 1C31224G01
Installation & Configuration Guide
Pre-Installation (Prep time: 15 minutes)
⚠️ Safety Warning:
- This module is part of a live control system. Ensure you have the proper permit for hot-swapping if your specific Ovation configuration allows it; otherwise, power down the branch.
- Ground yourself using an ESD (Electrostatic Discharge) wrist strap. These older Westinghouse boards are sensitive to static.
Tools needed:
- Small flat-head screwdriver (for terminal blocks if needed)
- ESD-safe bag for the old module
- Flashlight to inspect the baseplate pins
Removal Steps
- Verify the Fault: Check the “ERROR” or “FAIL” LED on the front of the existing module.
- Identification: Note the exact slot number and the labeling on the attached cables.
- Disengage: For Ovation modules, typically you loosen the top and bottom retaining screws.
- Extraction: Pull the module straight out. Do not rock it side-to-side, as you might bend the high-density pins on the baseplate.
- Inspection: Look at the backplane connector. If you see any charred pins or dust, clean it with compressed air before inserting the new one.
Installation Steps
- Check the Revision: Ensure the “G01” suffix matches your previous hardware. Different “G” versions in the Emerson/Westinghouse ecosystem can occasionally have different hardware offsets.
- Alignment: Slide the module into the guides.
- Seating: Firmly press until the connectors are fully seated. You should feel a solid engagement.
- Securing: Tighten the retaining screws to ensure the module doesn’t vibrate loose (common in turbine hall environments).
Testing & Commissioning
- Power Up: Observe the LED sequence. The “Active” light should go green once the controller recognizes the node.
- Software Check: Open the Ovation Developer Studio or Graphics Builder. Verify that the point quality has changed from “BAD” or “TIMEOUT” to “GOOD”.
- I/O Loop: If this is an input module, force a small signal at the field junction box to ensure the value updates in the DCS database.

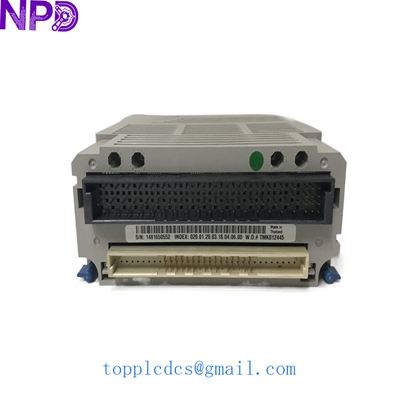

EMERSON 1C31224G01
Customer Cases & Industry Applications
Case 1: Power Plant Emergency Recovery
Situation: A 600MW coal-fired power plant in Southeast Asia experienced a sudden failure of an Ovation I/O branch. The 1C31224G01 module responsible for feed-water pump monitoring failed, causing a “Bad Quality” signal that threatened a boiler trip.
Problem: The plant’s internal stores were empty. Emerson’s official lead time for this legacy part was quoted at 14 weeks because the specific revision was out of production.
Action: The maintenance lead contacted us on a Tuesday. We pulled a New Surplus 1C31224G01 from our Shenzhen warehouse, performed a 24-hour soak test on our Ovation test rig, and dispatched it via DHL Express the same day.
Result: The part arrived at the plant on Thursday morning. The module was swapped during a scheduled shift change, and the signal was restored immediately. The plant avoided a full shutdown, saving an estimated $200,000 in lost generation revenue.
Case 2: Strategic Stocking for Aging Infrastructure
Situation: A municipal water treatment facility was running an Ovation system installed in the early 2010s. While the system was stable, they were increasingly worried about the scarcity of “G-series” modules.
Action: We conducted a site audit of their critical spares and identified the 1C31224G01 as a high-risk item due to its frequency of use across their filtration racks. We supplied them with a “Last-time-buy” bundle of 2 units.
Result: Six months later, a lightning strike damaged several I/O cards. Because the spares were already on-site, the MTTR (Mean Time To Repair) was reduced from days to under an hour.
EMERSON 1C31224G01
Frequently Asked Questions (FAQ)
Q: Is the 1C31224G01 hot-swappable? A: In most Ovation architectures, the I/O modules are designed for hot-plugging. However, in my experience, if the module is part of a critical safety loop or a non-redundant controller branch, it is always safer to put the loop in manual or bypass before swapping.
Q: Why should I buy “New Surplus” instead of a cheaper used unit from eBay? A: To be honest, used units from unverified sources often come from decommissioned plants where they’ve been running in high-heat environments for 15 years. The electrolytic capacitors on those boards are “ticking time bombs.” Our New Surplus units have never been energized in a production environment, giving you a much longer MTBF (Mean Time Between Failures).
Q: How do I know this isn’t a refurbished board? A: We provide high-resolution photos of the solder side and the components before shipping. Refurbished boards usually show signs of “re-work,” such as flux residue or non-factory soldering on the capacitors. Our boards are factory-clean. You can also verify the newplcdcs database for serial number tracking.
Q: What if the module doesn’t work when it arrives? A: We offer a 12-month “no-hassle” warranty. If the module fails our diagnostic check or your on-site commissioning within the first year, we replace it. We can even provide a video of the module functioning on our test rack before we box it up.
