Description

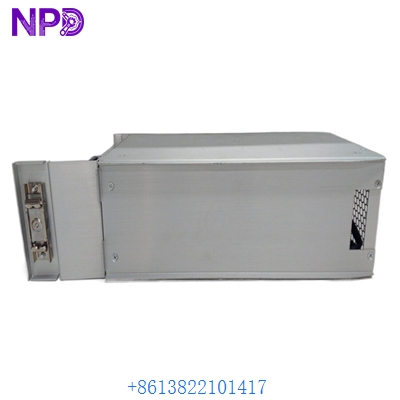

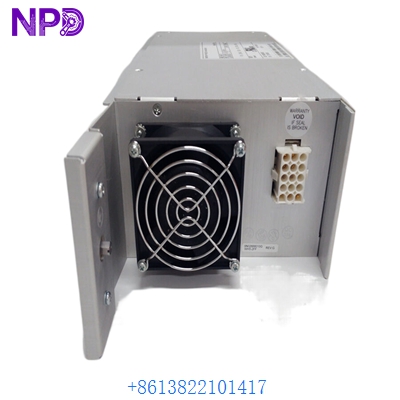

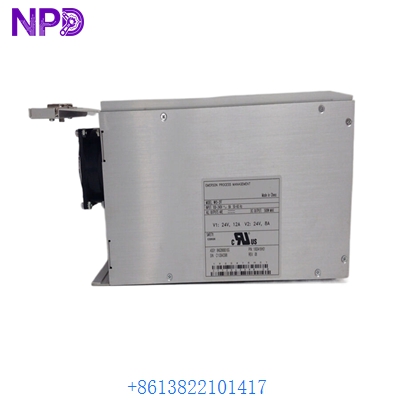

The Emerson 1X00416H01 is a high-performance WH5-2FF power supply module designed for the Ovation Distributed Control System (DCS). It ensures stable voltage regulation and critical power redundancy for industrial automation environments.
Key Parameters
- Part Number: 1X00416H01
- Model Series: Ovation WH5-2FF
- Input Voltage: 120/240 VAC or 24 VDC (Configuration dependent)
- Output Current: High-density current distribution for I/O modules
- Redundancy: Supports dual-module hot-standby configuration
Specifications
- Form Factor: Compact DIN-rail or rack-mount compatible
- Cooling: Passive convection cooling
- Diagnostic LEDs: Integrated status indicators for Power, Fault, and Load
- Isolation: Galvanic isolation between input and output circuits
Application Fields
- Power generation and grid management
- Water and wastewater treatment facilities
- Chemical and petrochemical processing
- General DCS system power distribution
Q&A
- Q: Is the 1X00416H01 hot-swappable? A: Yes, it is designed for live replacement within redundant Ovation power systems.
- Q: Does it include over-voltage protection? A: Yes, it features built-in surge and over-current protection circuits.
- Q: Can it be used with older Ovation hardware? A: It is backward compatible with most standard Ovation I/O bases.
Selection Requirements
- Verify the specific input voltage source available at your site.
- Ensure the total current draw of connected I/O does not exceed module limits.
- Confirm if your system architecture requires a single or redundant power setup.
