Description
- Model: EMERSON 5X00062G01
- Brand: Emerson (Westinghouse)
- Series: Ovation Distributed Control System (DCS)
- Core Function: High-speed process controller and interface module
- Type: Processor/Controller Module
- Key Specs: Proprietary Ovation Architecture | Backplane Powered | High-reliability Logic
- Supply Status: ⚠️ Obsolete (Limited Stock Available)
- System Compatibility: Ovation OCR161 / OCR400 / OCR1100
- Power Requirements: Logic power supplied via Ovation subrack
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Cooling: Natural convection (Maintain proper cabinet airflow)
- Diagnostic LEDs: Power, Run, Error, and Network Status
- Isolation: Optical isolation for noise immunity
- Firmware Support: Compatible with multiple Ovation software drops (verify via serial)
- Connectivity: High-speed Ovation Data Link interface

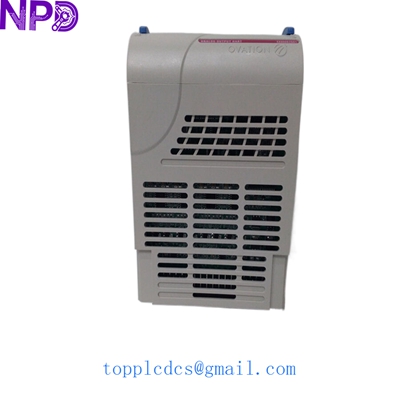

EMERSON 5X00062G01
Installation & Configuration Guide
Preparation (Est. Time: 20 minutes)
⚠️ Safety Protocol:
- Critical: Ensure the controller pair is in a redundant configuration if you intend to swap “hot.” If non-redundant, the process will stop.
- Verify that the firmware version on the new 5X00062G01 is compatible with your current software drop.
- Use a grounded ESD wrist strap. The processor chips on this module are highly susceptible to static damage.
Removal Steps
- Backup: Perform a “Save” or “Checkpoint” of the controller database in the Ovation Developer Studio.
- Identification: Mark the slot and any fiber/Ethernet cables connected to the front ports.
- Disengage: Loosen the captive screws at the top and bottom of the module faceplate.
- Extraction: Slide the module out of the rack. Note: These modules can be warm to the touch; this is normal for the Ovation processor series.
- Pin Inspection: Inspect the backplane for any signs of dust or bent pins using a flashlight.
Installation Steps
- Verification: Compare the “G01” suffix of the replacement with the original.
- Seating: Align the board with the rack guides and push firmly until the faceplate is flush with the rack frame.
- Securing: Hand-tighten the captive screws. Do not use power tools; over-tightening can stress the PCB.
- Cable Re-attachment: Reconnect the communication cables to the front ports as marked during removal.
Testing & Commissioning
- LED Observation: Upon power-up, the module will perform a self-test. The “Run” LED should eventually turn solid green.
- Node Status: Check the Ovation Diagnostic Tool. The node should transition from “Offline” to “Backup” (if redundant) or “Master.”
- Data Verification: Ensure that the controller is scanning I/O and that the “Point Quality” in the HMI remains “Good.”
- Final Check: Monitor the module temperature and error logs for the first 60 minutes of operation.
EMERSON 5X00062G01
Customer Cases & Industry Applications
Case 1: Preventing an Unplanned Outage in a Combined Cycle Plant
Situation: A power plant in East Asia noticed intermittent “Controller Failure” alarms on their Ovation network. Diagnostics pointed to a failing 5X00062G01 processor module in the heat recovery steam generator (HRSG) control cabinet.
Problem: The plant was operating at peak summer load. A total failure of the processor would have tripped the turbine, resulting in massive fines from the grid operator.
Action: We supplied a New Surplus 5X00062G01 within 24 hours. Because the plant had a redundant pair, the maintenance team was able to swap the failing “Backup” controller without interrupting the “Master” controller.
Result: The swap was completed in 15 minutes. The plant maintained full power output, and the redundancy was restored. The customer later noted that our module’s price was significantly lower than the “Emergency Lead Time” price quoted by the OEM.
Case 2: Extending the Life of a 15-Year-Old DCS
Situation: A municipal utility provider was told their Ovation system was “End of Life” and they needed a $2M upgrade. However, the hardware was still performing well, except for a few aging processor modules.
Action: They decided to bypass the forced upgrade and instead built a “Strategic Buffer” of key modules, including the 5X00062G01. We provided three tested, New Surplus units for their warehouse.
Result: Two years later, when a power surge damaged one of their active controllers, they had the part on the shelf. They avoided the $2M capital expenditure and have successfully extended their system’s lifespan by another projected 5-7 years.
Frequently Asked Questions (FAQ)
Q: Is the 5X00062G01 a direct replacement for other 5X series modules? A: Not necessarily. While many Ovation modules look similar, the 5X00062G01 has specific memory and processor clock speeds. Always match the full part number and the “G” suffix (e.g., G01 vs G02) to ensure hardware-level compatibility.
Q: Does the module come with the application software installed? A: No. Like almost all DCS controllers, the 5X00062G01 is shipped with factory firmware. You must download your specific project configuration and database from your Ovation Engineer Station once the module is installed.
Q: How do you verify the “New Surplus” condition? A: We look for three things: original factory packaging (where possible), pristine gold fingers on the backplane connector (no insertion marks), and clean, un-aged solder joints. We also offer a newplcdcs serial number verification to confirm the production batch.
Q: What is the typical lead time for this part? A: For this specific model, we typically ship within 24 hours of payment. Since it is a critical “Heart of the System” component, we prioritize these for immediate dispatch via international express (DHL/FedEx).
