Description

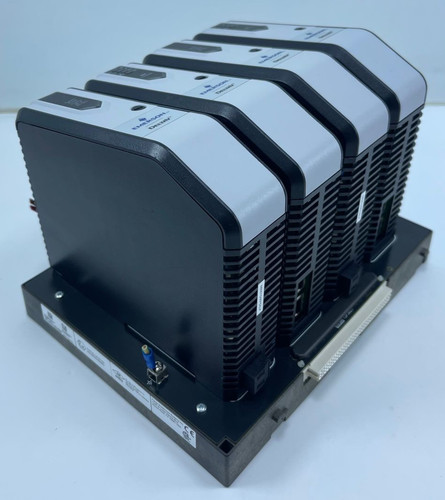

The Emerson DeltaV Controller MX (KJ2005X1-BA2) is a high-performance, redundant-capable controller designed for the DeltaV Distributed Control System (DCS). It serves as the primary processing engine for large-scale industrial processes, managing I/O data, executing complex control strategies, and communicating with workstation software.
The KJ1501X1-BC4 is the corresponding 4-Wide Horizontal Carrier (or mounting assembly) designed to house the controller and its associated power supplies or redundant partners. This modular assembly is a standard component in DeltaV systems, engineered to ensure secure connectivity and rapid deployment in industrial cabinets.
Technical Specifications ⚙️
| Feature | Specification |
|---|---|
| Component | DeltaV Controller MX (KJ2005X1-BA2) |
| Carrier | 4-Wide Horizontal Carrier (KJ1501X1-BC4) |
| System | Emerson DeltaV DCS |
| Function | Real-time control and data processing |
| Processing Power | Optimized for complex control strategies and large I/O counts |
| Mounting | DIN-rail or rack-mount (horizontal configuration) |
| Communication | Built-in redundant I/O network ports |
| Redundancy | Supports controller and power supply redundancy |
| Operating Temp | -40°C to +70°C (Industrial grade) |
| Diagnostic Status | Integrated system health and power LEDs |
Recommended DeltaV Series Components 📦
To ensure a robust and fully functional DeltaV control environment, these components are frequently paired with the MX controller and carrier:
- KJ2006X1-BA1 (DeltaV S-series Power Supply)
- KJ1502X1-BC1 (I/O Interface Carrier)
- KJ3221X1-BA1 (Analog Input Module)
- KJ3222X1-BA1 (Analog Output Module)
- KJ3224X1-BA1 (Discrete Input Module)
- KJ3225X1-BA1 (Discrete Output Module)
- KJ4001X1-BA1 (S-series System Power Supply)
- VE4002S1K1 (DeltaV I/O Interface Card)
- KJ1501X1-BC2 (2-Wide Horizontal Carrier)
- KJ3004X1-BA1 (Serial Interface Module)
