Description

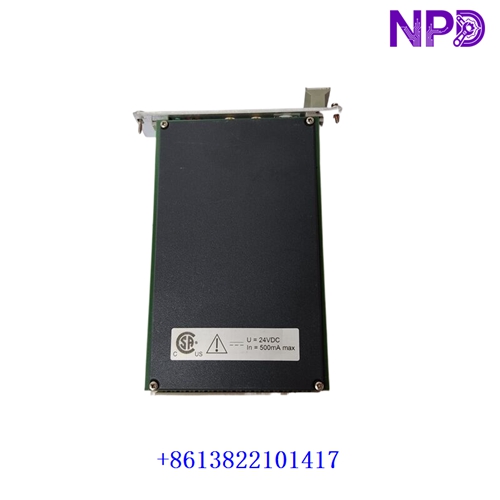

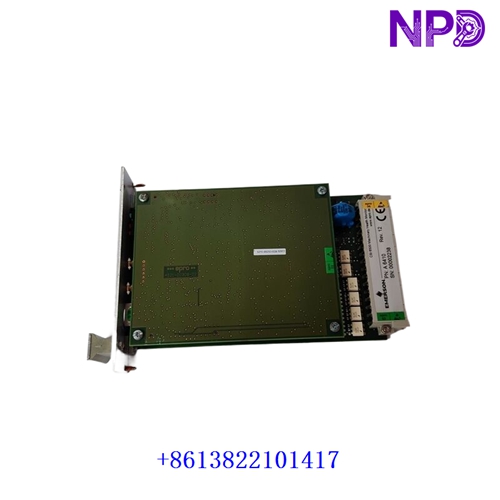

The Emerson / EPRO A6410 (often referenced by material number 9199-00005) is a specialized dual-channel monitoring module engineered for the AMS 6500 (CSI 6500) machinery health platform. It provides critical, API 670-compliant protection and measurement for steam and gas turbines by tracking mechanical parameters such as turbine casing thermal expansion and control valve position.
| Parameter | Specification |
| Brand / Manufacturer | Emerson / EPRO (AMS 6500 Machinery Health) |
| Model / Part Number | A6410 (Material No. 9199-00005) |
| Product Type | Dual-Channel Valve and Case Expansion Monitor Card |
| Sensor Compatibility | Inductive displacement sensors (e.g., 9350 series) |
| Channels / Inputs | 2 independent channels (single-slot 3U plug-in module format) |
| Signal Outputs | Buffered raw signals, proportional outputs, 0/4–20 mA, and 0–10 VDC |
| Compliance & Standards | API 670 compliant for machinery protection systems |
| Product Status | Industrial Automation Spare Part / Active System Support |
First-Run Inspection Checklist
- ☑ Physical & Faceplate Integrity
Inspect the module housing, front-panel configuration sockets, rear edge connector pins, and locking levers for transit damage or bent pins.
- ☑ Card Slot & Backplane Alignment
Ensure that the target AMS 6500 rack slot is clean, unobstructed, and mechanically aligned to prevent backplane pin damage during module insertion.
- ☑ Sensor & Power Wiring Check
Verify that displacement transducers, rack power rails, and field signal wiring are correctly landed on the system terminal blocks prior to system energization.
Routine Maintenance & Servicing
- 🛠 Environmental Monitoring
Ensure that machinery protection rack cabinets maintain appropriate ambient temperatures and remain free of excessive dust, humidity, or corrosive agents.
- 🔌 Terminal & Connector Inspection
Periodically check plug-in terminal connections, signal wiring, and system grounding to guarantee secure mechanical seating and eliminate signal noise.
Troubleshooting & Common Issues
- ⚠️ Sensor Open/Short Alarms
If the module registers a transducer fault, check sensor gap voltage settings, inspect signal extension cables for physical damage, and verify loop power supplies.
- ⚠️ Module Self-Check Failures
If internal diagnostic faults trigger, verify proper module seating depth in the rack backplane, check input voltage stability, and review event logs via configuration software.
Safety Precautions
- 🔐 Qualified Personnel Only
Configuration, installation, and hardware maintenance must be executed exclusively by certified instrumentation technicians familiar with rotating machinery protection systems.
- ⚠️ Trip Bypass & System Isolation
Always engage appropriate trip bypass logic in the control system before performing maintenance, calibration checks, or swapping hardware modules connected to emergency shutdown circuits.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary function of the Emerson A6410 module?
A: It functions as a dual-channel case expansion and valve position monitor within the AMS 6500 rack system, protecting turbines against uneven thermal expansion and mechanical binding.
- ❓ Q2: Why is case expansion monitoring critical for steam turbines?
A: Monitoring axial casing expansion ensures the turbine housing expands smoothly during startup and load changes, preventing dangerous rotor-to-stator rubs and severe mechanical damage.
