Emerson KJ3222X1-BA1 | CE4003S2B3 | 12P2532X162 Controller

Description

• Model: EMERSON KJ3222X1-BA1 (Internal PN: 12P2532X162-233A)
• Brand: Emerson (Fisher-Rosemount)
• Series: DeltaV M-Series
• Core Function: MQ Controller for process logic and I/O communication
• Type: Distributed Control System (DCS) Controller
• Key Specs: Supports up to 750 DSTs | Redundancy capable | 10/100 Mbps Ethernet
  • Module Type: MQ High-Performance Controller
  • Part Number: KJ3222X1-BA1 / 12P2532X162
  • Revision: 233A (Standard MQ Revision)
  • Power Requirements: 24 V DC ±10% via System Power Supply
  • Input Current: 400 mA maximum
  • Operating Temperature: -40 to 70 °C (-40 to 158 °F)
  • Storage Temperature: -40 to 85 °C
  • Relative Humidity: 5 to 95%, non-condensing
  • Vibration: 1 mm peak-to-peak from 5 Hz to 16 Hz
  • Shock: 10 g ½-sine wave for 11 ms
  • Communication: Integrated 8-pin RJ-45 Ethernet ports

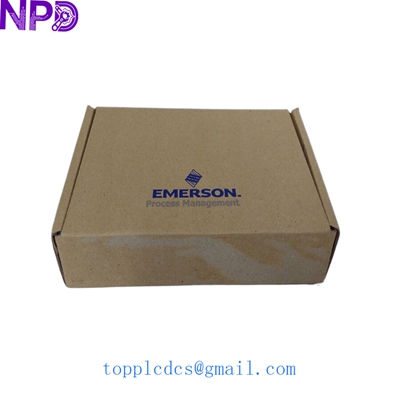

  EMERSON 12P2532X162-233A KJ3222X1-BA1 CE4003S2B3

  Installation & Configuration Guide

  Preparation (Est. Time: 25 minutes)

  ⚠️ Safety Protocol:

  1. If the system is currently running, ensure you have a redundant MQ controller (KJ3222X1-BA1) in the pair before attempting a live swap.
  2. Confirm the DeltaV software version (v10.3 or higher is typically required for MQ hardware).
  3. ESD Protection: Use a static-dissipative mat and wrist strap. These controllers use high-density CMOS components.

  Removal Steps

  1. Backup: Perform a full “Upload” and “Save” of the controller configuration in DeltaV Explorer.
  2. Decommission: In DeltaV Explorer, right-click the controller and select “Decommission” if it’s a standalone unit.
  3. Unlocking: Push the top and bottom red locking tabs on the controller carrier toward the center.
  4. Extraction: Pull the module straight out from the 2-wide or 4-wide carrier. Note the position of the address plug on the carrier—do not lose it.

  Installation Steps

  1. Address Plug: Ensure the address plug (the small plastic key on the carrier) is in the correct slot. This tells the new controller its network identity.
  2. Alignment: Align the KJ3222X1-BA1 with the carrier guides.
  3. Insertion: Press firmly until the red locking tabs click into place.
  4. Cabling: Reconnect the primary and secondary Ethernet cables to the top ports.

  Testing & Commissioning

  1. LED Check: Upon insertion, the controller performs a Power-On Self-Test (POST).
     • Green (Power): On
     • Green (Active): Flashing (searching for master) or Solid (running logic)
     • Red (Error): Should be OFF.
  2. Commissioning: Open DeltaV Explorer. The new controller will appear under “Decommissioned Nodes.” Right-click and select “Commission.”
  3. Download: Right-click the newly commissioned controller and select “Download” -> “All” to push the saved configuration and logic.


  EMERSON 12P2532X162-233A KJ3222X1-BA1 CE4003S2B3

  Customer Cases & Industry Applications

  Case 1: Petrochemical Plant Controller Recovery

  Situation: A refinery in the Middle East suffered an MQ controller failure in a non-redundant rack due to a power surge. The failing 12P2532X162-233A caused an immediate loss of visibility for the alkylation unit.

  Problem: Local Emerson agents quoted a 10-week delivery for a replacement KJ3222X1-BA1. Every hour of lost production cost the facility roughly $15,000.

  Action: We provided a New Surplus KJ3222X1-BA1 from our ready stock. We shipped it via “Next Flight Out” logistics, arriving at the site in 48 hours.

  Result: The site engineer installed the module and commissioned it within 30 minutes. The unit was back online in less than 3 days compared to the 70-day wait originally feared.

  Case 2: DeltaV System Expansion Project

  Situation: A pharmaceutical plant in Europe needed to add a new fermentation skid to their existing DeltaV v12 network.

  Action: They required an MQ controller to handle the increased I/O load. Instead of paying full “new list price” for a factory-order unit, they utilized our New Surplus inventory.

  Result: We supplied the KJ3222X1-BA1 at a 25% cost saving. The module was identical in revision (233A) to their current fleet, ensuring seamless integration and zero compatibility issues during the site acceptance test (SAT).

  Frequently Asked Questions (FAQ)

  Q: Can a KJ3222X1-BA1 (MQ) replace an older M5 controller? A: Generally, yes, but it requires a software upgrade in your DeltaV environment. MQ controllers offer significantly more memory and processing power than the older M5 units. I’ve found that most clients use this as an opportunity to modernize their system performance.

  Q: Is the 12P2532X162-233A the same as the KJ3222X1-BA1? A: Yes. KJ3222X1-BA1 is the “orderable” model number, while 12P2532X162-233A is the hardware part number printed on the side label. They are functionally identical.

  Q: Do you sell refurbished DeltaV modules? A: No. We strictly deal in New Surplus. In my experience, refurbished DCS controllers are too risky for critical processes; a single failed capacitor could cause a plant trip. Our units are “Clean/Never Used” stock.

  Q: How do I verify the firmware version? A: The firmware is usually automatically flashed to match your DeltaV system during the “Commissioning” and “Download” process. If your system is v11, the controller will run v11 firmware; if it’s v14, it will run v14.
