EMERSON KJ3241X1-BK1 | 12P4710X032 | SE4006P2 |DeltaV S-Series I/O Carrier

Description

• Model: KJ3241X1-BK1 (Equivalent to 12P4710X032)
• Brand: Emerson (DeltaV)
• Series: DeltaV S-Series (Safety / Standard I/O)
• Core Function: 8-Wide I/O Carrier for S-Series controllers and I/O modules
• Product Type: I/O Backplane / Interface Carrier
• Key Specs: Supporting SE4006P2 modules | Active backplane | Redundant power bus

• Module Series: DeltaV S-Series
• Capacity: 8 Slots for I/O modules
• Power Compatibility: Designed for use with SE4006P2 LocalBus power supplies
• Installation: DIN-rail mounted (Horizontal or Vertical)
• Communication: DeltaV LocalBus (Internal)
• Isolation: Provides physical and electrical separation for I/O modules
• Operating Temp: -40 to 70 °C (-40 to 158 °F)
• Environmental Protection: Conformal coating options available for G3 harsh environments

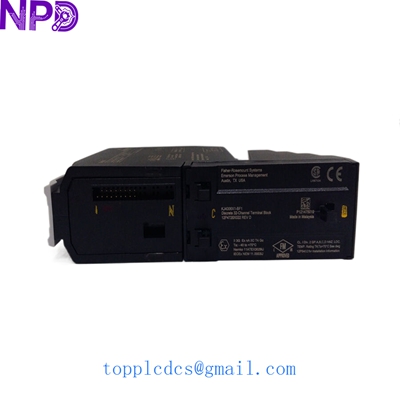

EMERSON KJ3241X1-BK1 12P4710X032 SE4006P2

Application Scenarios & Pain Points

The KJ3241X1-BK1 is a critical infrastructure component for the DeltaV S-Series. Unlike older M-Series carriers, the S-Series is designed for higher density and enhanced thermal performance. In my experience, the most common issue with these carriers isn’t electrical failure but mechanical wear on the connector pins or debris accumulation in the slots. When a slot fails on an 8-wide carrier, you risk losing communication with all modules on that branch of the LocalBus. Having a spare 12P4710X032 ensures that a single damaged slot doesn’t lead to a prolonged shutdown of an entire I/O rack.

Typical Application Scenarios:

1. Refinery Modernization: Upgrading legacy I/O to the S-Series to take advantage of Electronic Marshalling (CHARMs).
2. Redundant I/O Config: Providing the physical base for redundant I/O pairs in critical safety loops.
3. High-Density Cabinets: Utilizing the compact S-Series footprint to maximize I/O count in limited control room space.
4. Harsh Chemical Processing: Providing a robust, vibration-resistant mounting base for field-mounted I/O.

Case Study: The “Intermittent Bus” Mystery

Background: A specialty chemical plant reported that multiple I/O cards on one rack would occasionally “soft-fail” and then recover.

Problem: After swapping the I/O cards and the SE4006P2 power supply, the problem persisted. We inspected the KJ3241X1-BK1 carrier and found that several pins in Slot 4 had developed “fretting corrosion” due to high-frequency vibration from a nearby pump. The intermittent contact was causing noise on the entire carrier’s LocalBus.

Solution: We supplied a New Surplus KJ3241X1-BK1 from our newplcdcs stock.

Result: The replacement carrier resolved the communication errors instantly. We also recommended the customer add vibration isolators to the DIN rail to protect the new hardware.

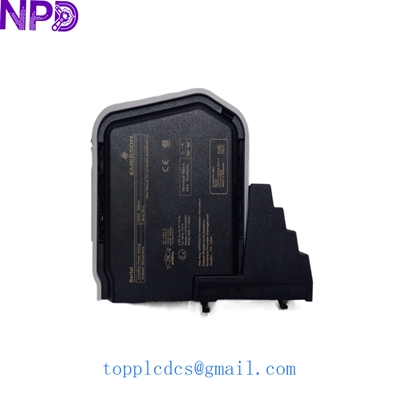

EMERSON KJ3241X1-BK1 12P4710X032 SE4006P2

Troubleshooting Quick Reference

EMERSON KJ3241X1-BK1 12P4710X032 SE4006P2

Technical “Pro-Tips” (Avoiding Common Pitfalls)

Replacing a 12P4710X032 carrier requires precision. Here is what I advise:

1. Pin Alignment: The S-Series connectors are dense. When inserting the I/O modules into the KJ3241X1-BK1, ensure the module is perfectly square to the carrier. If you feel resistance, pull back. Forcing the module will ruin the carrier pins.
2. Power Sequencing: While the S-Series supports many hot-swappable features, it is always best practice to power down the SE4006P2 before replacing the entire 8-wide carrier. This prevents any potential arcing across the bus connectors.
3. Address Identification: DeltaV identifies modules by their physical position. Ensure the carrier is mounted in the correct sequence on the rail so your software configuration matches the physical hardware.

❗ Warning: Always use the plastic slot covers on any unused slots on the carrier. This prevents dust and metallic particles from entering the LocalBus, which can cause short circuits later on.
