Description
EMERSON MMS6312 is a dual-channel rotational speed monitor from EPRO’s MMS6000 series, designed for precise shaft speed measurement in rotating machinery.
Product Overview
The MMS6312 processes signals from pulse sensors and triggering wheels to monitor rotational speed, standstill, and key-phases.
It supports independent or combined channel operation for direction detection and speed differential monitoring.

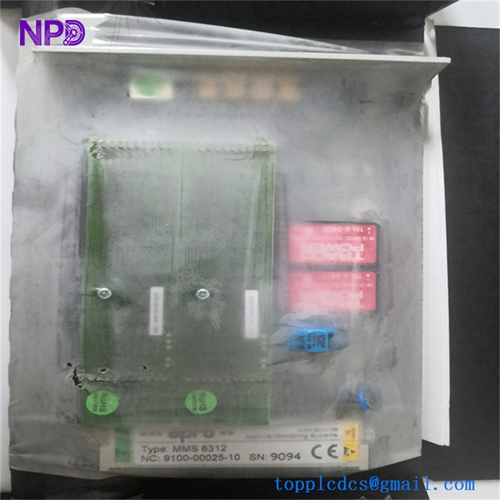

EMERSON EPRO MMS6312
Key Specifications
| Parameter | Details |
|---|---|
| Channels | 2 independent inputs |
| Measuring modes | Rotational speed, key pulse, standstill |
| Sensor compatibility | Pulse sensors with triggering wheels, eddy-current types |
| Supply voltage | 18-31.2 V DC (redundant inputs) |
| Power consumption | Max 6 W (250 mA at 24 V) |
| Outputs | Galvanically separated current outputs, relays |
| Communication | RS232/RS485 interfaces |
| Operating temperature | 0 to +65°C |
| Dimensions | 30 mm W x 128.4 mm H x 160 mm L (6TE/3HE) |
| Weight | Approx. 320 g |
| Protection | IP00 (module), IP21 (front) |
| Vibration tolerance | 0.15 mm (10-55 Hz), 16.6 m/s² (55-150 Hz) |
EMERSON EPRO MMS6312
The datasheet highlights self-diagnostics, hot-swappable design, and comprehensive sensor monitoring.
Origin
Manufactured by EPRO in Germany under Emerson for global machinery health applications.
Applications
-
Speed monitoring in turbines, compressors, and pumps.
-
Direction and differential speed detection in motors.
-
Multichannel redundant systems for critical rotating equipment.
Usage Guide
-
Mount in 19″ rack with redundant 24V DC power.
-
Connect pulse sensors and triggering wheels to inputs.
-
Configure parameters via RS232/RS485 using PC software.
-
Monitor relays and diagnostics for alarms and faults.
Technical Notes
Features extended self-checking, sensor self-test, and fail-safe operation; supports up to 31 modules per RS485 bus.
Similar Models
| Model | Description |
|---|---|
| MMS6110 | Dual channel shaft vibration monitor |
| MMS6120 | Single channel vibration monitor |
| MMS6210 | Dual channel speed monitor |
| MMS6410 | Process variable monitor |
| MMS6350 | Digital overspeed protection system |
