Description
Product Core Brief
- Model: EMERSON MMS6823 (Part No. 9100-00001-05)
- Brand: Emerson (Formerly epro GmbH)
- Series: MMS6000 Machine Protection System
- Core Function: Dual-channel shaft eccentricity measurement
- Product Type: Monitor Module
- Key Specs: 2-channel Eddy Current Sensor Input 4-20 mA Outputs Integrated Limit Value Logic

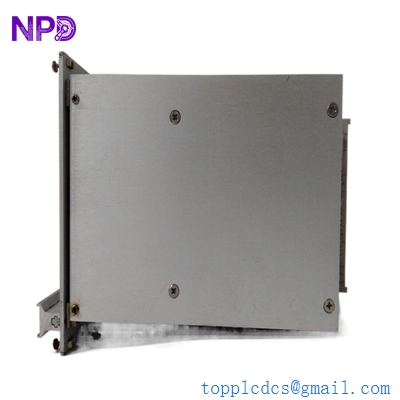

EMERSON MMS6823 9100-00001-05
Key Technical Specifications
- Input Channels: 2 independent channels for displacement/eccentricity
- Sensor Compatibility: epro PR6422, PR6423, PR6424, and PR6425 eddy current sensors
- Signal Processing: Peak-to-peak (Spp) measurement for shaft bowing
- Frequency Range: 0 Hz to 2,000 Hz
- Analog Outputs: 2 x 0/4…20 mA (proportional to eccentricity)
- Logic Outputs: 2 x Alert, 2 x Danger, 1 x Channel OK (Open collector)
- Supply Voltage: +24 Vdc (18 to 31.2 Vdc range)
- Communication: RS-232 for local configuration; RS-485 via backplane
- Configuration: Via MMS6000 configuration software
- Protection Class: IP20
Application Scenarios & Pain Points
When a large steam turbine is in the “turning gear” or “warming up” phase, shaft eccentricity monitoring is your most critical safety metric. If the shaft has a slight bend (bow) due to uneven cooling, and you attempt to ramp up to full speed, the resulting vibration can destroy the bearings or cause internal blade rubs. The MMS6823 is specifically designed to measure this “peak-to-peak” displacement at low speeds.
The biggest headache for maintenance teams is that the MMS6000 series is aging. Finding a specific version like the 9100-00001-05—especially one that hasn’t spent 10 years in a humid warehouse—is becoming difficult. When these modules fail, you often lose the interlock that allows the turbine to roll off the turning gear, essentially trapping your plant in a shutdown state.
Typical Application Scenarios:
- Power Generation – Steam Turbine Start-up Monitoring shaft bow during slow-roll to ensure the rotor is thermally stable before synchronization.
- Nuclear Power – Large Turbo-Generator Sets Providing high-accuracy displacement data for long-term machinery health tracking.
- Pulp & Paper – Large Refiner Shafts Protecting massive rotating elements from mechanical damage during start-stop cycles.
Case Study: The “Stuck” 300 MW Unit
Background: A thermal power plant was attempting to restart after a minor boiler repair. As the turbine was on turning gear, the MMS6823 module suddenly reported a “Channel Fail” (OK LED went off).
The Problem: The logic interlock prevented the turbine from increasing speed because it “lost” the eccentricity data. The plant was losing revenue every hour the generator wasn’t on the grid. The OEM quoted a 12-week lead time for a new module.
The Solution: We shipped a New Surplus 9100-00001-05 from our stock via priority air freight. I also sent the customer the wiring pinout for the RS-232 configuration cable because they couldn’t find theirs.
Result:
- Recovery: The module was installed and configured within 48 hours of the failure.
- Saving: Prevented nearly 2 weeks of additional downtime.
- Outcome: The turbine safely rolled off the turning gear once the eccentricity was verified as within limits.

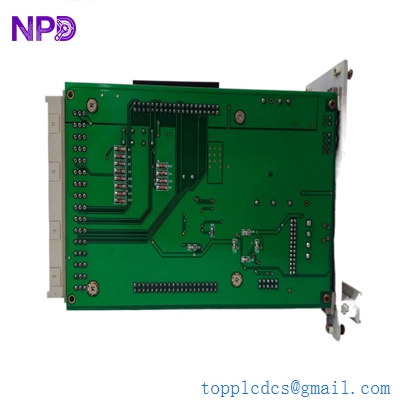

EMERSON MMS6823 9100-00001-05
Compatible Replacement Models
The MMS6823 has very specific firmware versions. You must be careful when swapping “similar” modules.
| Original Model | Replacement/Alternative | Compatibility | Key Differences | Change Required |
| MMS6823 (9100-00001-05) | MMS6823 (9100-00001-04) | ⚠️ Software Compatible | Minor hardware revision difference. | Check configuration parameters; usually a direct swap. |
| MMS6823 | MMS6110 | ❌ Incompatible | MMS6110 is for vibration, not eccentricity. | Wiring and logic are completely different. |
| MMS6823 | Emerson AMS 6500 Series | ⚠️ Software Compatible | The 6500 is the modern successor to the 6000. | Requires a new rack/backplane system. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Related to MMS6823? | Quick Check | Action |
| “OK” LED is Red/Off | Sensor or Cable Fault | ⚠️ Medium | Measure sensor supply (approx. -24V) at the driver. | Replace sensor/driver if power is missing. |
| HMI Value “Frozen” | Output Loop Break | ✅ High | Measure mA output at the module terminals. | If 0mA despite “OK” LED, replace module. |
| Erratic Values at Low Speed | Gap Adjustment | ❌ Low | Check sensor-to-shaft gap (should be approx. 1.0 – 2.0mm). | Adjust sensor position physically. |
| “Config Error” on Boot | Memory Corruption | ✅ High | Attempt to re-download config via RS-232. | If download fails, internal EEPROM is faulty. |
| Intermittent Trips | Ground Loop | ✅ High | Verify shield is grounded at the rack end ONLY. | Clean backplane contacts with contact cleaner. |
❗ Pro-Tip: The “Warming” Secret
If you install a new MMS6823 and the values seem to drift for the first 30 minutes, don’t panic. These precision analog cards need about 15-20 minutes to reach thermal equilibrium inside the rack. I always recommend letting the module “soak” in the powered rack before you perform your final zero-calibration.
