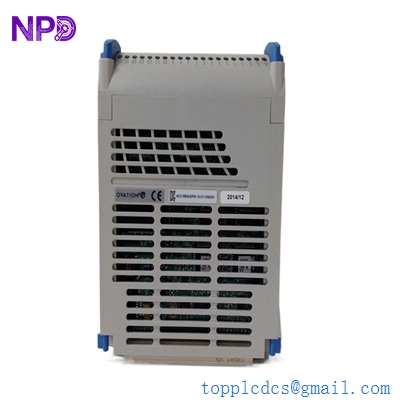

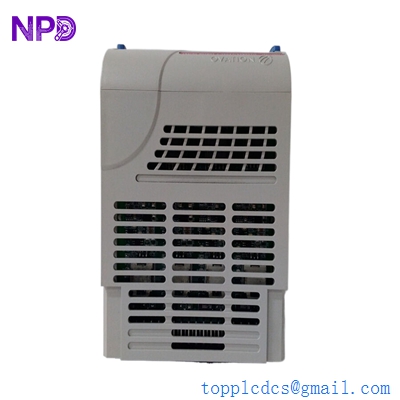

Emerson OVATION 1C31129G03 Analog Input Module

Description

Product Core Brief

• Model: OVATION 1C31129G03

• Brand: Emerson (Ovation platform)

• Series: Ovation Distributed Control System

• Core Function: Acquires field analog signals for Ovation controllers

• Type: Analog Input (AI) I/O Module

• Key Specs: 24 V DC backplane power Analog current/voltage inputs Ovation local I/O bus

OVATION 1C31129G03

Key Technical Specifications

• Input Signal Types: 4–20 mA and voltage (configured in system database)

• Number of Channels: 8 analog input channels (typical configuration)

• Input Impedance: ≥250 Ω for current inputs

• A/D Resolution: 12-bit conversion

• Scan Update Rate: Determined by Ovation controller task scan

• Backplane Power: 24 V DC supplied by Ovation I/O base

• Isolation: Group isolation between field and system

• Operating Temperature: 32°F to 140°F (0°C to 60°C)

• Mounting Method: Ovation I/O rack, keyed slot

• Hot Swap Capability: Supported when system is configured for online replacement

Application Scenarios & Pain Points

Here’s the real problem this module addresses.
In power and utility plants, Ovation systems often run unchanged for 10–20 years. The control logic is stable, but I/O hardware ages. When an analog input module starts drifting or failing self-tests, the entire loop becomes unreliable. Waiting weeks for factory delivery is rarely an option during a maintenance outage.

Typical application scenarios:

1. Thermal Power Plants – Boiler and Balance-of-Plant Control
   Used for pressure, flow, and temperature transmitters where signal stability matters more than speed.

2. Combined Cycle Plants – Auxiliary Systems
   Oil systems, cooling water, and chemical dosing rely heavily on analog inputs. A single failed card can force manual operation.

3. Water and Wastewater Facilities – Central DCS
   pH, level, turbidity, and conductivity signals terminate on AI modules like this one. Downtime windows are short.

4. Legacy Ovation System Maintenance
   Plants that plan to keep the existing DCS for several more years typically replace modules one-for-one, not upgrade platforms.

A realistic field example:
At a utility plant during a scheduled outage, one analog input channel showed unstable readings even after loop checks. Swapping transmitters didn’t help. The root cause was internal A/D drift on the AI module. Replacing the 1C31129G03 restored stable readings immediately, with no logic changes and no rewiring. The entire job took under 30 minutes.

Compatible Replacement Models

Straight talk: there is no true cross-platform drop-in replacement for this module.

Replacement options explained:

⚠️ Limited Direct Replacement

• Other Ovation AI modules from the same I/O family and generation

  • Conditions:

    • Same signal types (current vs voltage)

    • Firmware revision compatible with the installed controller

  • Best practice:

    • Record the firmware revision from the original module label or system diagnostics before ordering

⚠️ Software-Compatible Alternatives

• Newer-generation Ovation analog input modules

  • Impact:

    • Controller configuration must be updated

    • System download usually required

  • Typical effort:

    • Half a day to one full day, depending on system size

❌ Not Recommended

• Any non-Ovation I/O solution

  • Why:

    • Different backplane and protocol

    • Requires gateways, reconfiguration, and logic changes

    • Risk and cost outweigh benefits for maintenance replacements

Troubleshooting Quick Reference

Rule of thumb from the field:

• One bad channel usually points to the module.

• All bad channels usually point to power or configuration.

• If replacement fixes it immediately, retire the old card and don’t put it back in service.
