Description
Product Core Brief

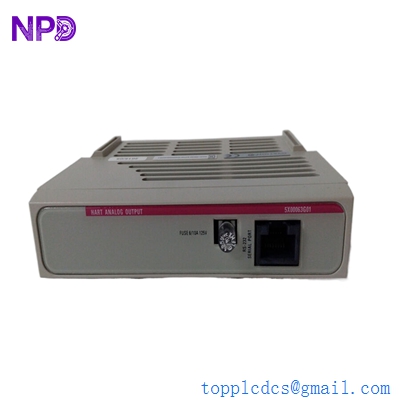

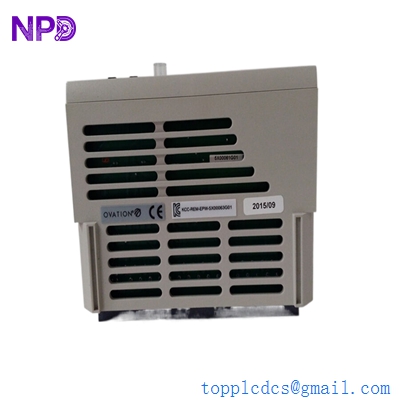

- Model: Emerson Ovation 5X00063G01
- Brand: Emerson (formerly Westinghouse)
- Series: Ovation Distributed Control System (DCS)
- Core Function: High-density Analog Input (AI) processing for field instrumentation.
- Type: I/O Module (Analog Input)
- Key Specs: 8-Channel 13-Bit Resolution 0-20mA / 4-20mA / 0-5V / 1-5V
5X00062G01 5X00063G01
Typical Application Scenarios:
- Thermal Power Plants – Boiler Control Monitoring steam drum levels and feedwater flow where 4-20mA signals must be digitized with high accuracy for PID loop stability.
- Combined Cycle Gas Turbines (CCGT) Collecting exhaust gas temperatures (via transmitters) to calculate average blade path temperature for combustion tuning.
- Water/Wastewater SCADA Integrating remote lift station levels into a centralized Ovation network over long-distance fiber links.
- Balance of Plant (BOP) Monitoring auxiliary cooling water systems and lubrication oil pressures across the facility.
Case Study: The “Hunting” Feedwater Valve
Background: A coal-fired unit in the Midwest was experiencing erratic oscillations in its feedwater control valve, causing boiler level instability. The Problem: The existing 5X00063G01 module had a failing A/D converter on Channel 3. It wasn’t “dead,” but it was introducing 0.5% signal drift every few minutes. The DCS was reacting to the drift, causing the valve to hunt. Solution: We provided a verified 5X00063G01 from our stock. Because Ovation modules are designed for hot-swapping into the electronics base, the swap took less than 30 seconds. Result: The signal stabilized immediately. The “Quality” flag in the Ovation Graphics turned from yellow back to green, and the feedwater loop returned to steady-state auto-control.
Compatible Replacement Models
Ovation hardware has several “G” (Group) suffixes. You have to be careful here; they aren’t always interchangeable.
| Original Model | Replacement Model | Compatibility Level | Key Differences | Change Required |
| 5X00063G01 | 1C31132G01 | ✅ Direct | Newer part numbering, same electronics. | None. Plug and play. |
| 5X00063G01 | 5X00063G02 | ⚠️ Software | Different input ranges or filtering. | Check I/O configuration in Developer Studio. |
| 5X00063G01 | 5X00070G01 | ❌ Incompatible | 14-Bit or RTD specific module. | Hardware mismatch error. |
Integration Note: When replacing a module, check the Electronics Base (Backplane). If the pins on the base are bent or show signs of arcing, even a brand-new 5X00063G01 will fail within weeks. I always recommend using a can of compressed air to clear the base connector before seating the new card.
Troubleshooting Quick Reference
| Symptom | Potential Cause | Part Correlation | Quick Check | Action |
| “OK” LED Off | Internal Hardware Fault | ✅ High | Re-seat the module in the base. | If LED stays off, replace module. |
| “EXT” LED Off | Field Power Missing | ❌ Low | Check 24VDC at the terminal block. | Inspect field power fuses. |
| Channel Quality “BAD” | Open Loop / Wire Break | ⚠️ Medium | Measure mA loop with a Fluke 789. | If loop is 0mA, check field wiring. |
| Input Value at Max | Short Circuit | ⚠️ Medium | Check for short at the terminal header. | Clear wiring short. |
| Module “Not Loaded” | Software Mismatch | ✅ High | Check “I/O Status” in Ovation control tool. | Verify G-number in configuration. |
The “Old Engineer” Advice: “Here is a trick: If you are getting erratic readings, check the shield grounding. Ovation AI modules like the 5X00063G01 are sensitive to common-mode noise. Ensure your instrument cable shields are grounded at the DCS cabinet end only. If you have a ground loop, this module will give you ‘jumpy’ data that looks like a hardware failure but is actually just a wiring headache.”
