Description
The Emerson/Triconex SE3008 (also identified by part number KJ2005X1-SQ1 and 12P6383X032) is a high-performance, safety-critical Main Processor Module designed for the Triconex Tricon Fault-Tolerant Control System. This module serves as the central computing hub for the Tricon controller, executing safety logic, managing I/O communication, and performing continuous system diagnostics. Built for Triple Modular Redundant (TMR) architectures, the SE3008 ensures uninterrupted operation and “fail-safe” functionality, making it the industry standard for high-risk applications in oil, gas, chemical, and nuclear sectors.
Technical Specifications and Datasheet
- Manufacturer: Emerson / Triconex
- Model Designation: SE3008
- Part Numbers: KJ2005X1-SQ1 / 12P6383X032
- Product Type: Main Processor Module (TMR)
- Dimensions: 32.0 cm x 26.5 cm x 3.5 cm (12.60 in x 10.43 in x 1.38 in)
- Weight: 1.15 kg (2.54 lbs)
- Country of Origin: USA
- Safety Integrity Level: SIL 3 (IEC 61508)
- Processor Architecture: Triple Modular Redundant (TMR) high-speed logic processor
- Communication: Proprietary TriBus communication for redundant module synchronization
- Operating Temperature: 0°C to +60°C (32°F to +140°F)
- Diagnostics: Comprehensive onboard fault detection, including memory parity checks and bus monitoring

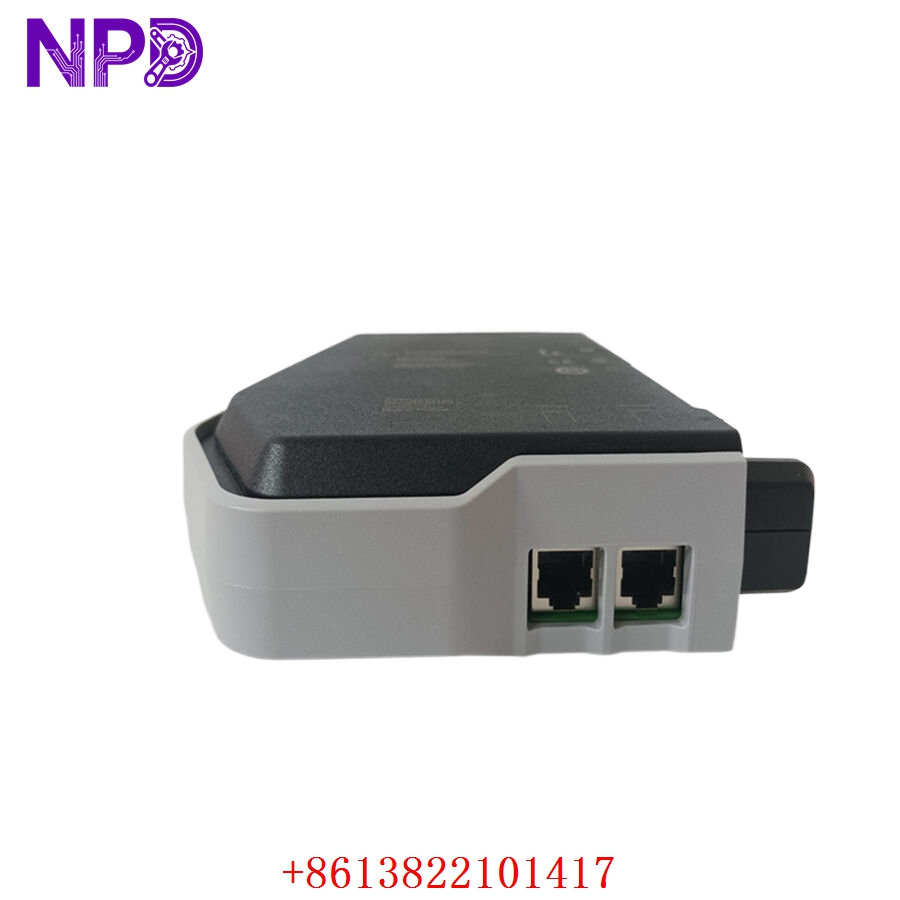

EMERSON SE3008 KJ2005X1-SQ1 12P6383X032

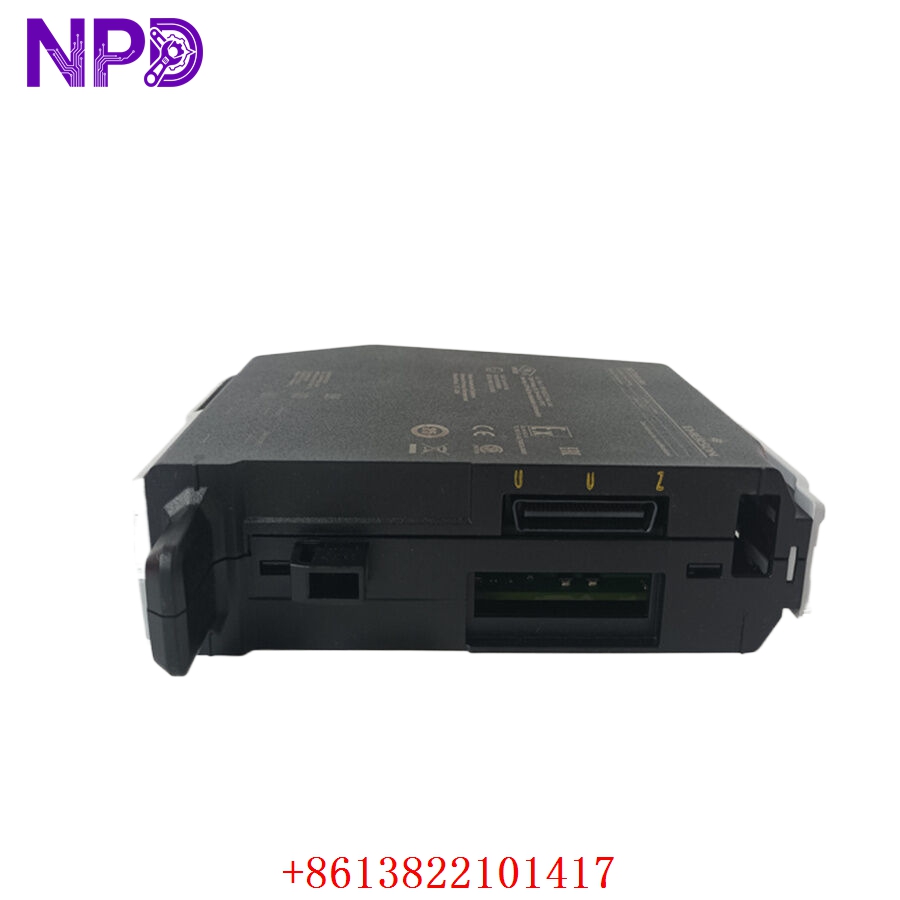

EMERSON SE3008 KJ2005X1-SQ1 12P6383X032
EMERSON SE3008 KJ2005X1-SQ1 12P6383X032
Application Fields
The SE3008 is utilized in applications where downtime is not an option and safety is the priority:
- Emergency Shutdown Systems (ESD): Implementing logic for rapid process isolation during hazardous conditions.
- Fire and Gas (F&G) Systems: Monitoring high-sensitivity sensor arrays and initiating fire suppression protocols.
- Burner Management Systems (BMS): Controlling startup, operation, and shutdown sequences for industrial boilers and furnaces.
- Turbomachinery Control: Overseeing speed regulation and vibration protection for critical rotating equipment.
Product User Instructions
- TMR Configuration: Because this module operates in a TMR architecture, it must be installed as part of a three-module set. Ensure all three slots are populated with matching hardware revisions to allow the voting logic to function correctly.
- Hot-Swapping Procedures: The SE3008 is designed for hot-swapping. Use the system software to “disable” the specific module slot before physical removal, ensuring the other two redundant processors maintain control without triggering a system trip.
- TriBus Synchronization: Verify that the TriBus interconnect cables are securely seated between the processor slots. These cables allow the three processors to compare data and vote on outputs, which is vital for fault-tolerant operation.
- Firmware Consistency: Use the Triconex engineering software (e.g., Tristation 1131) to confirm that all processor modules are running identical firmware versions. Mismatched firmware can cause communication faults or “Invalid Configuration” errors.
Frequently Asked Questions (Q&A)
Q1: What is the primary benefit of the TMR architecture used by this module? A1: Triple Modular Redundancy allows the controller to detect, isolate, and correct faults in real-time. If one processor fails or deviates from the other two, the system “votes” to ignore the faulty signal, allowing the plant to continue running safely without interruption.
Q2: Can I install a single SE3008 module to save costs in a non-critical application? A2: No. The Triconex system is inherently designed for redundancy. Running a single module removes the fault-tolerant capabilities, compromises safety integrity, and is generally not supported by the manufacturer for active safety loops.
Q3: How do I read the fault status on the SE3008? A3: The faceplate includes a series of diagnostic LEDs (System, Active, Ready, Fault). A steady “Fault” LED indicates a self-detected internal error. For detailed information, use the engineering workstation to check the “System Log,” which provides specific error codes regarding CPU health or bus communication issues.
