Description
The Emerson SLS1508 (Part Number: KJ2201X1-BA1 / 12P3162X212) is a high-integrity Safety Instrumented System (SIS) Logic Solver for the DeltaV platform. It is designed to execute safety logic for critical process loops, providing SIL 3 (Safety Integrity Level 3) capabilities in a redundant configuration. This module is the “intelligence” of the DeltaV SIS system, monitoring safety sensors and controlling final elements to prevent hazardous events.
Product Parameters (Datasheet)
- Model Number: SLS1508
- Part Number: KJ2201X1-BA1 / 12P3162X212
- Series: DeltaV SIS (Safety Instrumented System)
- I/O Capacity: 16 Configurable Channels
- Input Types: 24V DC Discrete, 4–20 mA Analog (HART compatible)
- Output Types: 24V DC Discrete (High-side), 4–20 mA Analog (HART)
- Redundancy: Supports 1:1 hardware redundancy
- Safety Rating: IEC 61508 SIL 3 (when used in redundant pairs)
- Power Requirements: 24V DC, 500 mA (Local bus power)
- Operating Temp: -40°C to +70°C (-40°F to +158°F)

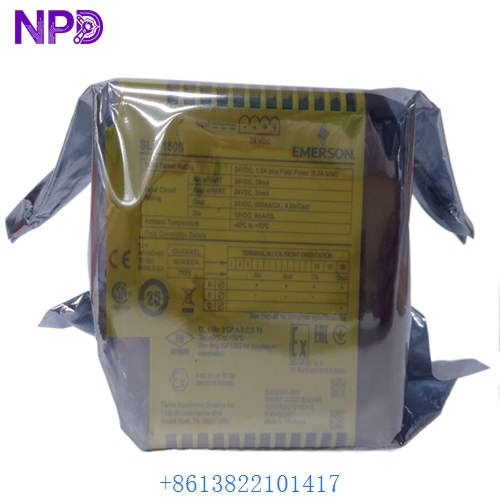

EMERSON SLS1508 KJ2201X1-BA1 12P3162X212

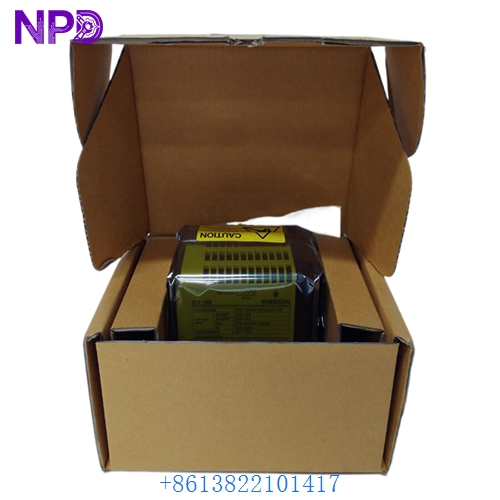

EMERSON SLS1508 KJ2201X1-BA1 12P3162X212
EMERSON SLS1508 KJ2201X1-BA1 12P3162X212
Country of Origin
This safety-critical module is engineered and manufactured by Emerson Process Management in the USA, specifically for the global DeltaV automation platform.
Application Fields
The SLS1508 is deployed in high-risk industrial environments where failure is not an option:
- Emergency Shutdown (ESD): Automatically halting process flows during overpressure or leak detection.
- Fire & Gas Systems (FGS): Monitoring flame and gas sensors to trigger suppression systems.
- Burner Management Systems (BMS): Ensuring safe ignition and flame monitoring for industrial boilers and furnaces.
- High-Integrity Pressure Protection (HIPPS): Acting as a final layer of defense against pipeline overpressurization.
- Chemical Reactors: Managing critical cooling and pressure relief logic for exothermic reactions.
Product Usage Instructions
- Installation: Snap the SLS1508 onto a DeltaV SIS 2-wide carrier. Ensure the module is firmly seated into the backplane connectors.
- Redundancy: For SIL 3 applications, two SLS1508 modules must be installed in a redundant pair on the carrier. They will automatically synchronize their safety logic.
- Carrier Wiring: Land your field signals on the mass termination blocks or individual screw terminals associated with the SLS carrier.
- Software Configuration: Use DeltaV Explorer and SIS Explorer to define the safety loops. Logic is typically developed using Cause & Effect Matrices (CEM) or Function Block Diagrams (FBD).
- Proof Testing: Perform regular proof tests as defined by your Safety Requirement Specification (SRS) to ensure the logic solver and field elements respond correctly to fault conditions.
Product Technical Description
The SLS1508 is fundamentally different from a standard PLC or DCS controller. It utilizes a “Safety-by-Design” architecture with internal hardware voting. Each SLS1508 contains redundant processors that cross-check every calculation.
Technically, the module supports HART-pass-through, allowing for the digital diagnostics of safety-critical valves and sensors without interrupting the safety loop. The 12P3162X212 board revision includes advanced diagnostics that monitor for “stuck-at” faults in the output circuitry and verify the integrity of the internal memory every few milliseconds. This ensures that the module either performs its safety function or fails in a predictable, safe state.
Q&A (Common Questions)
- Q: Can the SLS1508 be used for non-safety control?
- A: While technically possible, it is not cost-effective. The SLS1508 is specifically designed for Safety Instrumented Functions (SIFs) and requires specialized safety licenses within the DeltaV software.
- Q: What is the significance of the KJ2201X1-BA1 part number?
- A: This indicates the hardware model and revision level. The “BA1” typically refers to the physical assembly version, including the ruggedized housing.
- Q: Do I need a specific terminal block for this module?
- A: Yes, the SLS1508 must be used with a compatible SIS terminal block (such as the 16-pin screw terminal or mass termination versions).
- Q: Is this module compatible with DeltaV v14 or v15?
- A: Yes, the SLS1508 series is a staple of the DeltaV SIS architecture and is supported across modern versions of the software.
Similar Model Recommendations
- Emerson CHARMS (SIS): For distributed safety I/O configurations.
- Emerson KJ2201X1-HA1: Related hardware in the SIS family.
- Emerson CSLS: Compact Safety Logic Solver for smaller applications.
- Emerson VS6001: Virtual Simulation software for testing SLS logic.
- Emerson 12P3162X162: Earlier revision of the SLS logic board.
For technical documentation or a formal quote on the Emerson SLS1508, please contact our DeltaV SIS technical team.
