Description
- Model: DeltaV VE3007
- Part Numbers: 12P4375X032 / KJ2005X1-BA1
- Brand: Emerson (Fisher-Rosemount)
- Series: DeltaV Series 2
- Core Function: MX Controller (Main Processing Unit)
- Condition: Brand New Surplus (Original New), Non-refurbished
- Type: DCS Central Controller
- Key Specs: Supports up to 64 I/O cards Redundancy capable High-speed control
- Processor Type: MX Controller (High performance for complex control loops)
- I/O Capacity: Supports up to 64 DeltaV I/O modules
- Communication Ports:
- 2 x Redundant Ethernet Ports (Control Network)
- 1 x Local I/O Bus interface
- Memory: High-speed RAM for logic execution and non-volatile Flash for configuration
- Redundancy: Supports 1:1 Hot Standby Redundancy
- Mounting: Horizontal or Vertical Carrier (Series 2)
- Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
- Relative Humidity: 5% to 95% (Non-condensing)
- Compliance: ATEX, UL, CSA (Class 1 Div 2)

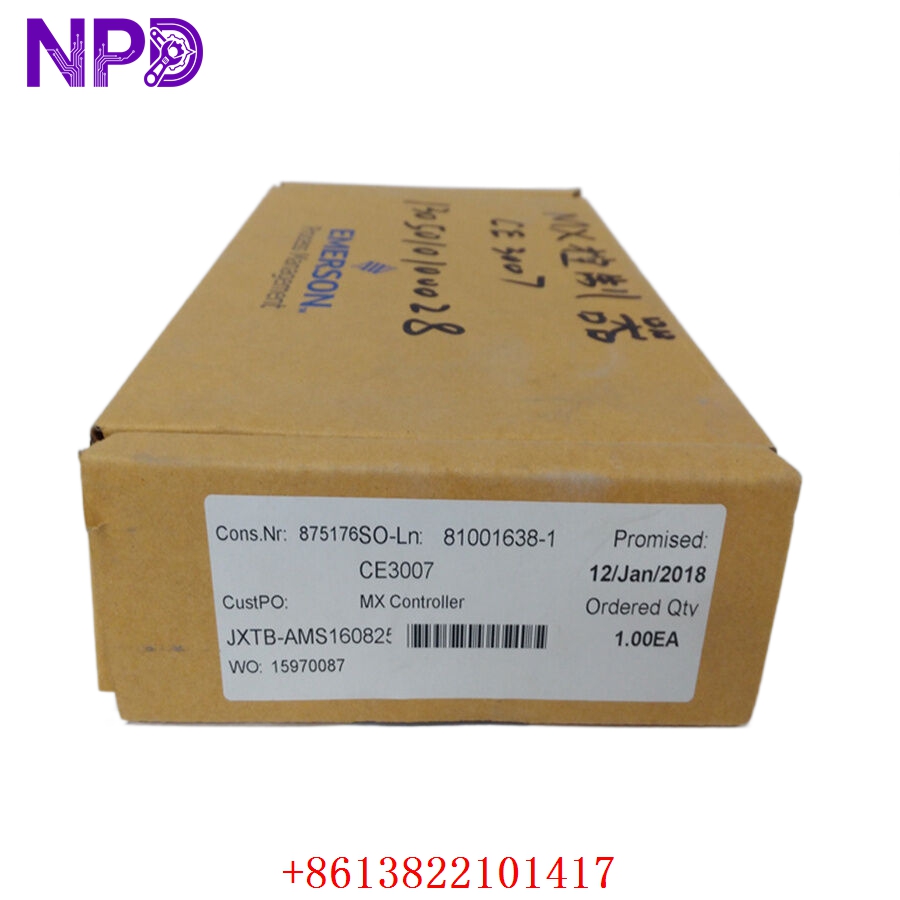

EMERSON VE3007 12P4375X032 KJ2005X1-BA1

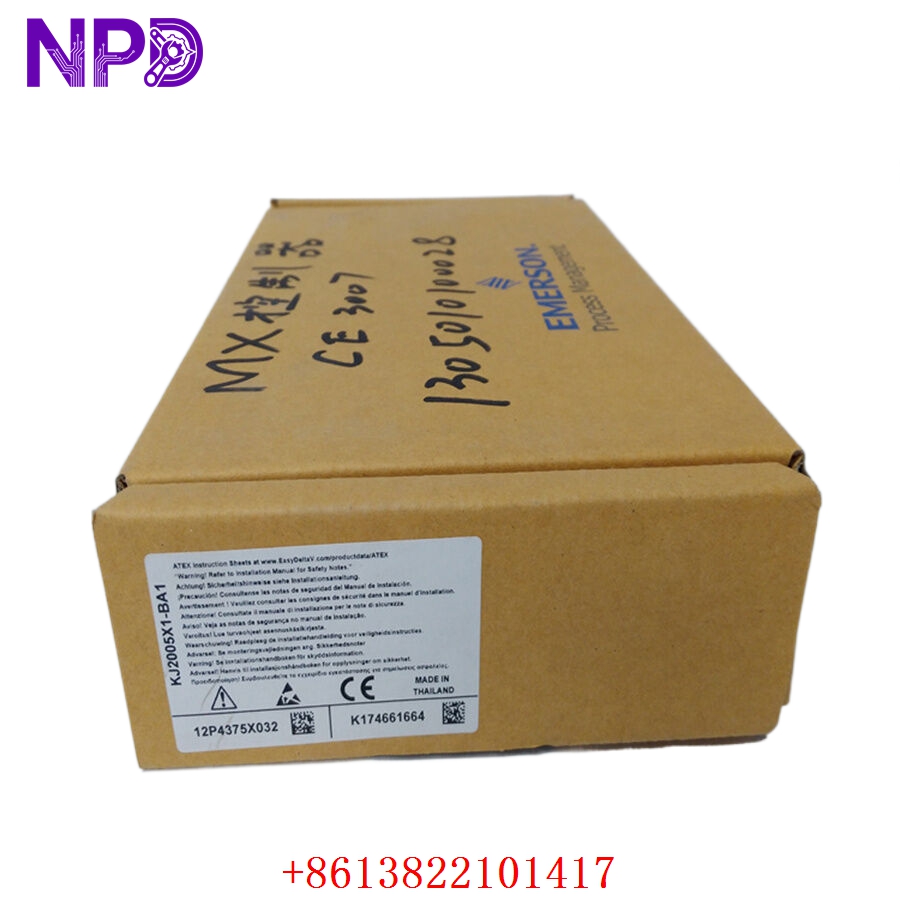

EMERSON VE3007 12P4375X032 KJ2005X1-BA1
EMERSON VE3007 12P4375X032 KJ2005X1-BA1
Installation & Configuration Guide
Phase 1: Preparation (15 Minutes)
⚠️ Safety First:
- The VE3007 is the brain of the DeltaV system. Ensure you have a current “Download” of the controller configuration in DeltaV Explorer before starting.
- Verify that the Control Network (Primary and Secondary) is healthy.
- Confirm that the 24 V DC power supply to the carrier is within the ±10% tolerance.
Tools & Protection:
- ESD wrist strap (Essential to protect the MX processor).
- Laptop with DeltaV Explorer and Control Studio access.
Phase 2: Removal (5 Minutes)
- Redundancy Check: If the controller is part of a redundant pair, verify that the partner is “Standby” and healthy before removing the active unit.
- Unlocking: Flip the top and bottom ejector levers on the KJ2005X1-BA1 module.
- Extraction: Slide the controller out of the carrier.
- Dust Check: Inspect the carrier pins for dust or corrosion. Use a can of compressed air if necessary.
Phase 3: Installation (15 Minutes)
- Alignment: Align the VE3007 with the carrier slot (Slot 1 or 2).
- Insertion: Slide the module in firmly until the levers begin to move.
- Seating: Close the levers to lock the module in place. The “Power” LED should light up immediately.
Phase 4: Commissioning (30 Minutes)
- DeltaV Explorer: Open DeltaV Explorer. The new controller should appear as “Decommissioned” or “New Hardware Found.”
- Commissioning: Right-click the controller and select “Commission.” You will need to match the specific MAC address printed on the KJ2005X1-BA1 label.
- Download: Once commissioned, perform a full download to the controller.
- Verification: Check the diagnostics. The controller should transition to “Active” (or “Standby” if it’s the secondary unit) with no errors.
Customer Cases & Industry Applications
Case 1: Restoring a Petrochemical Control Loop
Situation: A refinery in Southeast Asia experienced a sudden failure of an MX controller. Several critical distillation columns lost their automated control, forcing operators into manual mode. Task: Immediate replacement of the 12P4375X032 to restore plant safety and efficiency. Action: We shipped an Original New VE3007 via air express within 4 hours of the order. Result: The plant restored full automation in under 24 hours. The customer chose New Surplus to ensure the longest possible life for the replacement part.
Case 2: Pharmaceutical Batch System Upgrade
Situation: A pharma plant was expanding its I/O count and needed additional processing power. Their older M-Series controllers were nearing capacity. Task: Upgrade to the MX Controller (VE3007) for higher scan speeds and more I/O headroom. Action: The customer purchased a redundant pair of KJ2005X1-BA1 modules to serve as the new core for their production line. Result: The upgrade increased their data processing speed by 40%, allowing for more precise temperature control during the batching process.
Frequently Asked Questions (FAQ)
Q: What is the difference between VE3007 and VE3006? A: The VE3007 (MX) has significantly more memory and processing power than the VE3006 (MQ). The MX is designed for systems with a higher density of I/O or complex math/control logic.
Q: Is KJ2005X1-BA1 the same as 12P4375X032? A: Yes. VE3007 is the system model number, KJ2005X1-BA1 is the assembly part number found on the module label, and 12P4375X032 is the Emerson manufacturing part number. They all refer to the same physical MX controller module.
Q: Does it come with the battery? A: Yes, the VE3007 includes a lithium battery for memory backup. For New Surplus units, we verify the battery voltage before shipping to ensure it is ready for service.
Q: Can I hot-swap this controller? A: Yes, DeltaV hardware is designed for hot-swapping. However, in a non-redundant system, pulling the controller will stop the process. In a redundant system, pulling one unit will trigger an automatic switchover to the partner.
Q: Why buy “New Surplus” from us? A: Emerson lead times for legacy DeltaV Series 2 parts can be 12-20 weeks. We provide Original New units from our local stock, allowing for immediate delivery and a 1-year warranty, which is often faster and more cost-effective than OEM channels.
