Description
Product Core Brief
- Model: EPRO CON021 9200-00006N
- Brand: Emerson | EPRO (Germany)
- Series: MMS6000 Machinery Monitoring System
- Core Function: Converts eddy current probe signal to 4–20 mA
- Type: Signal Converter Module (Proximity / Displacement)
- Key Specs: 24 V DC supply 4–20 mA output Eddy current probe input

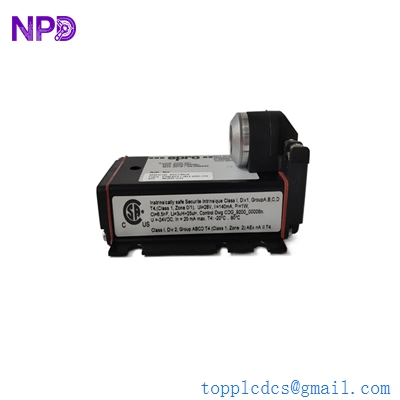

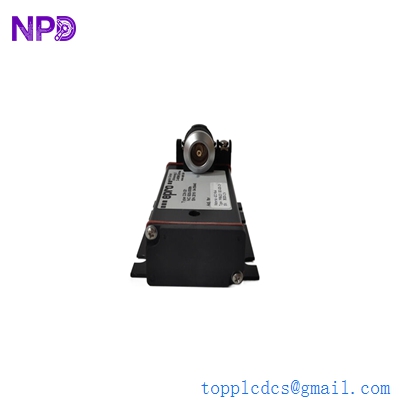

EPRO CON021 9200-00006N
Key Technical Specifications
- Input Type: Eddy current proximity probe (non-contact displacement)
- Supply Voltage: 24 V DC (18–30 V DC range)
- Power Consumption: < 3 W typical
- Output Signal: 4–20 mA linearized output
- Frequency Response: 0–10 kHz (probe dependent)
- Measurement Range: Configurable per probe type (typ. 0–2 mm)
- Linearity: ≤ ±1% full scale
- Operating Temperature: -20 °C to +70 °C
- Mounting: 35 mm DIN rail
- Isolation: Galvanic isolation between input and output
- Protection Rating: IP20 (cabinet installation)
Application Scenarios & Engineering Pain Points
In large steam turbines and centrifugal compressors, shaft displacement and radial vibration are not “nice-to-have” parameters. They are protection signals. If the signal conditioning stage drifts or becomes unstable, the protection logic may trigger false trips. I have personally seen a 1.8 mA output deviation shut down a turbine because the alarm threshold was set tight.
The CON021 9200-00006N sits right between the eddy current probe and the control system. It converts the raw high-frequency probe signal into a stable 4–20 mA output that a DCS or protection PLC can reliably interpret. If this module fails, the probe might still be healthy — but the control system becomes blind.
Typical Applications
- Power Generation – Steam Turbine Axial Displacement
Provides stable shaft position feedback to turbine protection systems. - Oil & Gas – Centrifugal Compressor Monitoring
Interfaces proximity probes with anti-surge and vibration protection systems. - Gas Turbine Packages – Continuous Shaft Monitoring
Integrated within MMS6000 racks for real-time displacement trending. - Metallurgy – High-Speed Blower Systems
Ensures stable vibration feedback in high-RPM rotating equipment.
Case Example: 300 MW Turbine Unit Incident
Background:
A 300 MW coal-fired unit reported fluctuating axial displacement readings during base-load operation. The proximity probe output tested normal at the sensor level.
Problem:
The 4–20 mA signal entering the DCS was unstable, oscillating ±1.5 mA. The original module was declared obsolete by the manufacturer with a 5-week lead time.
Solution:
A replacement CON021 9200-00006N was supplied from available stock. Prior to shipment, it underwent full bench testing under simulated probe input conditions. The module was installed within 48 hours.
Result:
- Stable displacement signal restored
- No forced outage required
- Customer secured additional spare units for critical stock

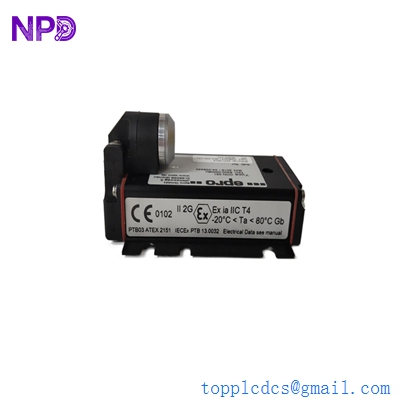

EPRO CON021 9200-00006N
Compatible Replacement Models
⚠️ Software Compatible (Parameter Adjustment Required)
- EPRO CON041
- Difference: Wider frequency support
- Action Required: Output scaling recalibration
- Estimated Commissioning Time: 0.5–1 day
❌ Hardware Modification Required
- EPRO PR6423 + MMS6110 combination
- Reason: Different monitoring architecture
- Impact: Rack and configuration changes required
- Recommendation: Consider only during system migration
Note:
There is no confirmed direct drop-in replacement for CON021 9200-00006N within the MMS6000 platform. If the existing system remains MMS6000-based, retaining the same model is strongly recommended.
Troubleshooting Quick Reference
| Symptom | Likely Cause | Module Relevance | Quick Check | Recommendation |
|---|---|---|---|---|
| No LED indication | Power supply failure | ❌ Low | Measure 24 V DC at input terminals | Check power module/fuse |
| Output fixed at 4 mA | Probe open circuit | ⚠️ Medium | Measure probe impedance | Inspect probe cable |
| Output fluctuates ±2 mA | Internal signal drift | ✅ High | Inject simulated input signal | Replace module |
| DCS shows over-range | Incorrect scaling | ⚠️ Medium | Verify calibration settings | Reconfigure range |
| Intermittent alarms | Shield grounding issue | ⚠️ Medium | Inspect single-point grounding | Correct grounding method |
Field Experience Insight:
