Description

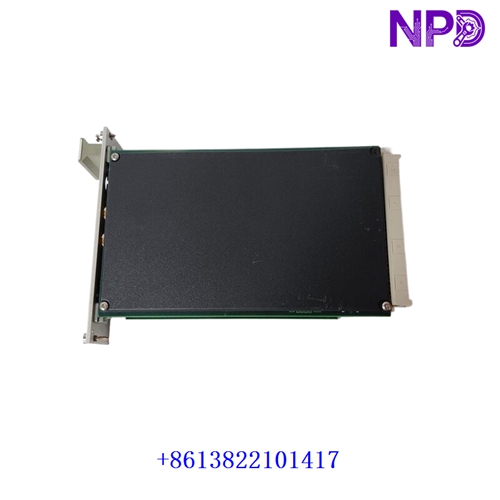

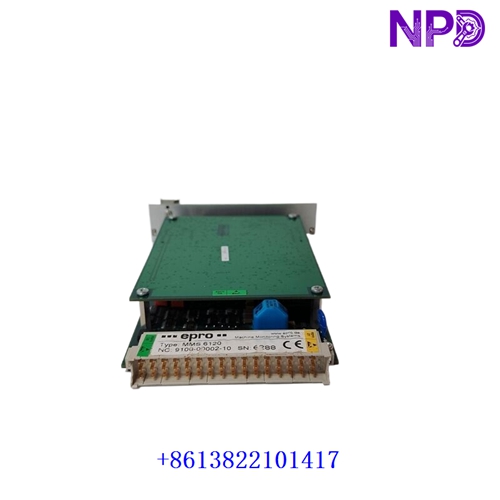

The EPRO MMS6120 (Part Number: 9100-00002C-08) is a specialized dual-channel signal processor and vibration monitoring module designed for the MMS 6000 machinery protection system. It is engineered for continuous measurement of shaft vibration, radial displacement, and axial position on critical rotating machinery such as large steam turbines, compressors, and pumps.
- Manufacturer: EPRO (a brand of Emerson / Prüftechnik)
- Base Model: MMS6120
- Part Number / Order Code: 9100-00002C-08
- Product Series: MMS 6000 Machinery Protection System
- Product Type: Dual-Channel Displacement / Vibration Monitor Module
- Input Signals: Compatible with non-contacting eddy current displacement sensors (proximitors)
- Mounting Format: Standard rack-mount plug-in card for 19-inch EPRO system chassis
- Approximate Weight: ~0.6 kg
Inspection & Installation Guidelines
- Packaging Check: Unpack the module carefully on an ESD-safe surface and ensure that protective anti-static packaging is undamaged.
- Part Verification: Confirm that part number
9100-00002C-08matches your machinery protection system configuration sheets and control room blueprints. - Visual Inspection: Check the front-panel connectors, LED displays, backplane pins, and housing integrity for any transit wear, dust, or damage.
- Secure Seating: Guide the card evenly into its designated rack slot and push firmly to engage the backplane connector before tightening retaining screws.
Maintenance Recommendations
- Dust Control: Keep protection system cabinets clean and free of particulate buildup using dry, oil-free compressed air during scheduled outages.
- Terminal & Wiring Audit: Periodically check rear terminal blocks and sensor signal cables to prevent vibration-induced loosening in high-machinery environments.
- Thermal Monitoring: Ensure that control room or rack enclosure ventilation maintains ambient operating temperatures within safe thresholds.
- Functional Testing: Regularly verify alarm and trip relay settings, sensor calibration, and DC gap voltages using system diagnostic tools.
Troubleshooting & Common Faults
- Sensor Gap / OK Fault: Check the signal cable connection between the field probe and the module, and verify the correct probe gap voltage (-10 V DC nominal).
- Module Not Initialized / Powered: Verify that the system rack power supplies are stable and that the module is fully seated into the backplane.
- Erratic Readings: Inspect sensor cabling for proper shielding, grounding, and physical damage from nearby machinery.
Safety & Handling Precautions
- Power Isolation: Always disconnect system power or bypass safety trip loops before removing or servicing machinery protection modules to prevent accidental turbine trips.
- Qualified Personnel: Installation, calibration, and trip loop testing must be performed exclusively by certified instrumentation and control (I&C) engineers.
- ESD Protection: Always wear a properly grounded anti-static wrist strap when handling the bare circuit board to prevent electrostatic discharge damage.
Frequently Asked Questions (Q&A)
- Q: What is the primary function of the EPRO MMS6120 module?
- A: It measures radial vibration and axial displacement on rotating machinery using eddy current probes, providing essential protection, alarm, and trip signals.
- Q: What system is this module designed to fit into?
- A: It is built for integration into the EPRO MMS 6000 modular machinery protection and condition monitoring rack system.
